BASLER 高速視覺工業檢測相機
ace Classic-GigE 系列工業相機
ace Classic-GigE 系列工業相機

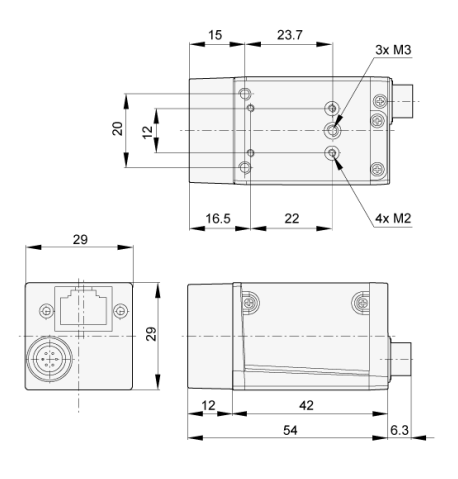

ace Classic系列相機已突破性地採用29 mm x 29 mm規格，與模擬相機的大小相似。如今，這種類似“方糖大小”的迷你相機規格已獲得了市場的廣泛認可。
- 芯片選擇豐富，包括CMOSIS、e2V以及ON Semiconductor（MT產品線）的CMOS芯片，以及來自Sony的CCD芯片
- 豐富的介面選擇：GigE、USB 3.0和CameraLink
- 性價比出眾
| 產品型號 | 解析度 | 取像速度FPS | 像素尺寸(µm) | Sensor Type | Sensor Size | 快門 | Mount |
|---|---|---|---|---|---|---|---|
| ICDA-acA1280-60gm/gc | 1280x1024 | 60 | 5.3 x 5.3 | EV76C560 | 1/1.8” | Progressive Scan CMOS, Rolling Shutter | C/CS |
| ICDA-acA1300-60gm/gc | 1280x1024 | 60 | 5.3 x 5.3 | EV76C560 | 1/1.8” | Progressive Scan CMOS, Switchable Shutter | C/CS |
| ICDA-acA1300-60gm NIR | 1280x1024 | 60 | 5.3 x 5.3 | EV76C661 | 1/1.8” | Progressive Scan CMOS, Switchable Shutter | C/CS |
| ICDA-acA1600-20/gc | 1628x1236 | 20 | 4.4 x 4.4 | ICX274 | 1/1.8” | Progressive Scan CCD, Global Shutter | C/CS |
| ICDA-acA1600-60gm/gc | 1600x1200 | 60 | 4.5 x 4.5 | EV76C570 | 1/1.8” | Progressive Scan CMOS, Switchable Shutter | C/CS |
| ICDA-acA1920-25gm/gc | 1920x1080 | 25 | 2.2 x 2.2 | MT9P031 | 1/3.7” | Progressive Scan CMOS, Rolling Shutter | C/CS |
| ICDA-acA2000-50gm/gc | 2048x1088 | 50 | 5.5 x 5.5 | CMV2000 | 2/3” | Progressive Scan CMOS, Global Shutter | C |
| ICDA-acA2040-25gm/gc | 2048x2048 | 25 | 5.5 x 5.5 | CMV4000 | 1” | Progressive Scan CMOS, Global Shutter | C |
| ICDA-acA2040-25gm NIR | 2048x2048 | 25 | 5.5 x 5.5 | CMV4000 | 1” | Progressive Scan CMOS, Global Shutter | C |
| ICDA-acA2500-14gm/gc | 2592x1944 | 14 | 2.2 x 2.2 | MT9P031 | 1/2.5” | Progressive Scan CMOS, Rolling Shutter | C/CS |
| ICDA-acA3800-10gm/gc | 3856x2764 | 10 | 1.67 x 1.67 | MT9J003 | 1/2.3” | Progressive Scan CMOS, Rolling Shutter | C |
