Schneider Optic
Xenon-Topaz Series
Xenon-Topaz Series
- 針對長工作距離進行了優化
- 1.2" (19.3mm) 最大傳感器尺寸 (TOPAZ 2.4/6.5: 1.1")
- C-Mount
- 6 focal lengths available: 6.5mm - 50mm
- 初始光圈 F2 - F2.8
>應用
- 交通
- 監視
- 遠距離成像
| 產品型號 | 倍率 | 焦距(mm) | F/# range | Max. sensor size (mm) |
鏡頭接口 | Filter Thread |
|---|---|---|---|---|---|---|

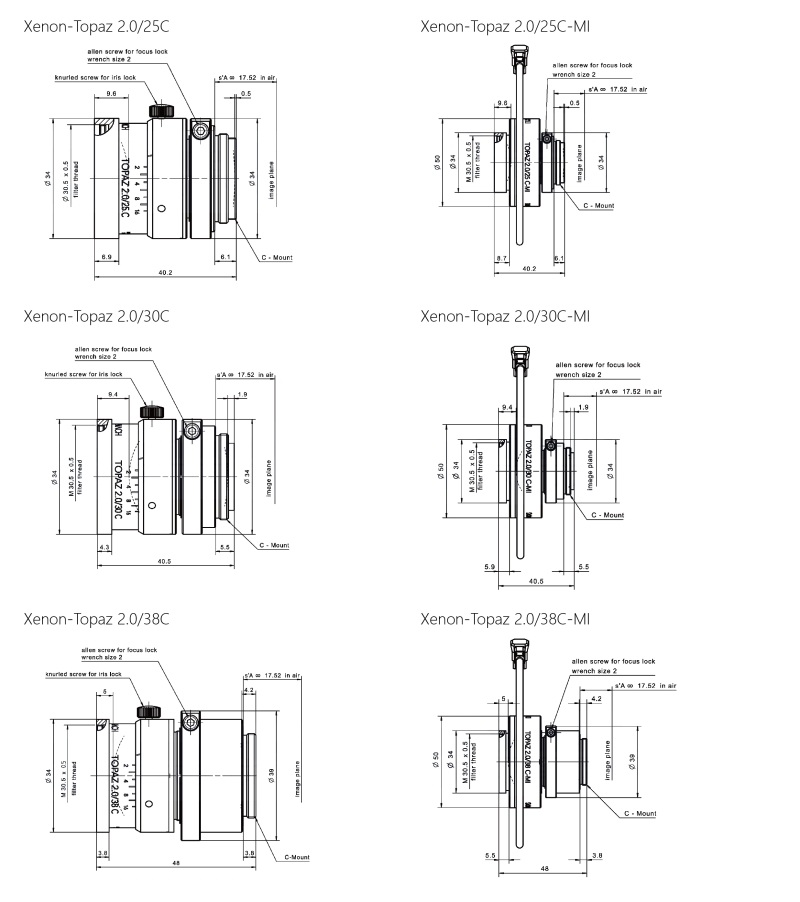

| Xenon-Topaz 2.0/25C | -0.1 | 25 | 2-16 | 19.3 | C | M30.5 x 0.5 |
| Xenon-Topaz 2.0/25C-MI | -0.1 | 25 | 2-16 | 19.3 | C | M30.5 x 0.5 |
| Xenon-Topaz 2.0/30C | -0.1 | 30 | 2-16 | 19.3 | C | M30.5 x 0.5 |
| Xenon-Topaz 2.0/30C-MI | -0.1 | 30 | 2-16 | 19.3 | C | M30.5 x 0.5 |
| Xenon-Topaz 2.0/38C | -0.1 | 38 | 2-16 | 19.3 | C | M30.5 x 0,5 |
| Xenon-Topaz 2.0/38C-MI | -0.1 | 38 | 2-16 | 19.3 | C | M30.5 x 0,5 |

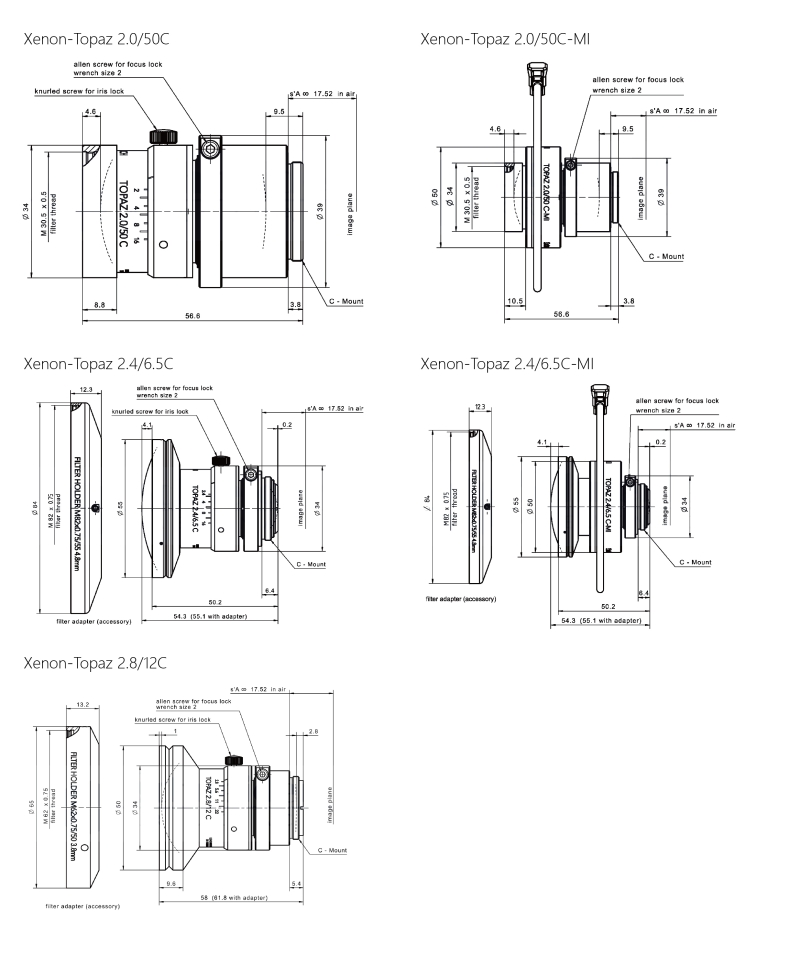

| Xenon-Topaz 2.0/50C | -0.1 | 50 | 2-16 | 19.3 | C | M30.5 x 0,5 |
| Xenon-Topaz 2.0/50C-MI | -0.1 | 50 | 2-16 | 19.3 | C | M30.5 x 0,5 |
| Xenon-Topaz 2.4/6.5C | -0.1 | 6.5 | 2.4-16 | 17.6 | C | M82 x 0.75 |
| Xenon-Topaz 2.4/6.5C-MI | -0.1 | 6.5 | 2.4-16 | 17.6 | C | M82 x 0.75 |
| Xenon-Topaz 2.8/12C | -0.02 | 12 | 2.8-22 | 19.3 | C | M62 x 0.75 |
