Schneider Optic
CITRINE Series
CITRINE Series
- 2/3" (11mm) 最大傳感器尺寸
- C-Mount
- 6 focal lengths: 4.8mm - 35mmgths: 28mm, 35mm
- 初始光圈：F1.4 - F1.9
- 提供加固版本和機動光圈
應用
- 2D 和 3D 量測
- 機器人視覺
- 工業自動化
- 交通和監控
| 產品型號 | 倍率 | WD(mm) | 焦距(mm) | F/# range | Max. sensor size (mm) |
鏡頭接口 | Filter Thread |
|---|---|---|---|---|---|---|---|

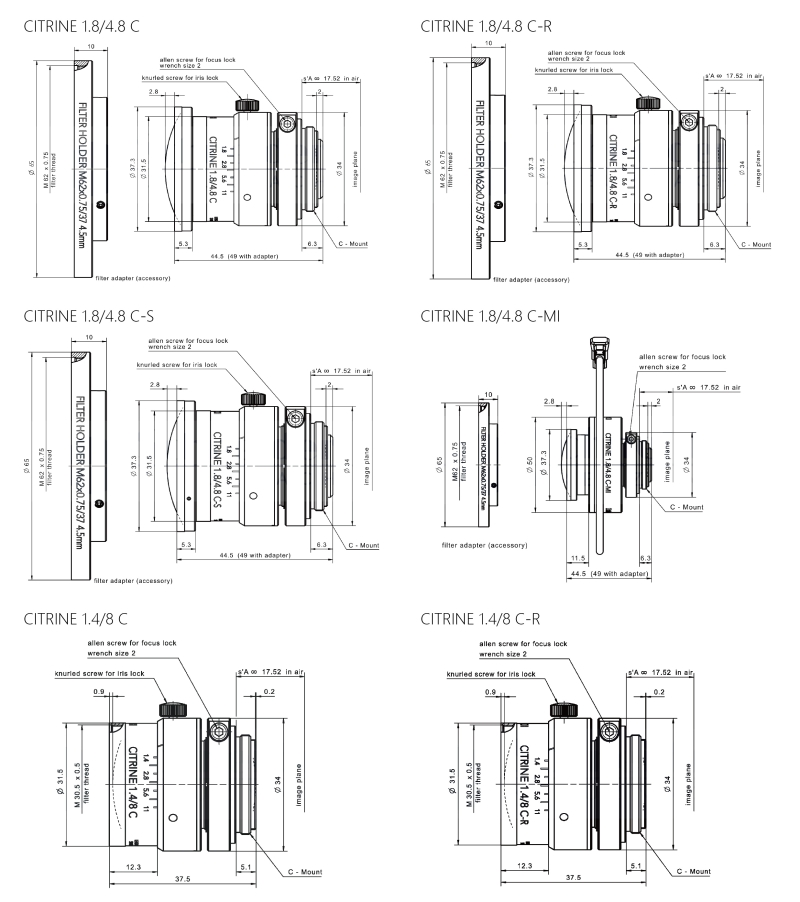

| CITRINE 1.8/4.8 C | 0.1X | 34 ... ∞ | 4.8 | 1.8-11 | 11 | C | M62 x 0.75 |
| CITRINE 1.8/4.8 C-R | 0.1X | 34 ... ∞ | 4.8 | 1.8-11 | 11 | C | M62 x 0.75 |
| CITRINE 1.8/4.8 C-S | 0.1X | 34 ... ∞ | 4.8 | 1.8-11 | 11 | C | M62 x 0.75 |
| CITRINE 1.8/4.8 C-MI | 0.1X | 34 ... ∞ | 4.8 | 1.8-11 | 11 | C | M62 x 0.75 |
| CITRINE 1.4/8 C | 0.1X | 70 ... ∞ | 8 | 1.4-11 | 11 | C | M30.5 x 0.5 |
| CITRINE 1.4/8 C-R | 0.1X | 70 ... ∞ | 8 | 1.4-11 | 11 | C | M30.5 x 0,5 |

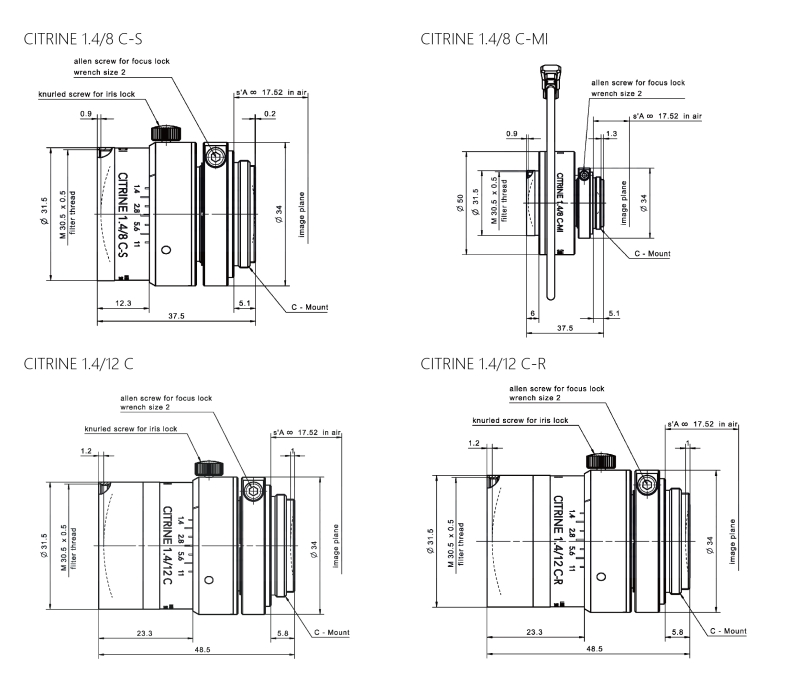

| CITRINE 1.4/8 C-S | 0.1X | 70 ... ∞ | 8 | 1.4-11 | 11 | C | M30.5 x 0,5 |
| CITRINE 1.4/8 C-MI | 0.1X | 70 ... ∞ | 8 | 1.4-11 | 11 | C | M30.5 x 0,5 |
| CITRINE 1.4/12 C | 0.1X | 106 ... ∞ | 12 | 1.4-11 | 11 | C | M30.5 x 0.5 |
| CITRINE 1.4/12 C-R | 0.1X | 106 ... ∞ | 12 | 1.4-11 | 11 | C | M30.5 x 0.5 |

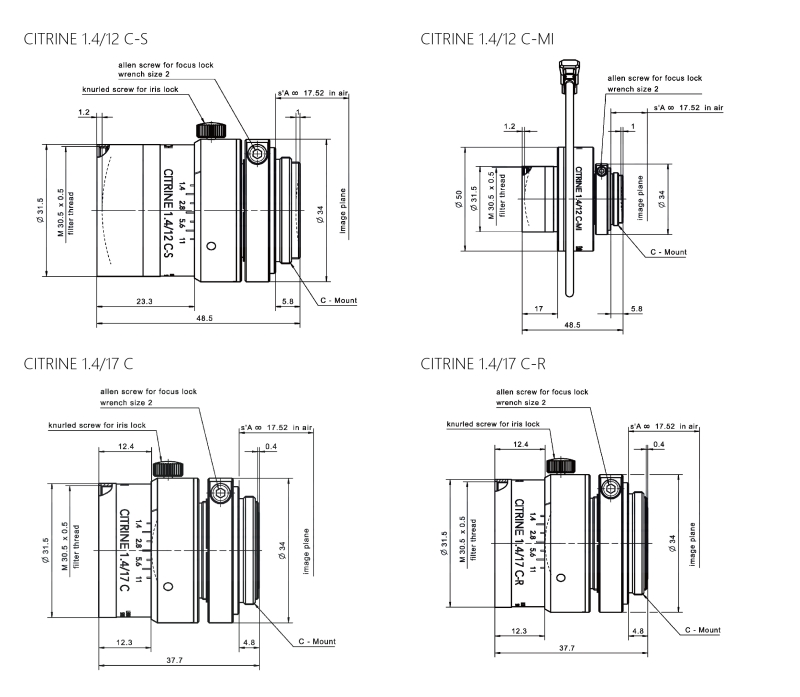

| CITRINE 1.4/12 C-S | 0.1X | 106 ... ∞ | 12 | 1.4-11 | 11 | C | M30.5 x 0.5 |
| CITRINE 1.4/12 C-MI | 0.1X | 105 ... ∞ | 12 | 1.4-11 | 11 | C | M30.5 x 0.5 |
| CITRINE 1.4/17 C | 0.1X | 157 ... ∞ | 17 | 1.4-11 | 11 | C | M30.5 x 0.5 |
| CITRINE 1.4/17 C-R | 0.1X | 157 ... ∞ | 17 | 1.4-11 | 11 | C | M30.5 x 0.5 |

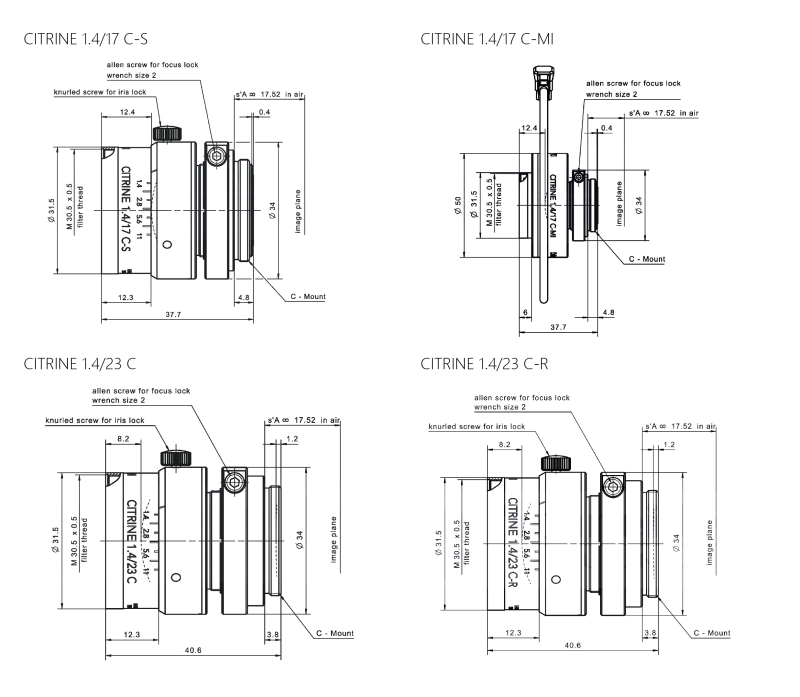

| CITRINE 1.4/17 C-S | 0.1X | 157 ... ∞ | 17 | 1.4-11 | 11 | C | M30.5 x 0.5 |
| CITRINE 1.4/17 C-MI | 0.1X | 157 ... ∞ | 17 | 1.4-11 | 11 | C | M30.5 x 0.5 |
| CITRINE 1.4/23 C | 0.1X | 207 ... ∞ | 23 | 1.4-11 | 11 | C | M30.5 x 0.5 |
| CITRINE 1.4/23 C-R | 0.1X | 207 ... ∞ | 23 | 1.4-11 | 11 | C | M30.5 x 0.5 |

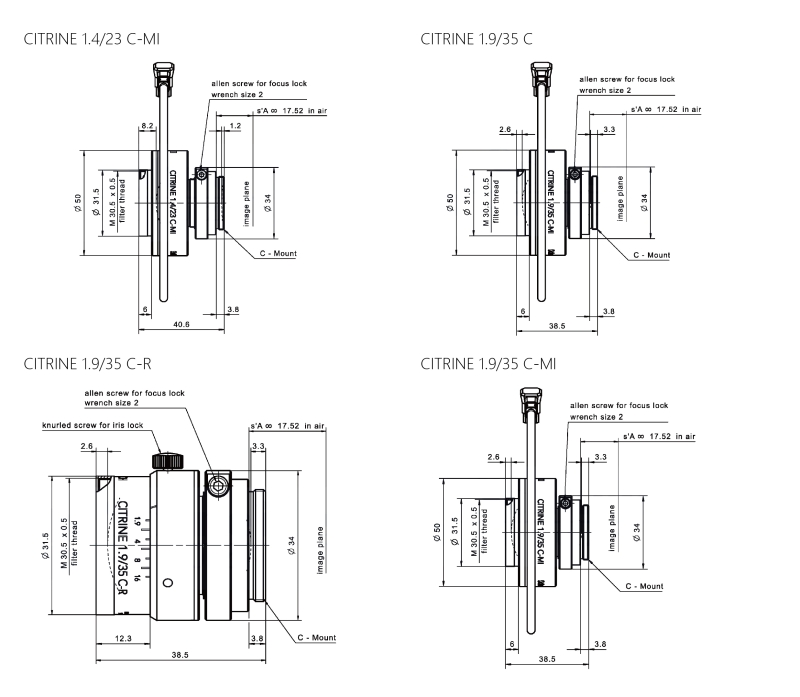

| CITRINE 1.4/23 C-MI | 0.1X | 207 ... ∞ | 23 | 1.4-11 | 11 | C | M30.5 x 0.5 |
| CITRINE 1.9/35 C | 0.1X | 354 ... ∞ | 35 | 1.9-16 | 11 | C | M30.5 x 0.5 |
| CITRINE 1.9/35 C-R | 0.1X | 354 ... ∞ | 35 | 1.9-16 | 11 | C | M30.5 x 0.5 |
| CITRINE 1.9/35 C-MI | 0.1X | 354 ... ∞ | 35 | 1.9-16 | 11 | C | M30.5 x 0.5 |
