DYNACOLOR高速視覺工業檢測相機

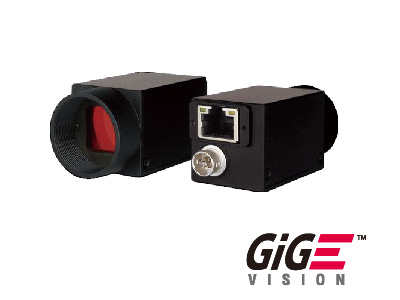

Model S-GigE 系列工業相機
FE Series Model S
最新的影像感測器技術
有了最新的SONY全局式快門CMOS影像感測器，FE 系列可實現高敏銳度、低噪點的高速攝影。
支援遠距操作
Gigabit網路介面最遠可支援距離公尺以內的裝置。僅須透過一條傳輸線，PoE即可達成數據及電力傳輸，縮減了安裝及維修成本。
易於整合
符合GigE vision協議和GenICam標準，FE系列提供順暢的端對端組態介面，減少了整合上的困難，也能有效運作系統
| 產品型號 | MP | RESOLUTION | 取像速度FPS | IMAGE SENSOR | FORMAT | Pixel Size |
SHUTTER | Mount |
|---|---|---|---|---|---|---|---|---|
| ICDA-FE-NV-C/M-04/120 | 0.4 MP | 720 x 540 | 120 | SonyIMX297 | 1/2.9” | 6.9 μm | Global | C |
| ICDA-FE-NH-C/M-04/284 | 0.4 MP | 720 x 540 | 284 | Sony IMX287 | 1/2.9” | 6.9 μm | Global | C |
| ICDA-FE-NU-C/M-1.6/60 | 1.6 MP | 1440 x 1080 | 60 | Sony IMX296 | 1/2.9” | 6.9 μm | Global | C |
| ICDA-FE-NI-C/M-1.6/72 | 1.6 MP | 1440 x 1080 | 72 | Sony IMX237 | 1/2.9” | 3.4 μm | Global | C |
| ICDA-FE-04-C/M-2/48 | 2 MP | 1920 x 1200 | 48 | onsemi AR0234CS | 1/2.9” | 3 μm | Global | C |
| ICDA-FE-VE-C-2/52 | 2 MP | 1600 x 1300 | 52 | OmniVision OG02B10 | 1/2.9” | 3 μm | Global | C |
| ICDA-FE-VH-M-2/52 | 2 MP | 1600 x 1300 | 52 | OmniVision OG02B0B | 1/2.9” | 3 μm | Global | C |
| ICDA-FE-SO-C/M-2/30 | 2 MP | 1936 x 1216 | 30 | Sony IMX249 | 1/1.2” | 5.86 μm | Global | C |
| ICDA-FE-N6-C/M-2/48 | 2 MP | 1920 x 1200 | 48 | Sony IMX392 | 1/2.3” | 3.45 μm | Global | C |
| ICDA-FE-NL-C/M-2/47 | 2 MP | 1920 x 1200 | 47 | Sony IMX174 | 1/1.2” | 5.86 μm | Global | C |
| ICDA-FE-SR-C/M-3/34 | 3 MP | 2048 x 1536 | 34 | Sony IMX265 | 1/1.8” | 3.45 μm | Global | C |
| ICDA-FE-N4-C/M-3/35 | 3 MP | 2048 x 1536 | 35 | Sony IMX252 | 1/1.8” | 3.45 μm | Global | C |
| ICDA-FE-SP-C/M-5/22 | 5 MP | 2448 x 2048 | 22 | Sony IMX250 | 2/3” | 3.45 μm | Global | C |
| ICDA-FE-SP-P-5/22 | 5 MP | 2448 x 2048 | 22 | Sony IMX250 Polarized | 2/3” | 3.45 μm | Global | C |
| ICDA-FE-02-C/M-5/20 | 5 MP | 2592 x 2048 | 20 | onsemi XGS5000 | 2/3” | 3.2 μm | Global | C |
| ICDA-FE-SS-C/M-5/20 | 5 MP | 2592 x 1944 | 20 | Sony IMX335 | 1/2.8” | 2 μm | Rolling | C |
| ICDA-FE-N8-C/M-5/22 | 5 MP | 2448 x 2048 | 22 | Sony IMX548 | 1/1.8” | 2.74 μm | Global | C |
| ICDA-FE-N7-C/M-5/22 | 5 MP | 2448 x 2048 | 22 | Sony IMX547 | 1/1.8” | 2.74 μm | Global | C |
| ICDA-FE-SQ-C/M-5/23 | 5 MP | 2448 x 2048 | 23 | Sony IMX264 | 2/3” | 3.45 μm | Global | C |
| ICDA-FE-NS-C/M-8/12 | 8 MP | 4096 x 2160 | 12 | Sony IMX305 | 1” | 3.45 μm | Global | C |
| ICDA-FE-NT-C/M-8/12 | 8 MP | 4096 x 2160 | 12 | Sony IMX267 | 1” | 3.45 μm | Global | C |
| ICDA-FE-NW-C/M-8/13 | 8 MP | 2840 x 2840 | 13 | Sony IMX546 | 2/3” | 2.74 μm | Global | C |
| ICDA-FE-N9-U-8/13 | 8 MP | 2840 x 2840 | 13 | Sony IMX487 UV | 2/3” | 2.74 μm | Global | C |
| ICDA-FE-NR-C/M-8/12 | 8 MP | 4096 x 2160 | 12 | Sony IMX255 | 1” | 3.45 μm | Global | C |
| ICDA-FE-SF-C/M-12/9 | 12 MP | 4000 x 3000 | 9 | Sony IMX226 | 1/1.7” | 1.85 μm | Rolling | C |
| ICDA-FE-NQ-C/M-12/9 | 12 MP | 4960 x 3000 | 9 | Sony IMX545 | 1/1.1” | 2.74 μm | Global | C |
| ICDA-FE-SZ-C/M-12/8 | 12 MP | 4096 x 3000 | 8 | Sony IMX304 | 1/1” | 3.45 μm | Global | C |
| ICDA-FE-NF-C/M-12/9 | 12 MP | 4096 x 3000 | 9 | Sony IMX253 | 1.1” | 3.45 μm | Global | C |
| ICDA-FE-NE-C/M-20/5 | 20 MP | 5472 x 3648 | 5 | Sony IMX183 | 1” | 2.4 μm | Rolling | C |
| ICDA-FE-SM-C/M-8/13 | 8 MP | 3840 x 2160 | 13 | Sony IMX334 | 1/1.8” | 2 μm | Rolling | C |
