DYNACOLOR高速視覺工業檢測相機

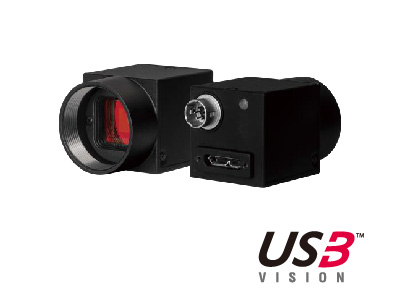

Model S-USB3.0系列工業相機
FB Series Model S
最新的影像感測器技術
有了最新的SONY全局式快門CMOS影像感測器，FB系列可實現高敏銳度、低噪點的高速攝影。
Super Speed USB 3.1 Gen1
擁有USB3.1 Gen1 super speed介面，FB系列能提供高速影像良好的傳輸能力。
易於整合
符合USB3 vision協議和GenICam標準，FB系列提供順暢的端對端組態介面，減少了整合上的困難，也能有效運作系統。
| 產品型號 | MP | RESOLUTION | FPS | IMAGE SENSOR | FORMAT | Pixel Size |
SHUTTER | Mount |
|---|---|---|---|---|---|---|---|---|
| ICDA-FB-NV-C/M-04/120 | 0.4 MP | 720 x 540 | 120 | SonyIMX297 | 1/2.9” | 6.9 μm | Global | C |
| ICDA-FB-NH-C/M-04/433 | 0.4 MP | 720 x 540 | 433 | Sony IMX287 | 1/2.9” | 6.9 μm | Global | C |
| ICDA-FB-NU-C/M-1.6/60 | 1.6 MP | 1440 x 1080 | 60 | Sony IMX296 | 1/2.9” | 6.9 μm | Global | C |
| ICDA-FB-NI-C/M-1.6/225 | 1.6 MP | 1440 x 1080 | 225 | Sony IMX273 | 1/2.9” | 3.4 μm | Global | C |
| ICDA-FB-04-C/M-2/120 | 2 MP | 1920 x 1200 | 120 | onsemi AR0234CS | 1/2.6" | 3 μm | Global | C |
| ICDA-FB-VE-C-2/47 | 2 MP | 1600 x 1300 | 47 | OmniVision OG02B10 | 1/2.9” | 3 μm | Global | C |
| ICDA-FB-VH-M-2/47 | 2 MP | 1600 x 1300 | 47 | OmniVision OG02B0B | 1/2.9” | 3 μm | Global | C |
| ICDA-FB-SO-C/M-2/30 | 2 MP | 1936 x 1216 | 30 | Sony IMX249 | 1/1.2” | 5.86 μm | Global | C |
| ICDA-FB-N6-C/M-2/166 | 2 MP | 1920 x 1200 | 166 | Sony IMX392 | 1/2.3” | 3.45 μm | Global | C |
| ICDA-FB-NL-C/M-2/161 | 2 MP | 1920 x 1200 | 161 | Sony IMX174 | 1/1.2” | 5.86 μm | Global | C |
| ICDA-FB-SR-C/M-3/55 | 3 MP | 2048 x 1536 | 55 | Sony IMX265 | 1/1.8” | 3.45 μm | Global | C |
| ICDA-FB-N4-C/M-3/118 | 3 MP | 2048 x 1536 | 118 | Sony IMX252 | 1/1.8” | 3.45 μm | Global | C |
| ICDA-FB-SS-C/M-5/33 | 5 MP | 2592 x 1944 | 33 | Sony IMX335 | 1/2.8” | 2 μm | Rolling | C |
| ICDA-FB-N8-C/M-5/74 | 5 MP | 2448 x 2048 | 74 | Sony IMX548 | 1/1.8” | 2.74 μm | Global | C |
| ICDA-FB-SQ-C/M-5/35 | 5 MP | 2448 x 2048 | 35 | Sony IMX264 | 2/3” | 3.45 μm | Global | C |
| ICDA-FB-SP-C/M-5/74 | 5 MP | 2448 x 2048 | 74 | Sony IMX250 Polarized | 2/3” | 3.45 μm | Global | C |
| ICDA-FB-SP-P-5/74 | 5 MP | 2448 x 2048 | 74 | Sony IMX250 Polarized | 2/3” | 3.45 μm | Global | C |
| ICDA-FB-02-C/M-5/64 | 5 MP | 2592 x 2048 | 64 | onsemi XGS5000 | 2/3” | 3.2 μm | Global | C |
| ICDA-FB-SM-C/M-8/30 | 8 MP | 3840 x 2160 | 30 | Sony IMX334 | 1/1.8” | 2 μm | Rolling | C |
| ICDA-FB-NS-C/M-8/42 | 8 MP | 4096 x 2160 | 42 | Sony IMX305 | 1” | 3.45 μm | Global | C |
| ICDA-FB-NT-C/M-8/32 | 8 MP | 4096 x 2160 | 32 | Sony IMX267 | 1” | 3.45 μm | Global | C |
| ICDA-FB-NW-C/M-8/46 | 8 MP | 2840 x 2840 | 46 | Sony IMX546 | 2/3” | 2.74 μm | Global | C |
| ICDA-FB-N9-U-8/46 | 8 MP | 2840 x 2840 | 46 | Sony IMX487 UV | 2/3” | 2.74 μm | Global | C |
| ICDA-FB-NR-C/M-8/42 | 8 MP | 4096 x 2160 | 42 | Sony IMX255 | 1” | 3.45 μm | Global | C |
| ICDA-FB-SF-C/M-12/31 | 12 MP | 4000 x 3000 | 31 | Sony IMX226 | 1/1.7” | 1.85 μm | Rolling | C |
| ICDA-FB-NQ-C/M-12/30 | 12 MP | 4096 x 3000 | 30 | Sony IMX545 | 1/1.1” | 2.74 μm | Global | C |
| ICDA-FB-SZ-C/M-12/23 | 12 MP | 4096 x 3000 | 23 | Sony IMX304 | 1/1” | 3.45 μm | Global | C |
| ICDA-FB-O1-C/M-12/28 | 12 MP | 4096 x 3072 | 28 | onsemi XGS12000 | 1” | 3.2 μm | Global | C |
| ICDA-FB-NF-C/M-12/30 | 12 MP | 4096 x 3000 | 30 | Sony IMX253 | 1.1” | 3.45 μm | Global | C |
| ICDA-FB-NE-C/M-20/18 | 20 MP | 5472 x 3648 | 18 | Sony IMX183 | 1” | 2.4 μm | Rolling | C |
| ICDA-FB-N7-C/M-5/74 | 5 MP | 2448 x 2048 | 74 | Sony IMX547 | 1/1.8” | 2.74 μm | Global | C |
