LED Lighting Series

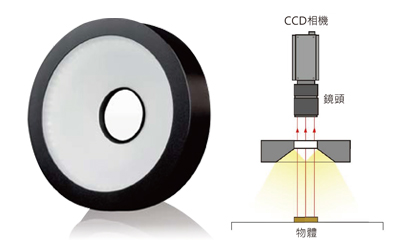

Uniform Ring Light
Uniform Ring Light
- Wide luminous angle and high uniformity;
- Use a high haze diffuser without lamp bead interference;
- It is applicable to the inspection of medical and food packaging, the surface inspection of electronic components, the surface defect inspection of curved products, and the defect inspection of metal surface scratches

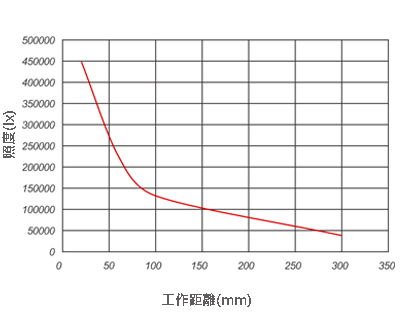

illumination changes with distance
ILL-FWR10030/P-R/G/B/W

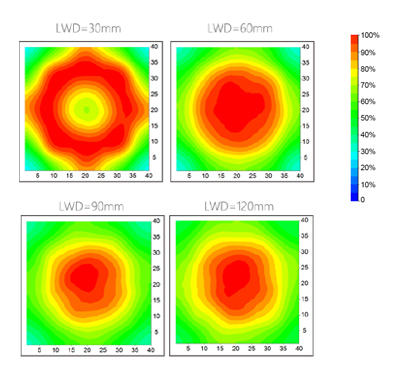

working distance and illumination distribution
ILL-FWR10030/P-R/G/B/W
Imaging Case

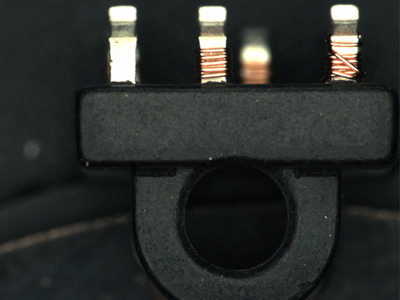

ILL-FWR7621/P-W效果圖
晶片引線纏繞缺陷檢測

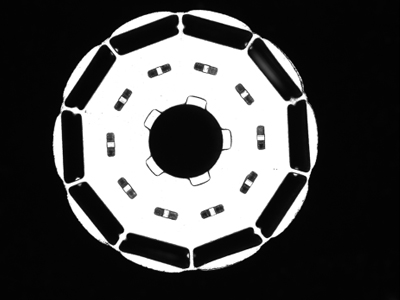

ILL-FWR10030/P-W效果圖
汽車零件弧度面字元檢測

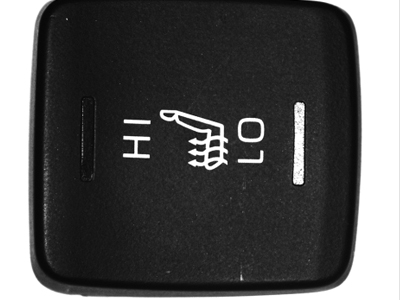

ILL-FWR10030/P-W效果圖
汽車件字符檢測

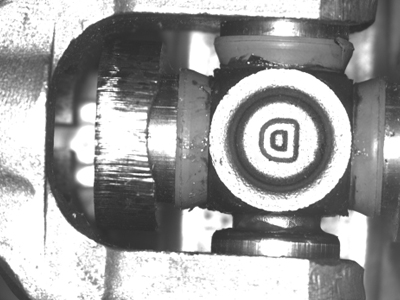

ILL-FWR10030/P-W效果圖
軸承表面特徵檢測
Uniform Ring Light

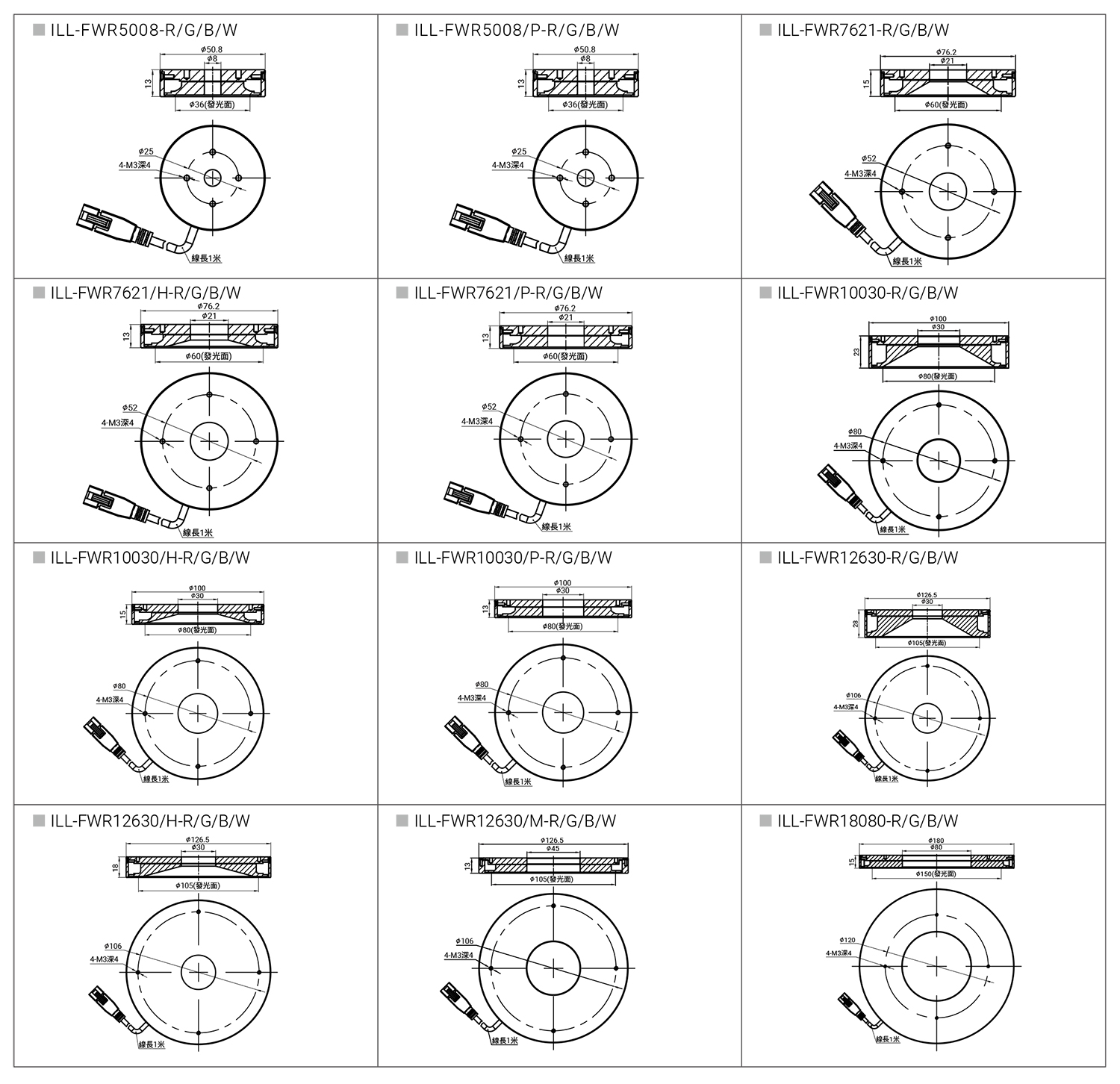

| Model | voltage | power | outer diameter mm | inner diameter mm | angle | adapter controller | |
|
R |
W G B | ||||||
| ILL-FWR5008-R/G/B/W | 24V | 1.1W | 1.3W | 50.8 | 8 | 13 | 單Channel<30W 總Channel加總<50W 可用以下: ILL-DP2454-4CR-1 ILL-DP2454-2CR-1 |
| ILL-FWR5008/P-R/G/B/W | 24V | 1.1W | 1.5W | 50.8 | 8 | 13 | |
| ILL-FWR7621-R/G/B/W | 24V | 1.8W | 2.1W | 76.2 | 21 | 15 | |
| ILL-FWR7621/H-R/G/B/W | 24V | 1.8W | 2.5W | 76.2 | 21 | 13 | |
| ILL-FWR7621/P-R/G/B/W | 24V | 1.8W | 2.5W | 76.2 | 21 | 13 | |
| ILL-FWR10030-R/G/B/W | 24V | 5.8W | 6W | 100 | 30 | 23 | |
| ILL-FWR10030/H-R/G/B/W | 24V | 2.4W | 10.4W | 100 | 30 | 15 | |
| ILL-FWR10030/P-R/G/B/W | 24V | 2.4W | 2.7W | 100 | 30 | 13 | |
| ILL-FWR12630-R/G/B/W | 24V | 7.4W | 11.7W | 126.5 | 30 | 28 | |
| ILL-FWR12630/H-R/G/B/W | 24V | 11.2W | 11.6W | 126.5 | 30 | 18 | |
| ILL-FWR12630/M-R/G/B/W | 24V | 2.8W | 3.3W | 126.5 | 45 | 13 | |
| LL-FWR18080-R/G/B/W | 24V | 4.5W | 4.4W | 180 | 80 | 15 | |
※提供各尺寸光源客製
 |
