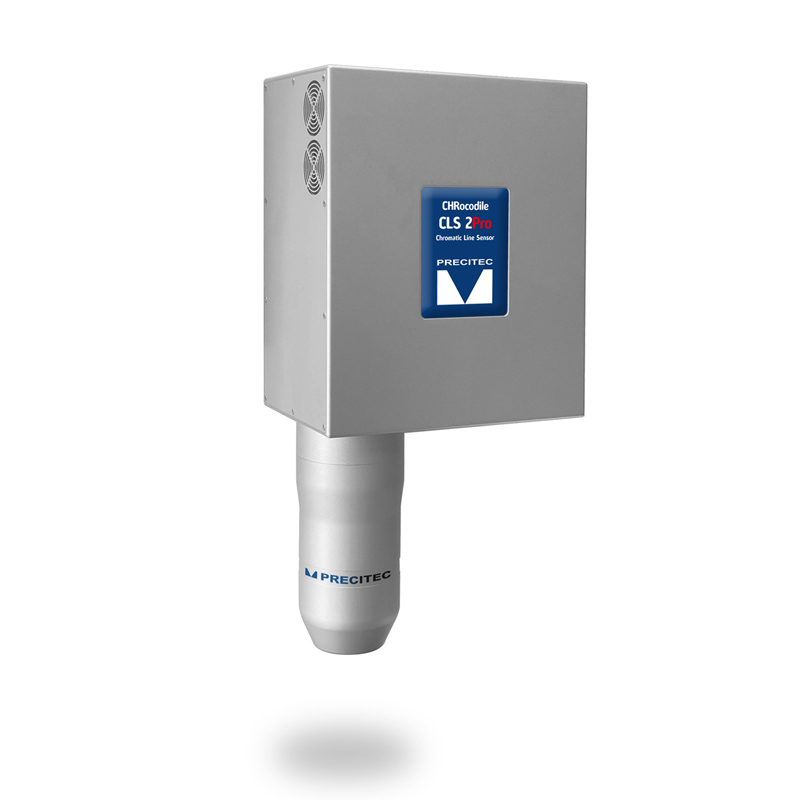

CHROCODILE CLS 2PRO

CHROCODILE CLS 2PRO






Unique line length-NA combination for high-speed inspection

The next-generation CHRocodile CLS 2 Pro is unmatched in the market thanks to its ability to combine an 8 mm line length with an 38° angle of acceptance, for example. Add to this an excellent lateral microscopic resolution, high point density of 21 million measuring points and fast scanning speed of 36,000 lines/sec and you have a confocal line sensor that is ideally suited to a wide variety of inspection applications where speed, accuracy and flexibility are required – and naturally with no shadowing.


Suitable applications for Line sensor CHRocodile CLS 2Pro
The CLS 2 Pro is ideal for micro-mechanical inspection, e.g. measuring big parts, such as drills that require a microscopic resolution. Instead of doing multiple scans you only need a single scan for such measurements. In the consumer electronics field the CHRocodile CLS 2 is ideal for inspecting housing topography, slightly, medium or highly curved surfaces, chamfers and splines, and diameter/hole/stepped surfaces, as well as cosmetic and quality inspection where additional height data are needed. The specific applications include inspections of intraocular lenses, the speaker mesh on smartphones, the metallic foil in displays, bipolar plates, the curved cover glass in smartphones and watches, and lead frames.

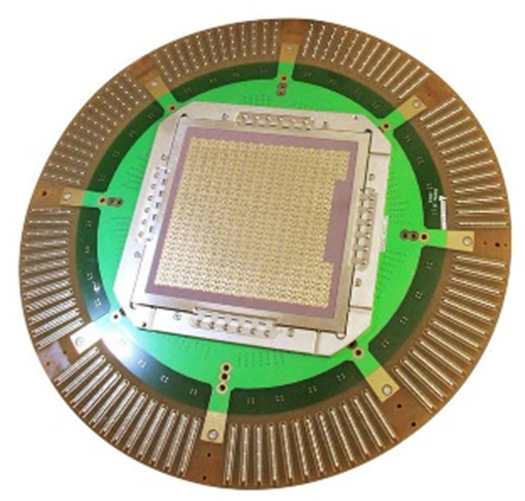

探針卡檢測 監測晶圓彎曲度、

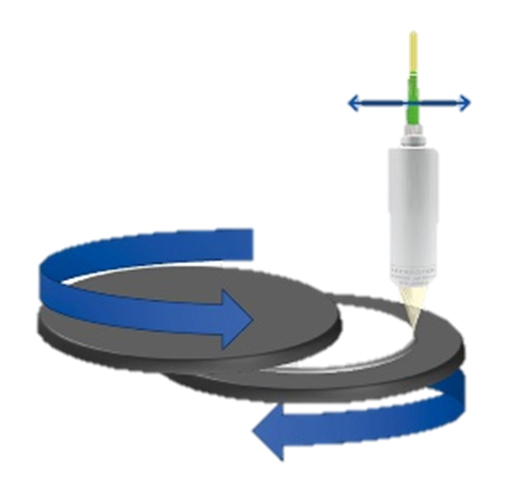

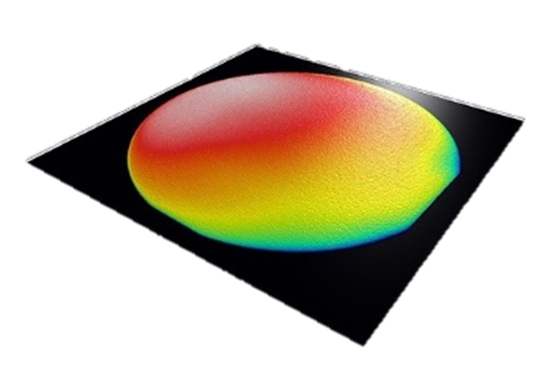

翹曲度和總厚度變化		 晶圓薄化和結構化期間

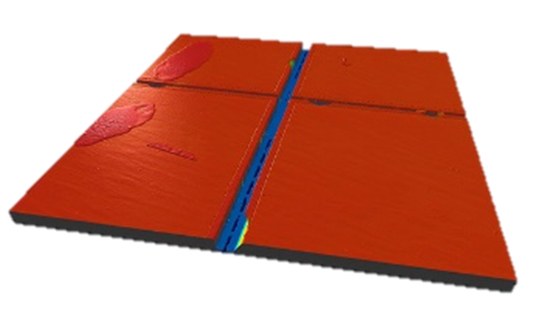

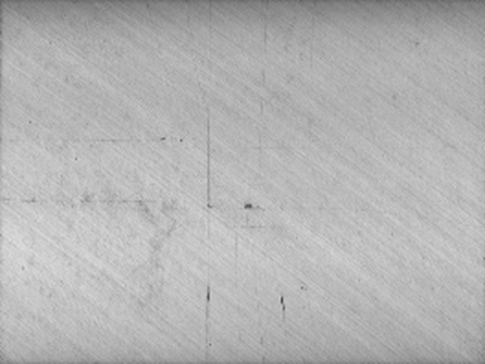

的製程中厚度監測		 切割槽檢測 晶粒裂痕檢測
CHROCODILE CLS 2PRO
Measured value distance
Measuring rate [lines per second]
(full measuring range)		 7930
Measuring rate [lines per second]
(reduced measuring range)		 18300
Measuring rate [lines per second]
(high speed mode, reduced measuring range)		 36000
Number of points / line 1200
Synchronization with external devices trigger input, synchronizing output, 5 encoder inputs
Interface Ethernet, RS-422
Light source Laser Diode
Operating temperature +5°C up to +35°C
Dimension (w x h x d) 346 mm x 185 mm x 135 mm
Weight 6.2 kg
Supply voltage 24 V DC ± 10%
Rated power < 50 W
