Photoneo 3D Camera

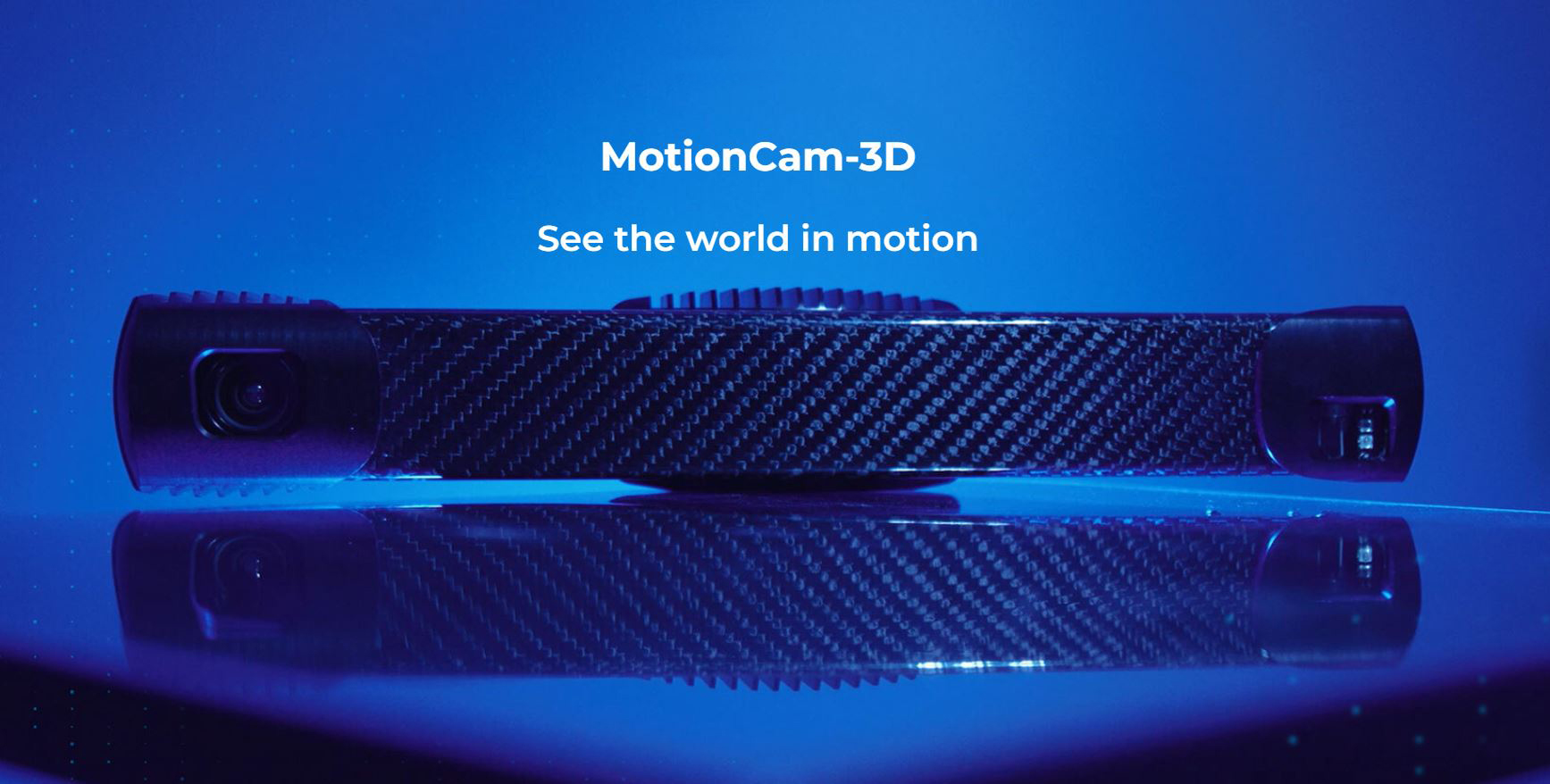

MotionCam-3D



MotionCam-3D,your ultimate vision device

Photoneo MotionCam-3D is the world’s highest-resolution and highest-accuracy area 3D camera for dynamic scenes. It is your go-to device for applications requiring fast and robust 3D acquisition. Reconstruct accurate point clouds of various objects in a high level of detail without compromises on quality caused by vibrations, ambient light or motion blur. This makes it your ideal 3D vision companion for handling objects in motion.



Never compromise between speed and accuracy again

  • Resistant to vibrations & ambient light-without producing distortion or broken acquisitions
  • Highest resolution and accuracy-of 3D scanning of dynamic scenes
  • No blurry edges-for objects moving up to 40 m/s
  • Patented technology-inside in the form of novel CMOS sensor
  • Ultra high-density-point cloud with a resolution of 0,9 Mpx equal to 2 Mpx in the mode for static scenes.
  • Industry-ready device-with IP65, PoE and thermal calibration
  • Computational powerhouse-provides 15 million 3D points per second
  • Unrivaled scanning range-from 36 cm up to 3 m




The power of Parallel Structured Light

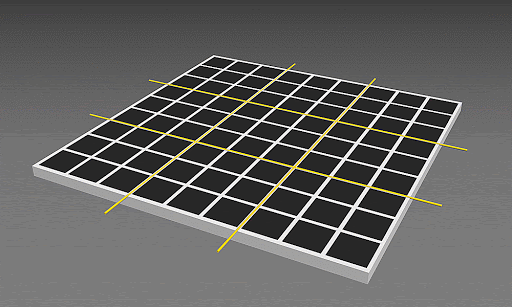

Parallel Structured Light brings the state-of-the-art quality and resolution of structured light scanning into the 3D reconstruction of highly dynamic scenes. This novel patented technology uses a clever sensor design which performs the acquisition in one snapshot as opposed to the sequential scanning of a standard image sensor. This means that the Parallel Structured light method practically freezes the 3D scene in time.



Robust 3D reconstruction in any condition

High level of detail on unpredictable movement

Capture and reconstruct chaotic and unpredictable movements into highly accuracy point clouds for further processing.




High speed scenes recognition

The only 3D camera in the world that can produce high-accuracy point clouds of dynamic scenes.


  S S+ M M+ L L+
  Model ICDA-MOTIONCAM
-3D-S		 ICDA-MOTIONCAM
-3D-S+		 ICDA-MOTIONCAM
-3D-M		 ICDA-MOTIONCAM
-3D-M+		 ICDA-MOTIONCAM
-3D-L		 ICDA-MOTIONCAM
-3D-L+

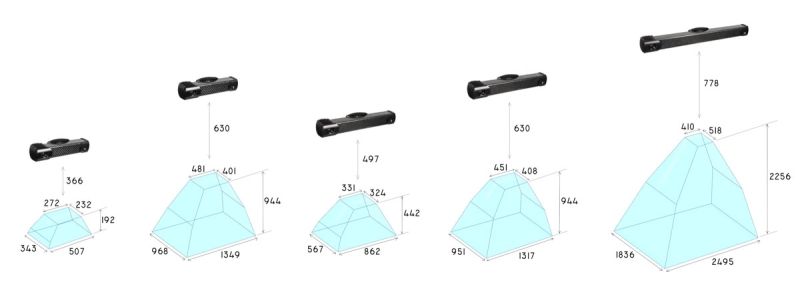

  Scanning range 366-558 mm 630 - 1574 mm 497 - 939 mm 630 - 1574 mm 778 - 3034 mm 1300 - 3780 mm
  Camera Mode
  Point size 0.37 mm @z = 442 mm 0.76 mm @z = 900 mm 0.55 mm @z = 650 mm 0.76 mm @z = 900 mm 1.05 mm @z = 1239 mm 1.680 mm
  Accuracy < 0.300 mm <1.000 mm < 0.500 mm < 0.600 mm < 1.250 mm 2.050 mm
  Temporal noise < 0.100 mm < 0.150 mm < 0.100 mm < 0.100 mm < 0.150 mm 0.550 mm
  Scanner Mode
  Point size 0.25 mm @z = 442 mm 0.52 mm @z = 900 mm 0.37 mm @z = 650 mm 0.52 mm @z = 900 mm 0.72 mm @z = 1239 mm 1.150 mm @z = 1944
  Accuracy < 0.150 mm < 0.500 mm < 0.250 mm < 0.300 mm < 0.900 mm 1.500 mm
 Temporal noise < 0.050 mm < 0.100 mm < 0.050 mm < 0.050 mm < 0.100 mm 0.400 mm
 General information
 Depth map resolution (static mode) 1680 x 1200 1680 x 1200 1680 x 1200 1680 x 1200 1680 x 1200 1680 x 1200
 Depth map resolution (dynamic mode) 1120 x 800 1120 x 800 1120 x 800 1120 x 800 1120 x 800 1120 x 800
 Maximum FPS 20 fps 20 fps 20 fps 20 fps 20 fps 20fps
 Data acquisition time 10 ms 10 ms 10 ms 10 ms 20 ms 20 ms
 Maximum object / camera speed 40 m/s 40 m/s 40 m/s 40 m/s 40 m/s 40 m/s
 3D point throughput 15 million points per second 15 million points per second 15 million points per second 15 million points per second 15 million points per second 15 million points per second
 GPU NVIDIA PascalTM Architecture GPU with 256 CUDA cores NVIDIA PascalTM Architecture GPU with 256 CUDA cores NVIDIA PascalTM Architecture GPU with 256 CUDA cores NVIDIA PascalTM Architecture GPU with 256 CUDA cores NVIDIA PascalTM Architecture GPU with 256 CUDA cores NVIDIA PascalTM Architecture GPU with 256 CUDA cores
 Dimensions 80 x 68 x 307 mm 80 x 68 x 307 mm 80 x 68 x427 mm 80 x 68 x 427 mm 80 x 68 x 627 mm 628 x 68 x 85 mm
 Baseline 230 mm 230 mm 350 mm 350 mm 550 mm 550 mm
 Weight 1300 g 1300 g 1400 g 1400 g 1500 g 1150 g
