Structured Light 3D Scanner

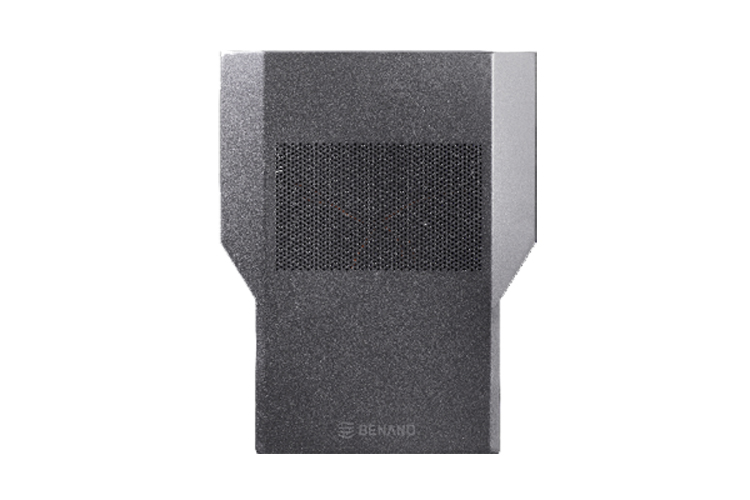

OTTO Equipment level 3D Optical Module High Accuracy, Telecentric Lens
OTTO Equipment level 3D Optical Module High Accuracy, Telecentric Lens
- 3D AOI optical module-Telecentric lens system without perspective error
- Application-Powerful tool for BGA IC, Connector, Probe card inspection
- Customization-Varieties of optical resolution & FOV ( 5M / 12M / 25M)
- Developer friendly SDK-Multiple-view 2D/3D hybrid module with developer friendly SDK
Application

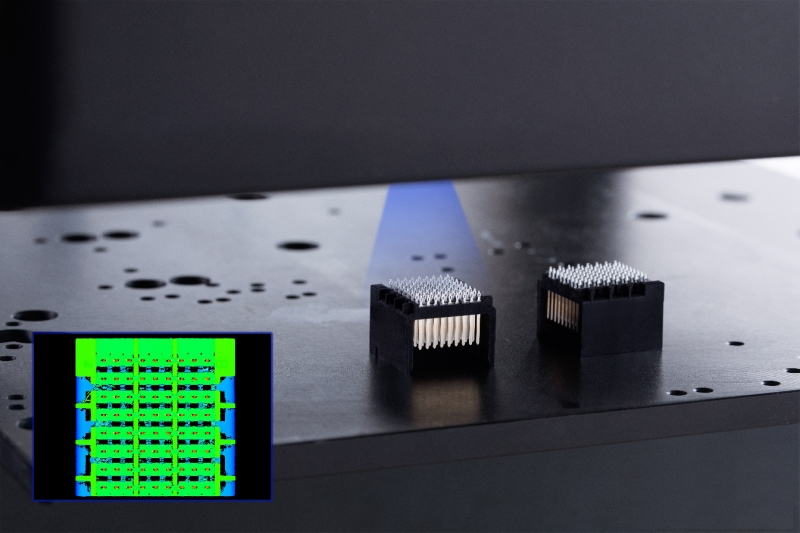

Connector

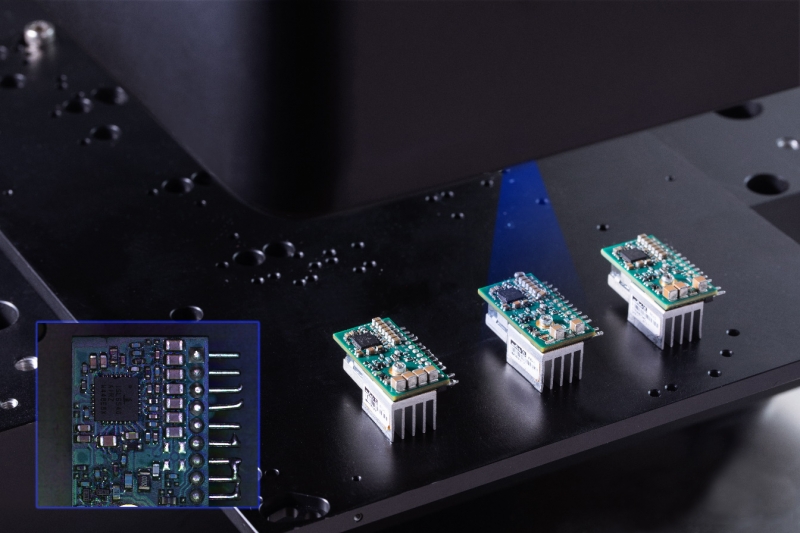

PCBA
BGA Solder ball
| 產品型號 | 相機畫素 | XY解析度(um) | Z解析度(um) | FOV(mm) | 量測深度(mm) | 工作距離(mm) | 取像頻率(FPS) |
| TBN12M-3.45/05 | 12M | 3.45 | 0.1 | 14 x 10 | 6 | 35 | Max 2.5 |
| TBN5M-10/05-2 TBN5M-10/05-4 |
5M | 10 | 0.5 | 24 x 20 | 20 | 95 | Max 4 |
| Max 2 | |||||||
| TBN5M-15/07-02 TBN5M-15/07-04 |
5M | 15 | 0.7 | 36 x 30 | 30 | 115 | Max 4 |
| Max 2 | |||||||
| TBN12M-10/08-02 TBN12M-10/08-04 |
12M | 10 | 0.8 | 41 x 30 | N/A | N/A | Max 2.5 |
| Max 1.0 | |||||||
| TBN12M-15/1.15-02 TBN12M-15/1.15-04 |
12M | 15 | 1.15 | 61 x 45 | 10 | 123+ | Max 2.5 |
| Max 1.0 | |||||||
| TBN25M-17/1.12 | 25M | 17.3 | 1.12 | 88 x 88 | 10 | 208 | Max 1.0 |
