Structured Light 3D Scanner

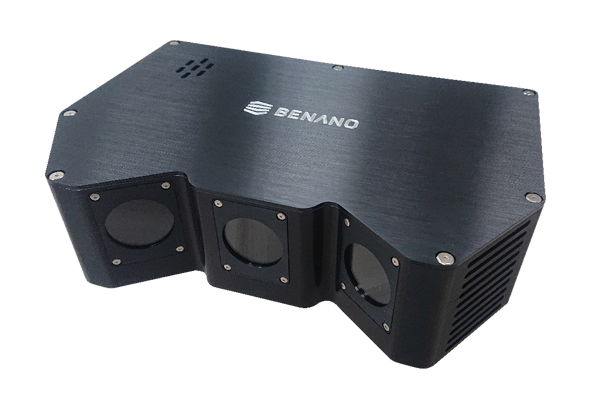

DUE Two-eye Structured Light 3D Scanner
DUE Two-eye Structured Light 3D
- Dual views-Best choice for elimination of multiple reflectio
- 2D/3D hybrid sensor-2D + 3D in ONE shot without alignment need
- Triple scan technology-Switchable scan mode and stable image quality
- Developer friendly SDK-Support C++, C#, Image Stitching, Base Correction, 2/3D inspection
Maximum 5 fps, support different kinds of library

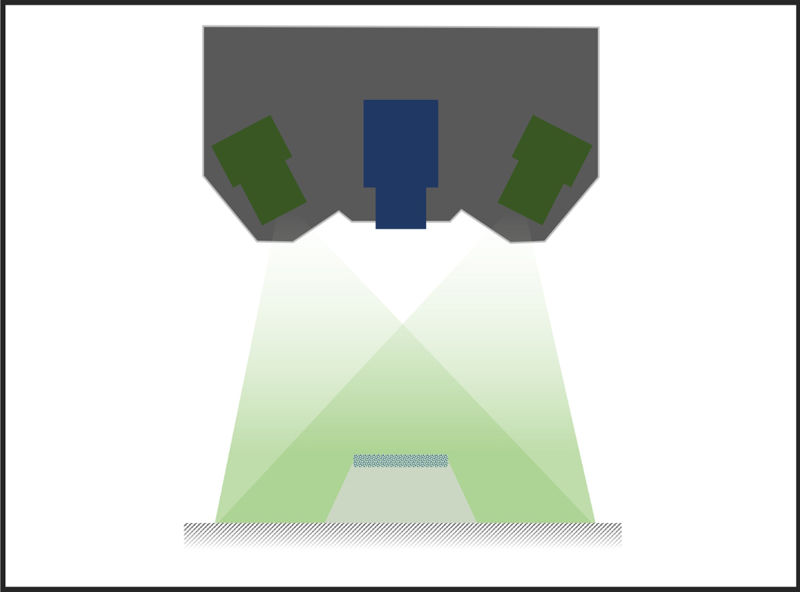

Double UNO mode

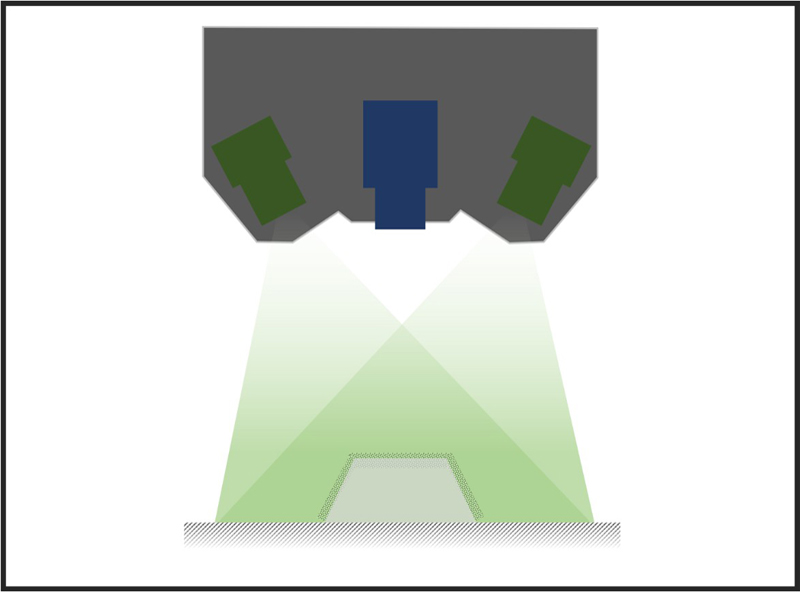

Stereo mode

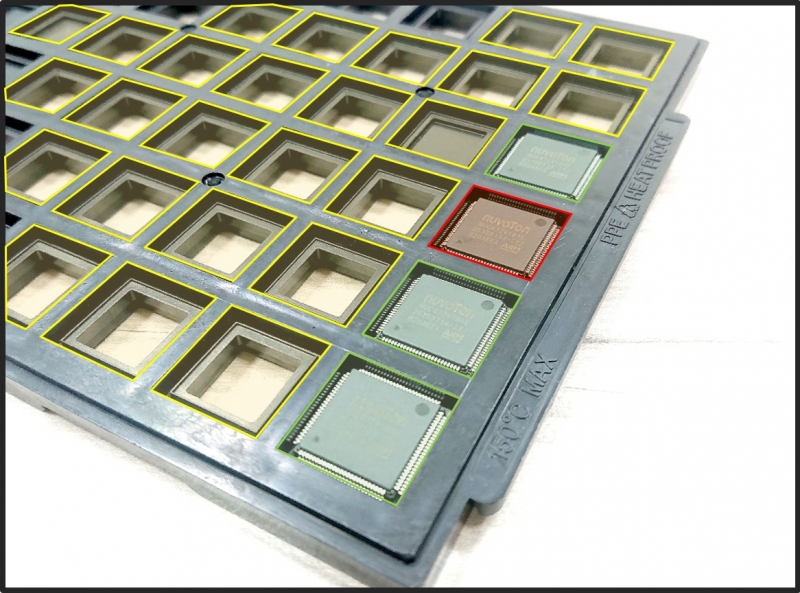

In-tray Inspection
| Model | Resolution | XY Resolution(um) | Z Resolution(um) | FOV(mm) | Depth of field(mm) | Working Distanc(mm) | (FPS) |
| ICDA-BN5M-15/05 | 5M | 15 | 0.5 | 36 x 26 | 26 | 67 | Max 5 |
| ICDA-BN5M-32/1.0 | 5M | 32 | 1 | 77 x 54 | 55 | 114 | Max 5 |
| ICDA-BN5M-62/2.7 | 5M | 62 | 2.7 | 151 x 107 | 106 | 255 | Max 5 |
| ICDA-BN5M-90/5.2 | 5M | 90 | 5.2 | 220 x 156 | 156 | 393 | Max 5 |
