Highlight Ring Shadowless Light Source

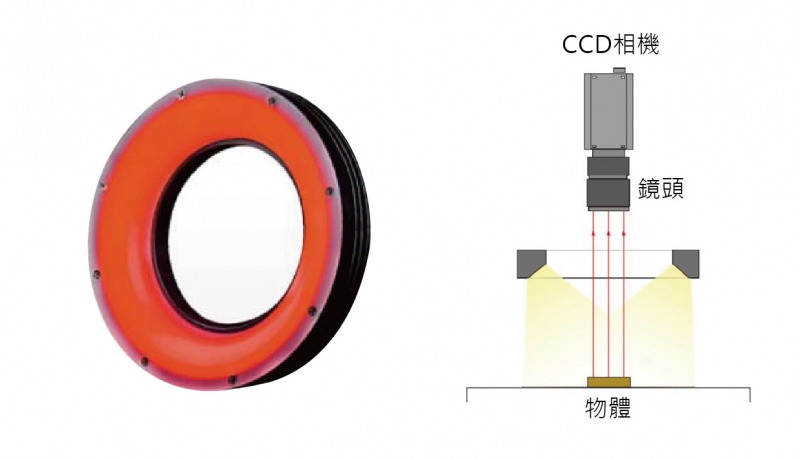

Highlight Ring Shadowless Light Source

  • Wide light-emitting angle and high uniformity
  • The use of high haze diffuser, to achieve bright shadow irradiation
  • It is suitable for pharmaceutical food packaging inspection, electronic component surface inspection, mobile phone shell panel character inspection, uneven height reflective surface defect inspection, etc.

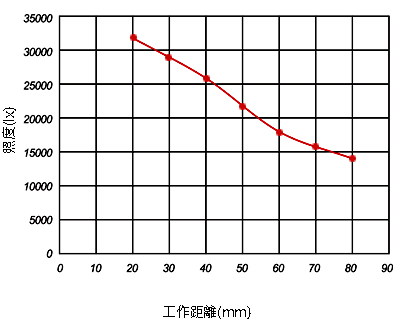

illumination changes with distance
ILL-FAR11468-R/G/B/W

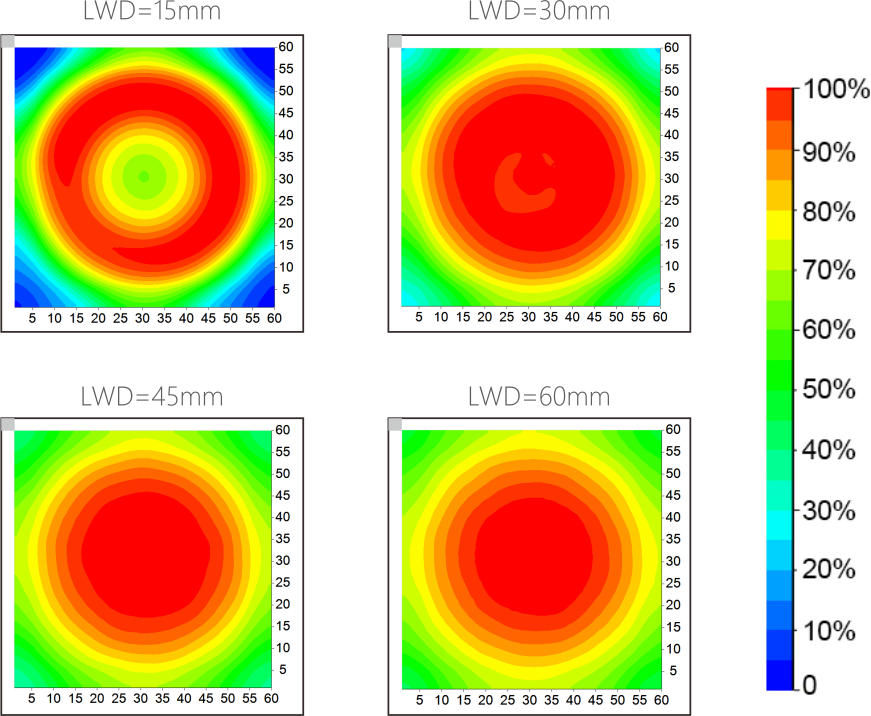

working distance and illumination distribution
ILL-FAR11468-R/G/B/W





Imaging Case

ILL-FAR7642-R

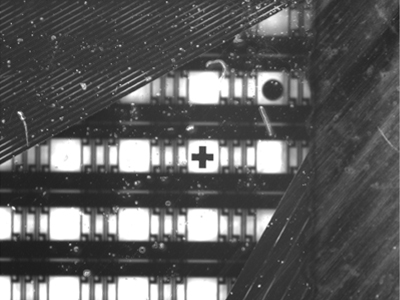

晶片mark點定位

ILL-FAR176111-W

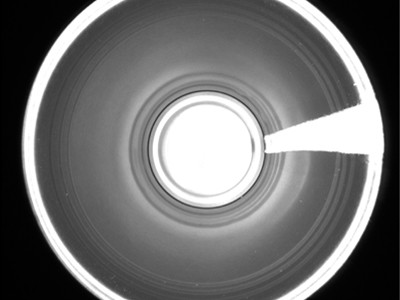

易拉罐內部缺陷檢測

ILL-FAR176111-R

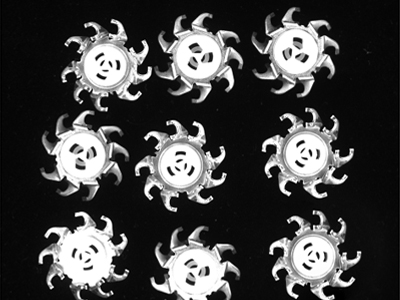

刮鬍刀水晶頭正反檢測

ILL-FAR176111-W

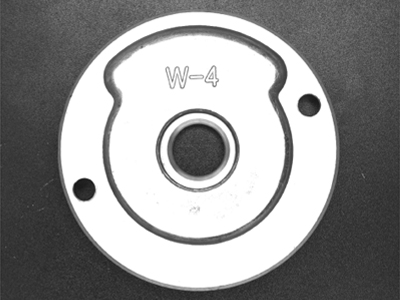

字符檢測

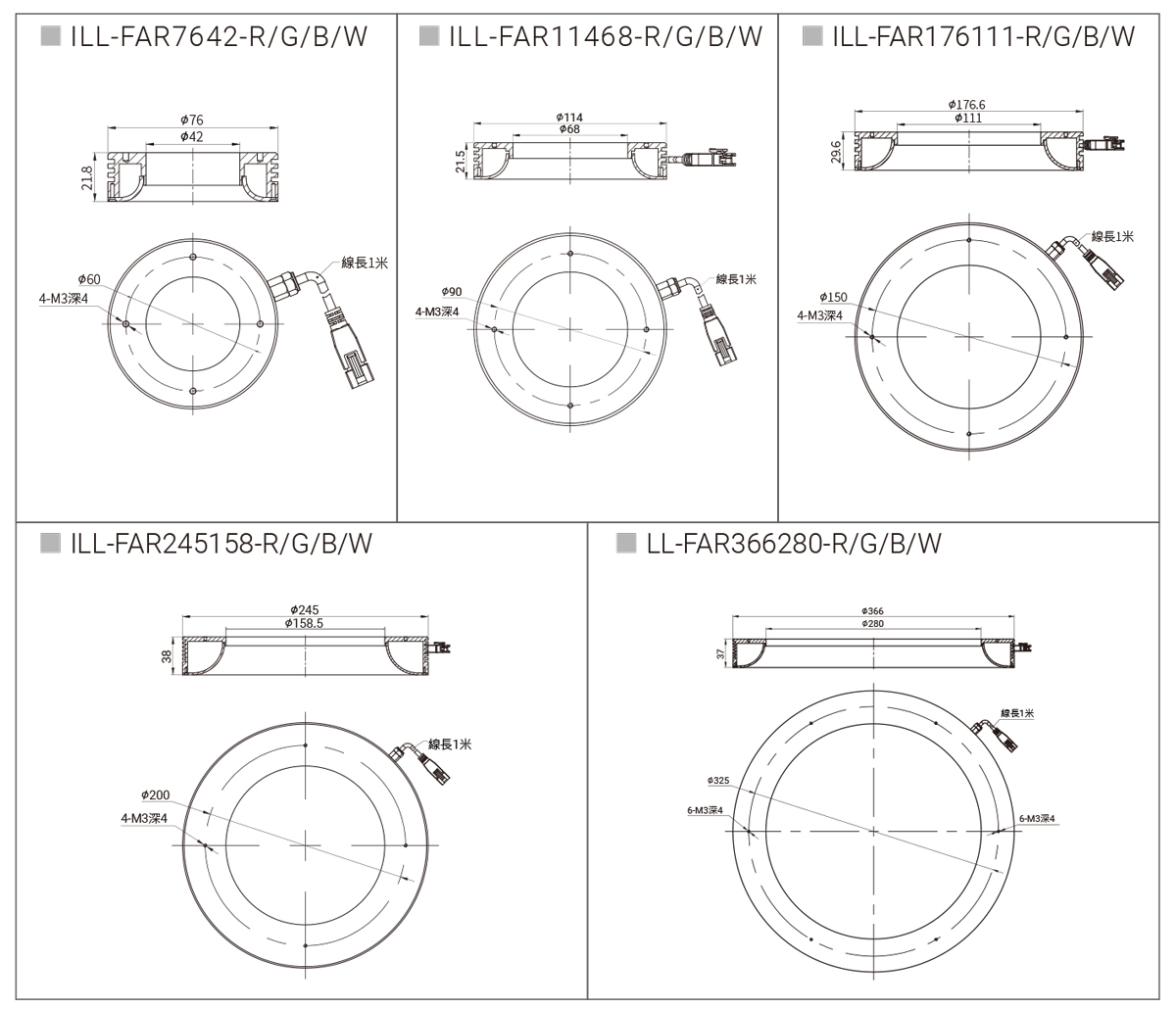

Highlight Ring Shadowless Light Source

Model voltage power outer diameter mm inner diameter mm height mm adapter controller

R

 W G B
ILL-FAR7642-R/G/B/W 24V 4.3W 3.4W 76 42 21.8  單Channel<30W
 總Channel加總<50W
 可用以下:
 ILL-DP-2450-2C
 ILL-DP2454-4CR-1
 ILL-DP2454-2CR-1
ILL-FAR11468-R/G/B/W 24V 6.7W 5.9W 114 68 22
ILL-FAR176111-R/G/B/W 24V 9.2W 14.4W 176.6 111 29.6
ILL-FAR245158-R/G/B/W 24V 10.4W 28.4W 245 158.5 38
ILL-FAR366280-R/G/B/W 24V 41W 52.7W 366 280 37  ILL-FCV-15024系列
