Low Angle Ring Light Source

Low Angle Ring Light Source

  • High density LED array, high brightness
  • The surface adopts tooth design, high heat dissipation efficiency

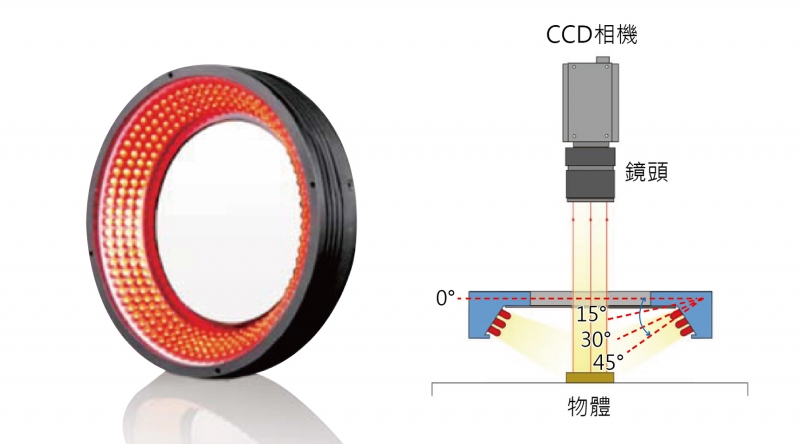

  • Low angle illumination can emphasize the edge part of the illumination
  • Multi-angle illumination can highlight the three-dimensional information of the object and avoid the shadow problem caused by diagonal illumination
  • It is suitable for drug foreign body mixing detection, edge extraction, detection, character recognition, edge detection and metal surface marking, damage and dirt detecti

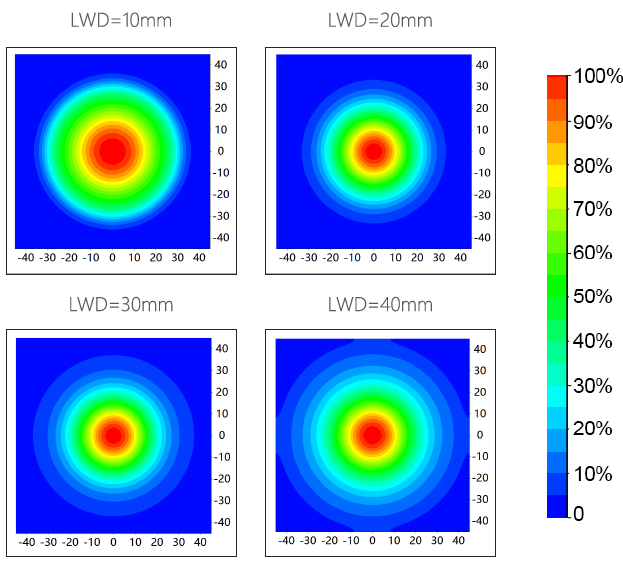

illumination changes with distance
ILL-FCR9252M-R/G/B/W

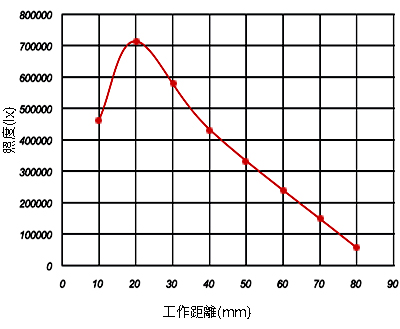

working distance and illumination
ILL-FCR9252M-R/G/B/W



Imaging Case

ILL-FCR5425M-W

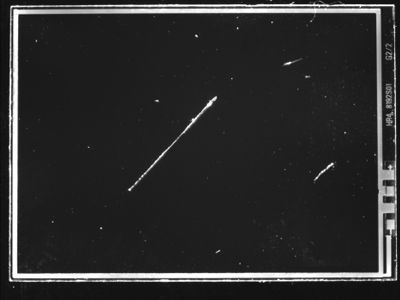

鑽頭缺陷檢測

ILL-FDR12090E-W

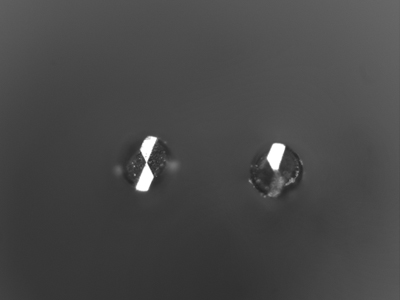

玻璃片表面刮傷檢測

ILL-FDR12090E-W

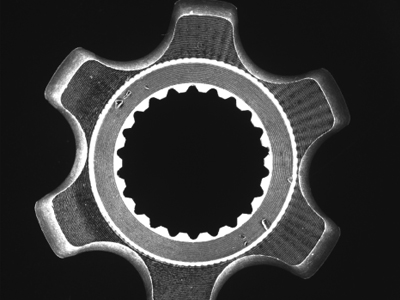

齒輪凹坑針測

ILL-FCR13194L-W

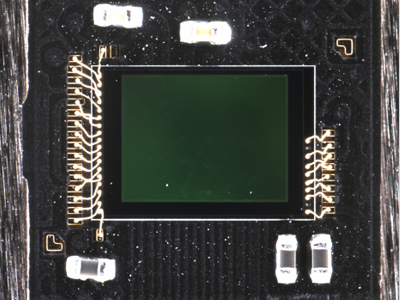

迷你液晶屏金線缺陷檢測

Low Angle Ring Light Source

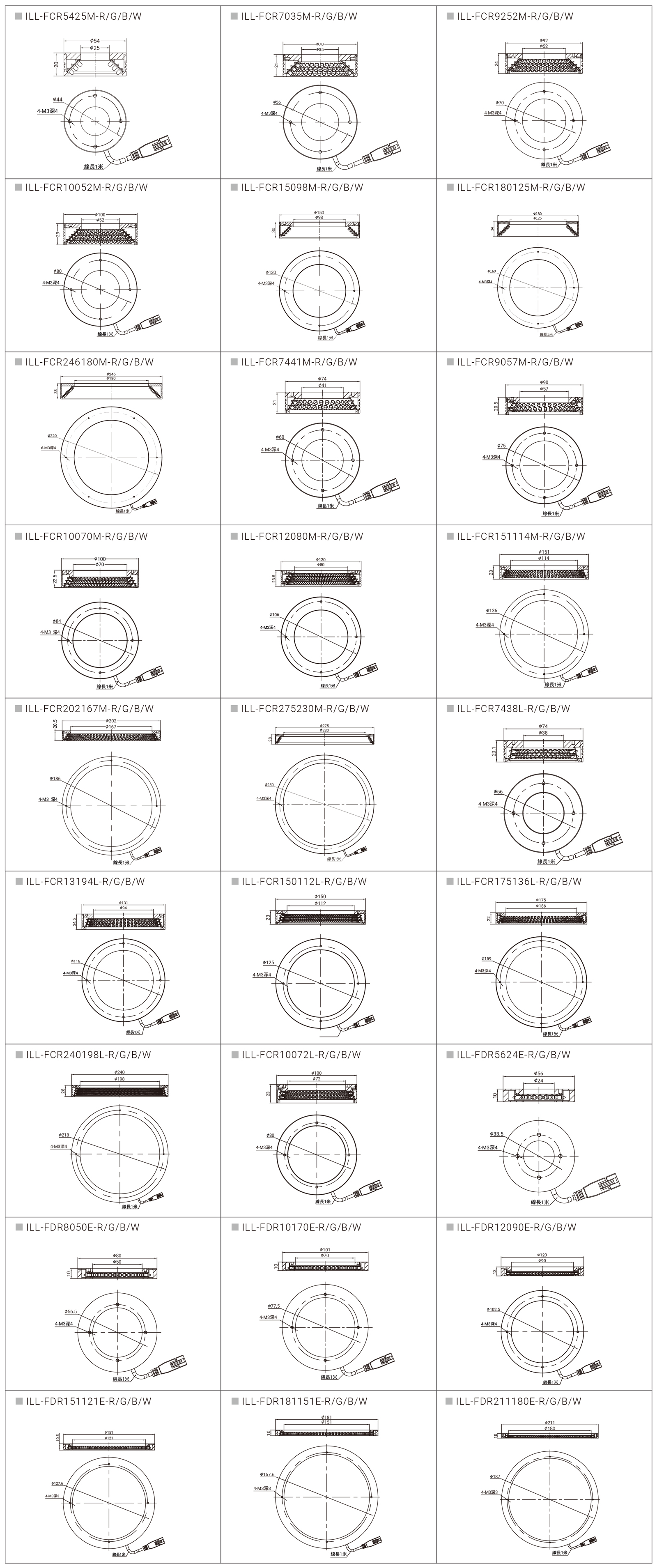

Model voltage power outer diameter mm inner diameter mm angle adapter controller

R

 W G B
ILL-FCR5425M-R/G/B/W 24V 1.7W 4W 54 25 45°   單Channel<30W,
  總Channel加總<50W
  可用以下控制器
  ILL-DP2450-2C
  ILL-DP2454-4CR-1
  ILL-DP2454-2CR-1

  單Channel>30W
*需使用以下控制器
  ILL-FCV恆壓系列
  ILL-FST3恆壓系列
ILL-FCR7035M-R/G/B/W 24V 2.8W 4.6W 70 35 45°
ILL-FCR9252M-R/G/B/W 24V 5.5W 8.1W 92 52 45°
ILL-FCR10052M-R/G/B/W 24V 7.7W 9.5W 100 52 45°
ILL-FCR15098M-R/G/B/W 24V 12.8W 12.5W 150 98 45°
ILL-FCR180125M-R/G/B/W 24V 21W 24W 180 125 45°
ILL-FCR246180M-R/G/B/W 24V 30W* 38.5W* 246 180 45°
ILL-FCR7441M-R/G/B/W 24V 4.2W 4.2W 74 41 30°
ILL-FCR9057M-R/G/B/W 24V 3.4W 4.8W 90 57 30°
ILL-FCR10070M-R/G/B/W 24V 6W 7.4W 100 70 30°
ILL-FCR12080M-R/G/B/W 24V 8.6W 9W 120 80 30°
ILL-FCR151114M-R/G/B/W 24V 8.4W 10.8W 151 114 30°
ILL-FCR202167M-R/G/B/W 24V 12.4W 13W 202 167 30°
ILL-FCR275230M-R/G/B/W 24V 23W 28.8W 275 230 30°
ILL-FCR7438L-R/G/B/W 24V 4W 3.6W 74 38 15°
ILL-FCR13194L-R/G/B/W 24V 6.3W 9.5W 131 94 15°
ILL-FCR150112L-R/G/B/W 24V 8.5W 9.6W 150 112 15°
ILL-FCR175136L-R/G/B/W 24V 8.3W 10.3W 175 136 15°
ILL-FCR240198L-R/G/B/W 24V 17.3W 17.2W 240 198 15°
ILL-FCR10072L-R/G/B/W 24V 4.5W 5.5W 100 72 10°
ILL-FDR5624E-R/G/B/W 24V 1.2W 1.5W 56 24 0°
ILL-FDR8050E-R/G/B/W 24V 1.4W 2.2W 80 50 0°
ILL-FDR10170E-R/G/B/W 24V 1.7W 3.2W 101 70 0°
ILL-FDR12090E-R/G/B/W 24V 2.5W 3.6W 120 90 0°
ILL-FDR151121E-R/G/B/W 24V 3.5W 5.1W 151 121 0°
ILL-FDR181151E-R/G/B/W 24V 4.5W 6.4W 181 151 0°
ILL-FDR211180E-R/G/B/W 24V 4.8W 7.7W 211 180 0°

 ※提供各尺寸光源客製
