LED Lighting Series

High Angle Ring Light Source

High Angle Ring Light Source

  • High density LED array, high brightness
  • The surface adopts tooth design, high heat dissipation efficiency

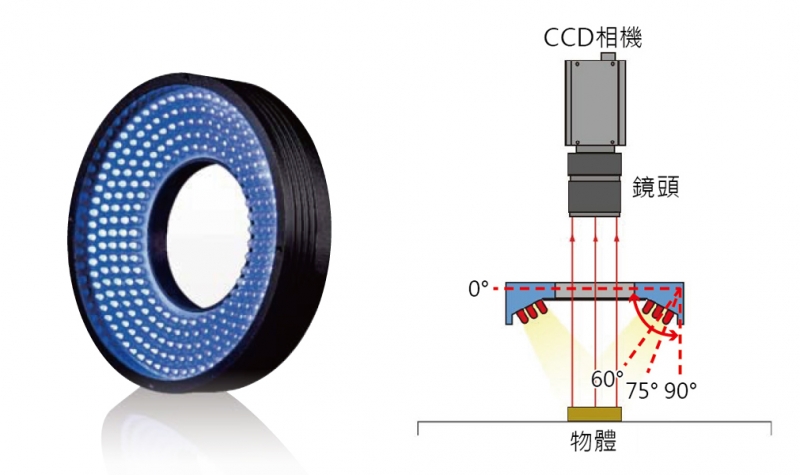

  • Multi-angle illumination can highlight the three-dimensional information of the object and avoid the shadow problem caused by diagonal illumination
  • It is suitable for general appearance detection, two-dimensional code, bar code reading, character recognition, edge detection, PCB substrate, electronic component detection, etc.

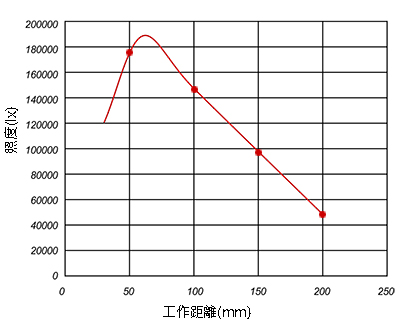

illumination changes with distance
ILL-FCR10384H-R/G/B/W

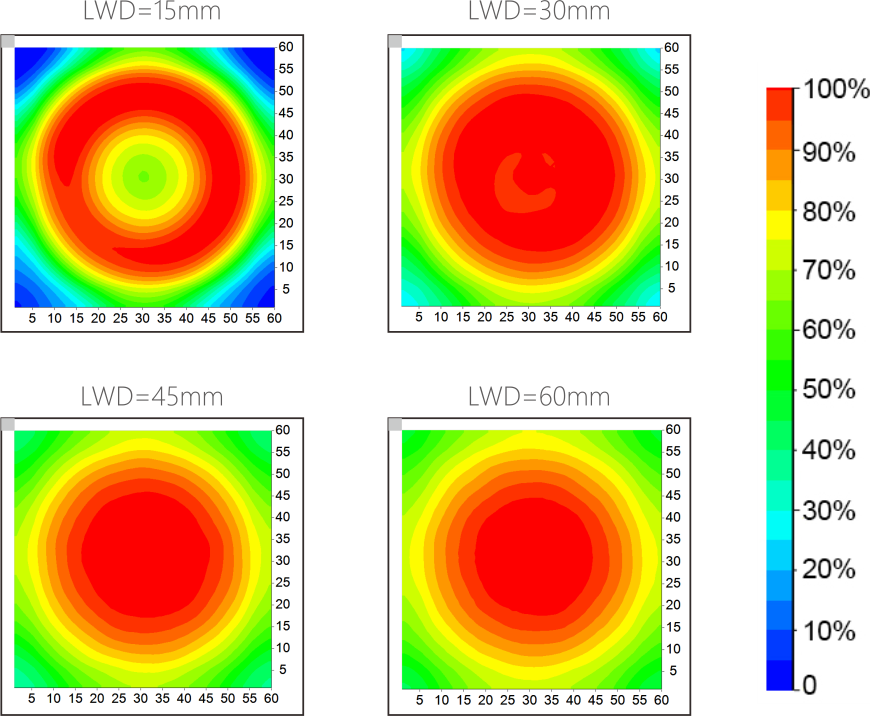

working distance and illumination distribution
ILL-FCR10384H-R/G/B/W



Imaging Case

ILL-FCR5026H-W

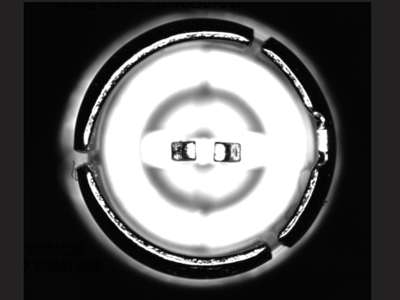

pin針位置度檢測

ILL-FCR7036H-W

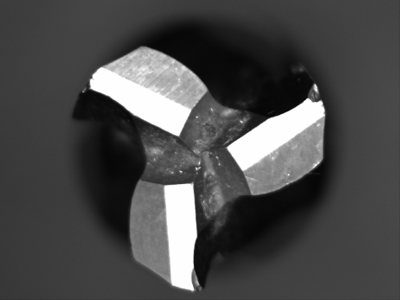

道具破損檢測

ILL-FDR7030P-W

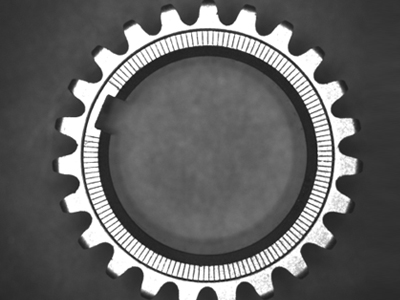

齒輪側面凹朝數量檢測

ILL-FDR12050P-R

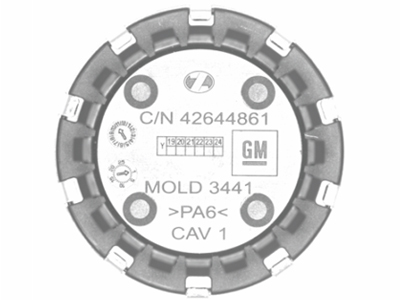

雪佛蘭標誌被面字符檢測

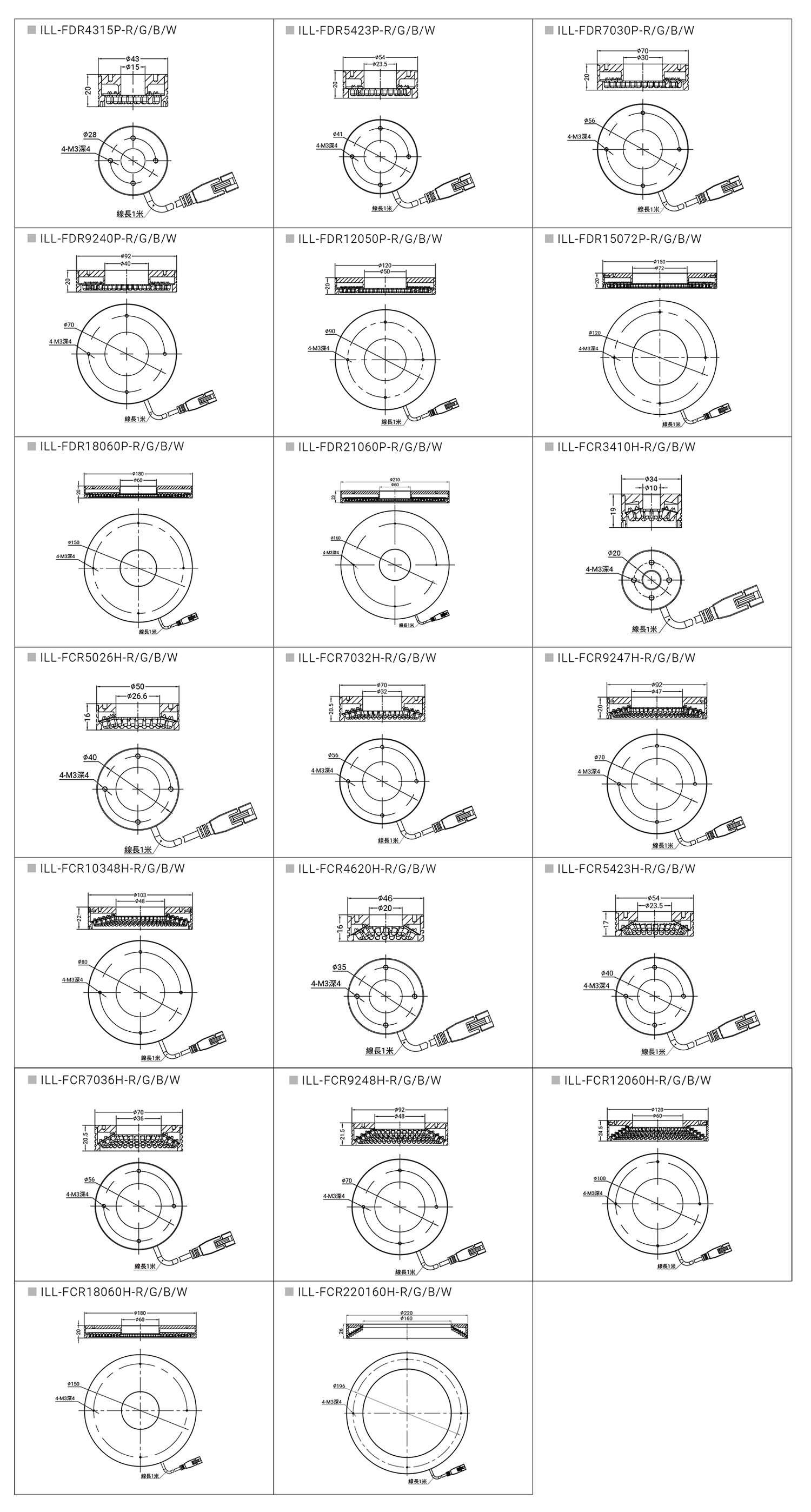

High Angle Ring Light Source

Model voltage power outer diameter mm inner diameter mm angle adapter controller

R

 W G B
ILL-FDR4315P-R/G/B/W 24V 1.5W 1.4W 43 15 90°

單Channel<30W
總Channel加總<50W
可用以下控制器
ILL-DP2450-2C
ILL-DP2454-4CR-1
ILL-DP2454-2CR-1

單Channel>30W,
*需使用以下控制器
ILL-FCV恆壓系列



ILL-FDR5423P-R/G/B/W 24V 1.7W 2.0W 54 23.5 90°
ILL-FDR7030P-R/G/B/W 24V 2.8W 4.3W 70 30 90°
ILL-FDR9240P-R/G/B/W 24V 5.2W 6.4W 92 40 90°
ILL-FDR12050P-R/G/B/W 24V 10.9W 11.5W 120 50 90°
ILL-FDR15072P-R/G/B/W 24V 11.6W 17.3W 150 72 90°
ILL-FDR18060P-R/G/B/W 24V 25W 26.88W 180 60 90°
ILL-FDR21060P-R/G/B/W 24V 26W 31W* 210 60 90°
ILL-FCR3410H-R/G/B/W 24V 1.1W 1.5W 34 10 75°
ILL-FCR5026H-R/G/B/W 24V 1.4W 2W 50 26.6 75°
ILL-FCR7032H-R/G/B/W 24V 3.4W 4.6W 70 32 75°
ILL-FCR9247H-R/G/B/W 24V 5.2W 6.7W 92 47 75°
ILL-FCR10348H-R/G/B/W 24V 7.7W 9W 103 48 75°
ILL-FCR4620H-R/G/B/W 24V 1.5W 2.1W 46 20 60°
ILL-FCR5423H-R/G/B/W 24V 1.7W 2.4W 54 23.5 60°
ILL-FCR7036H-R/G/B/W 24V 3.6W 5.5W 70 36 60°
ILL-FCR9248H-R/G/B/W 24V 5.8W 7.2W 92 48 60°
ILL-FCR12060H-R/G/B/W 24V 9W 11.6W 120 60 60°
ILL-FCR18060H-R/G/B/W 24V 13.5W 18.3W 180 60 60°
ILL-FCR220160H-R/G/B/W 24V 20W 26W 220 160 60°

※提供各尺寸光源客製
