LED Lighting Series
Low Angle Annular Diffuse Light Source

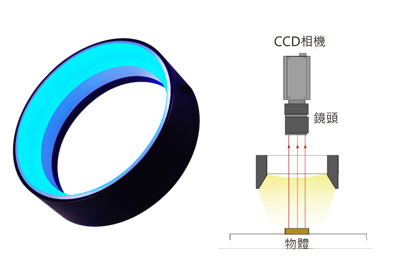

Low Angle Annular Diffuse Light Source
- Uniformity, to achieve annular shadowless irradiation effect
- Low angle irradiation, suitable for detecting edges and scratches
- Suitable for character recognition, circular metal contour extraction, workpiece surface scratch defect detection.

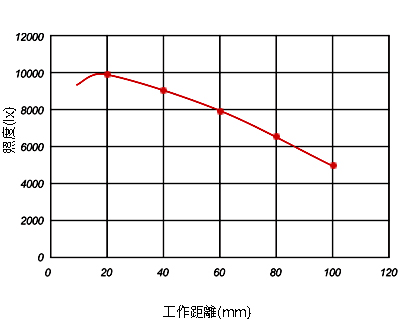

illumination changes with distance

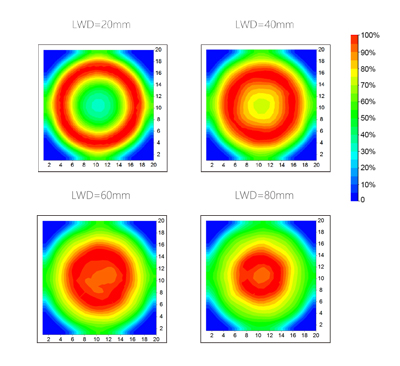

ILL-FMRL10073-R/G/B/W
ILL-FMRL10073-R/G/B/W
Imaging Case
ILL-FMRL5118-W

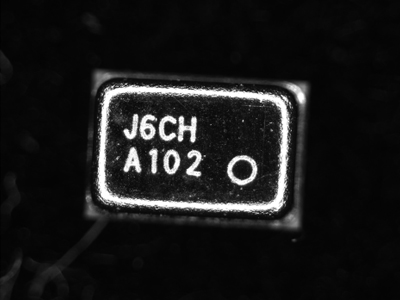

晶片字元檢測
ILL-FMRL7643-W

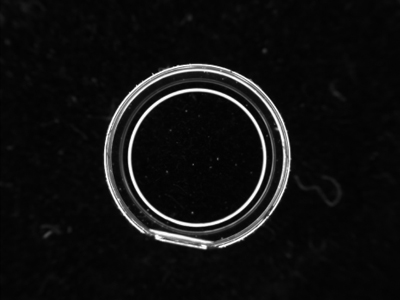

鏡片定位檢測
ILL-FMRL10073-W

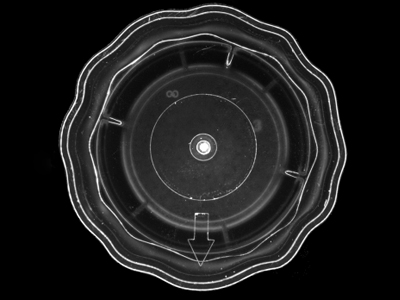

化妝品蓋子定位檢測
ILL-FMRL136109-B

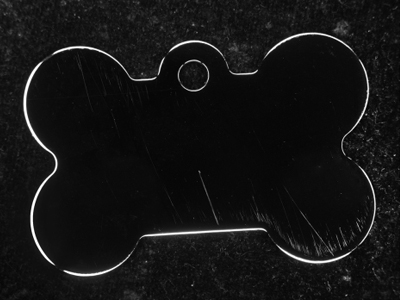

金屬表面刮傷檢測
金屬表面刮傷檢測

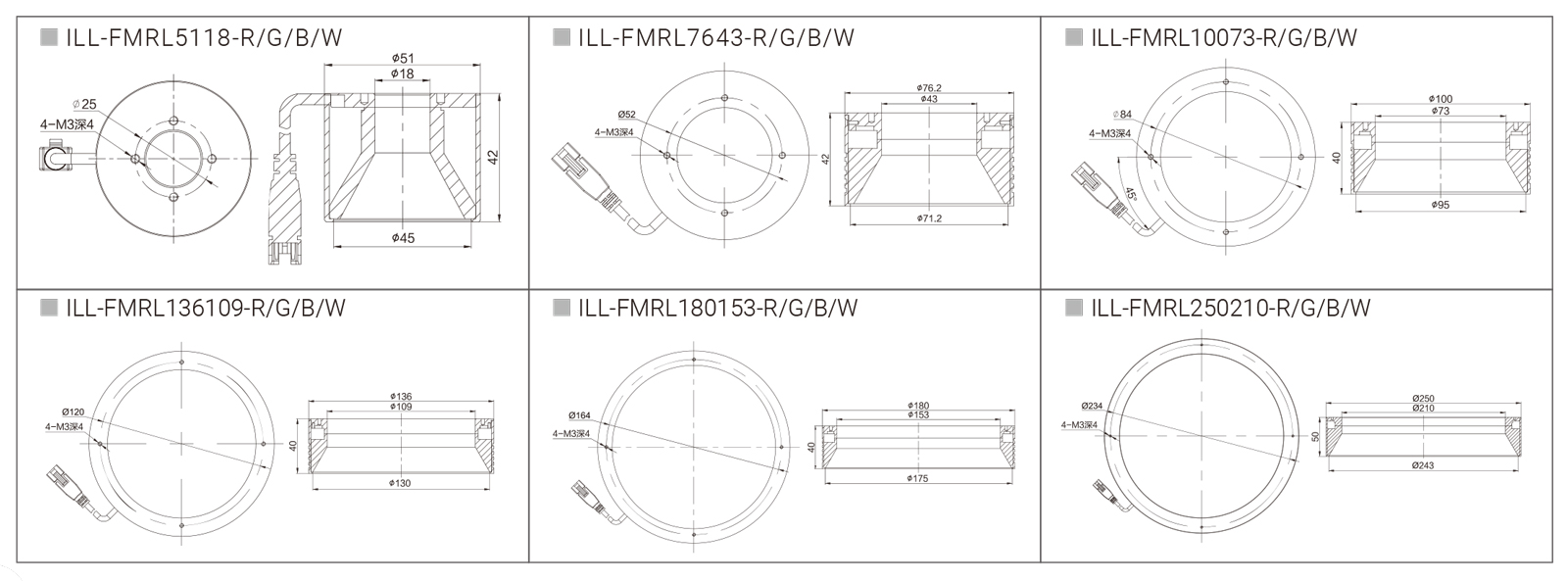

Low Angle Annular Diffuse Light Source
| Model | voltage | power | outer diameter mm | inner diameter mm | angle | adapter controller | |
|
R |
W G B | ||||||
| ILL-FMRL5118-R/G/B/W | 24V | 3.24W | 3.8W | 51 | 18 | 42 | 單Channel<30W， 總Channel加總<50W 可用以下控制器 ILL-DP2450-2C ILL-DP245-2CR-1 ILL-DP245-4CR-1 |
| ILL-FMRL7643-R/G/B/W | 24V | 1.5W | 1.8W | 76.2 | 43 | 42 | |
| ILL-FMRL10073-R/G/B/W | 24V | 2.3W | 3.1W | 100 | 73 | 40 | |
| ILL-FMRL136109-R/G/B/W | 24V | 3.4W | 5.4W | 136 | 109 | 40 | |
| ILL-FMRL180153-R/G/B/W | 24V | 3.8W | 4.9W | 180 | 153 | 40 | |
| ILL-FMRL250210-R/G/B/W | 24V | 8W | 6.8W | 250 | 210 | 50 | |
 |
