Bottom Emitting Backlight

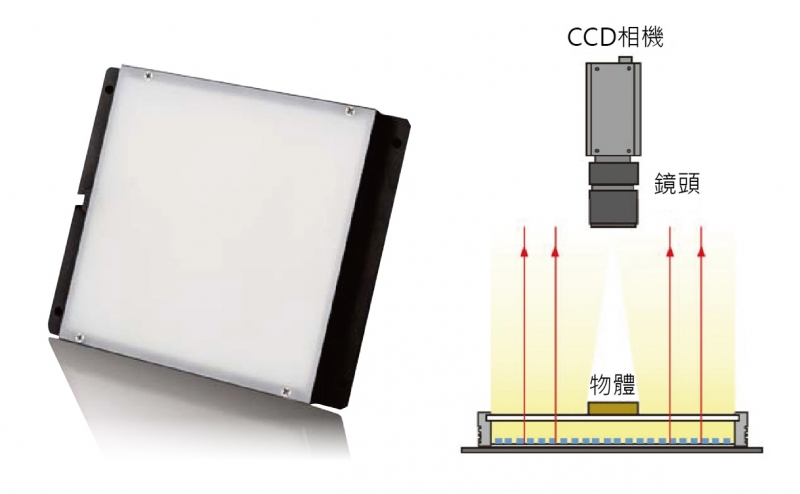

Bottom Emitting Backlight

  • uniformity and high brightness;
  • Large format uniform lighting, flexible size;
  • High proportion of effective luminous surface, suitable for compact installation environment;
  • Suitable for object size measurement, contour detection, metal contour burr detection, transparent object scratches, foreign body detection, etc.

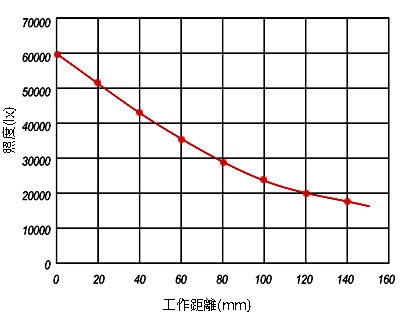

illumination changes with distance
ILL-FSB160240-R/G/B/W

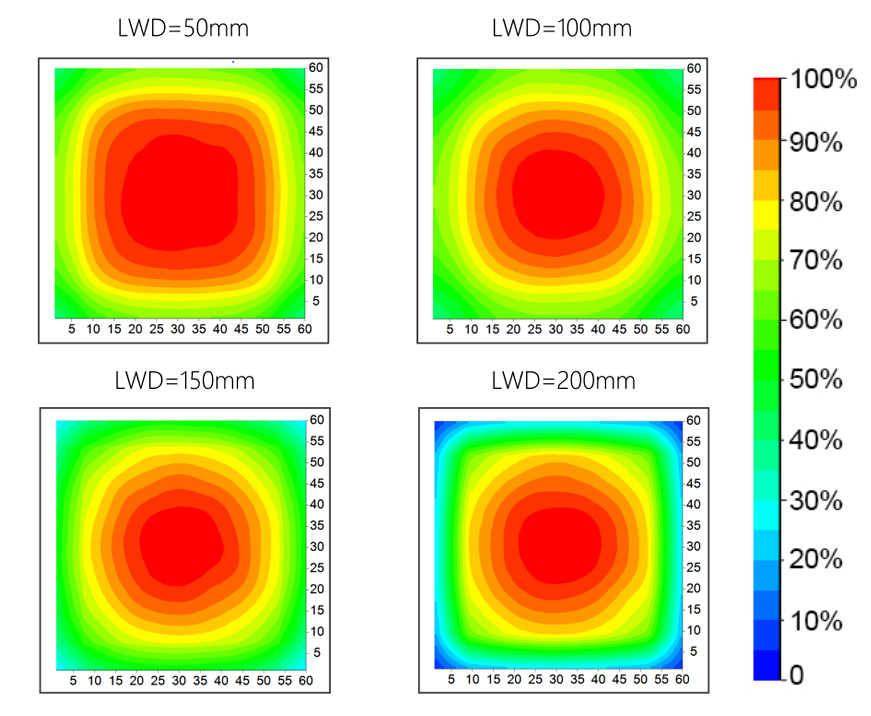

working distance and illumination distribution
ILL-FSB160240-R/G/B/W

Imaging Case

ILL-FSB100100-W

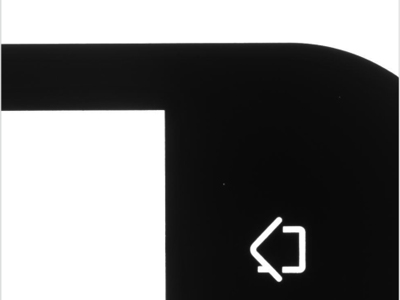

手機外殼螢幕尺寸及home識別檢測

ILL-FSB100300-B

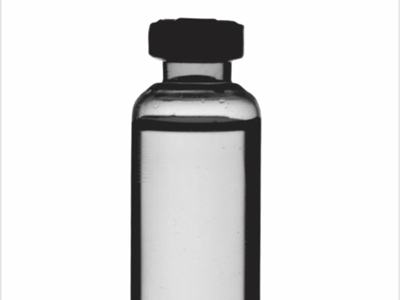

口服液夜位檢測

ILL-FSB160160-W

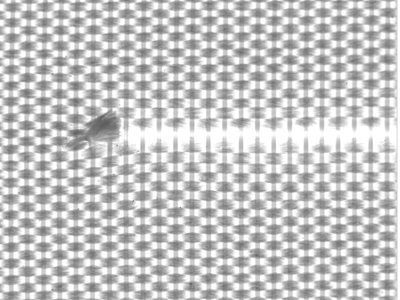

布料缺陷檢測

ILL-FSB160240-W

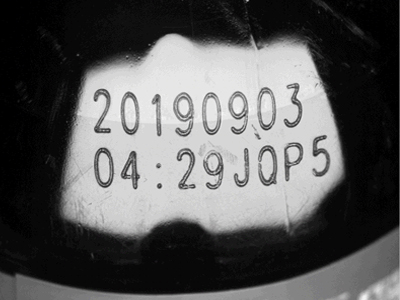

可樂瓶表面生產日期檢測

Bottom Emitting Backlight

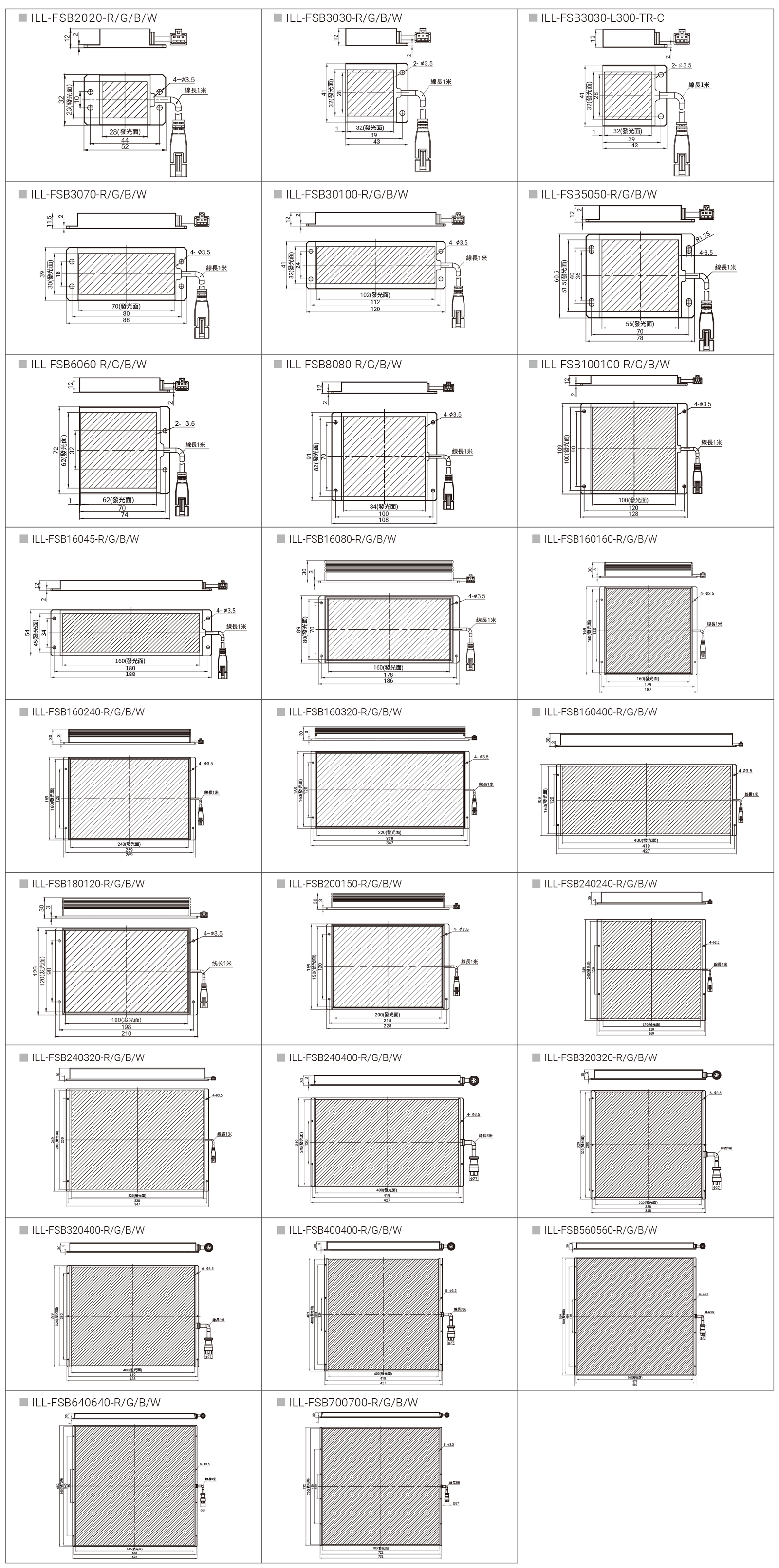

Model voltage power Length mm width mm Height mm adapter controller

R

 W G B
ILL-FSB2020-R/G/B/W 24V 1.36W 1.4W 52 32 12

單Channel<30W,
總Channel 加總<50W
可用以下控制器
ILL-DP2450-2C
ILL-DP2454-2CR-1
ILL-DP2454-4CR-1
單 Channel>30W,
* 需使用以下控制器
ILL-FCC 恆流系列
ILL-FSB3030-R/G/B/W 24V 1.23W 3.5W 43 41 12
ILL-FSB3030-L300-TR-C 24V - 18.4W 43 41 12
ILL-FSB3070-R/G/B/W 24V 2.85W 4.08W 88 39 11.5
ILL-FSB30100-R/G/B/W 24V 4.89W 5.5W 120 41 12
ILL-FSB5050-R/G/B/W 24V 4.4W 4.89W 78 60.5 12
ILL-FSB6060-R/G/B/W 24V 5.3W 5.6W 74 72 12
ILL-FSB8080-R/G/B/W 24V 7.2W 7.7W 108 91 12
ILL-FSB100100-R/G/B/W 24V 7.5W 8.5W 128 109 12
ILL-FSB16045-R/G/B/W 24V 6.6W 7.5W 188 54 12
ILL-FSB16080-R/G/B/W 24V 6.4W 8W 185 90 20
ILL-FSB160160-R/G/B/W 24V 12.8W 16W 186 170 20
ILL-FSB200150-R/G/B/W 24V 15W 18.8W 225 160 20
ILL-FSB240160-R/G/B/W 24V 19.2W 24W* 266 170 20
ILL-FSB240240-R/G/B/W 24V 28.8W 36W* 266 250 20
ILL-FSB320160-R/G/B/W 24V 25.6W 32W* 345 170 20
ILL-FSB320240-R/G/B/W 24V 38.4W* 48W* 345 250 20
ILL-FSB320320-R/G/B/W 24V 60W* 72* 345 330 27.5 ILL-FCC 恆流系列
ILL-FSB400160-R/G/B/W 24V 32W 40W* 426 170 20 ILL-FCV-15024 系列
ILL-FSB400240-R/G/B/W 24V 48W* 60W* 426 250 27.5 單 Channel>30W,
* 需使用以下控制器
ILL-FCC 恆流系列
ILL-FSB240320-R/G/B/W 24V 72W* 84W* 426 330 27.5
ILL-FSB240400-R/G/B/W 24V 84W* 108W* 425 410 27.5
ILL-FSB560560-R/G/B/W 24V 168W* 204W* 586 570 28.5
ILL-FSB640640-R/G/B/W 24V 216W* 264W* 670 650 28.5
ILL-FSB700700-R/G/B/W 24V 252W* 312W* 729 710 28.5

※提供各尺寸光源客製
