High Illumination Bar Light
High Illumination Bar Light

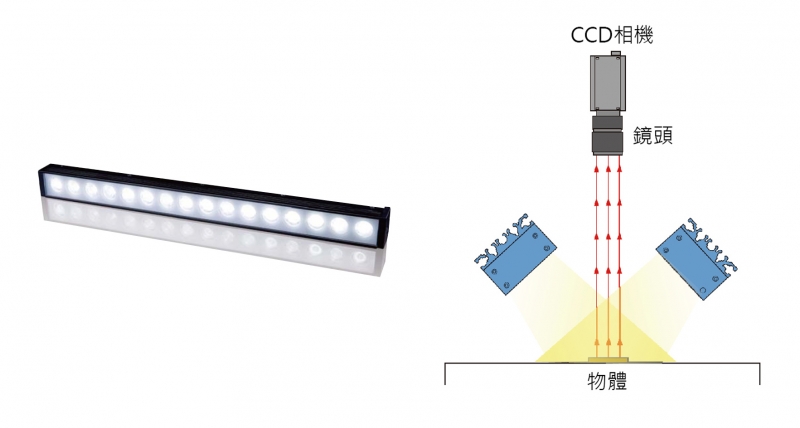

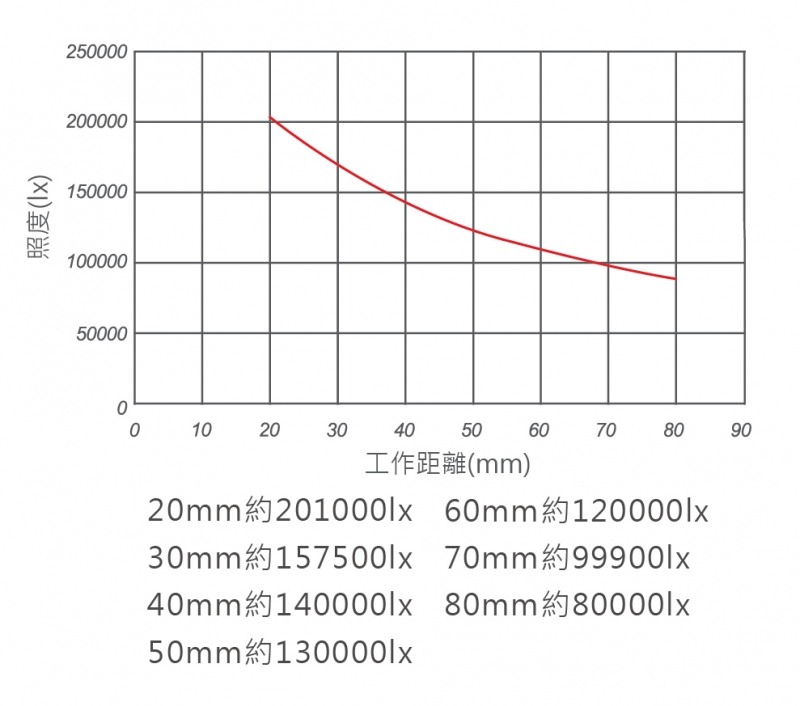

- It adopts high-power LED and condenser lens, with high brightness and long working distance lighting

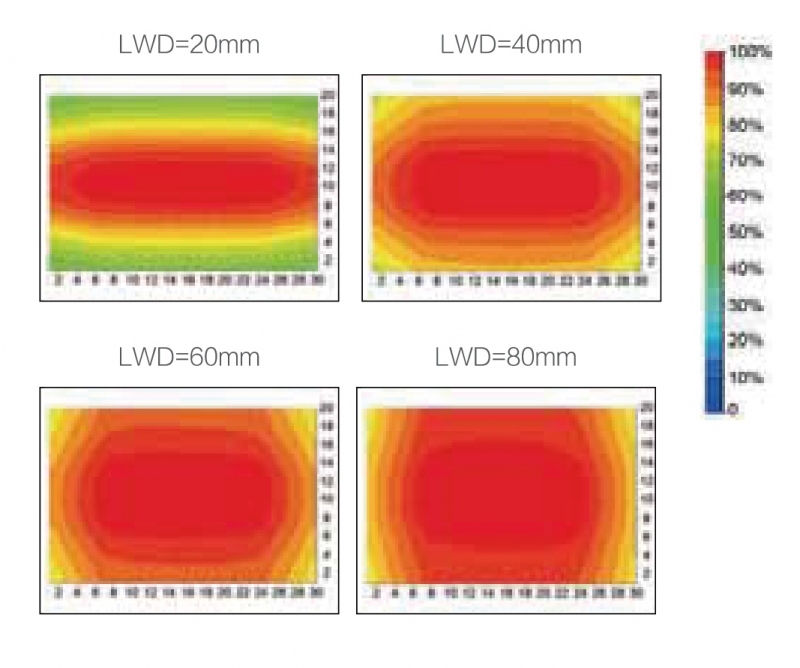

- The internal structure of the 2nd generation products is upgraded, and the spot uniformity is higher and more stable
- It is suitable for long-distance lighting, high-speed flying shooting lighting, parts detection on the substrate, various damage and defect detection, etc.
ILL-FHBA30025-R/G/B/W
ILL-FHBA30025-R/G/B/W
Imaging Case

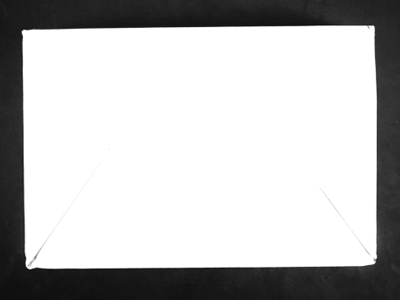

ILL-FHBA30025-W
遠距離紙箱定位檢測(工作距離1m)

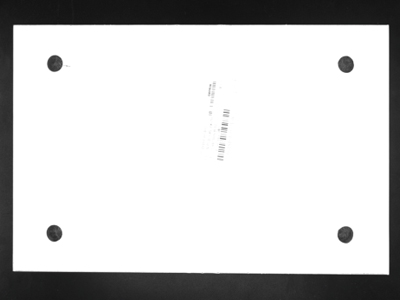

ILL-FHBA30025-W
遠距離木板定位檢測(工作距離1m)

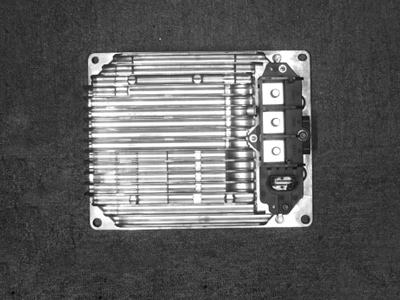

ILL-FHBA40025-W
汽車零件定位及螺絲有無檢測
(工作距離1.5m)

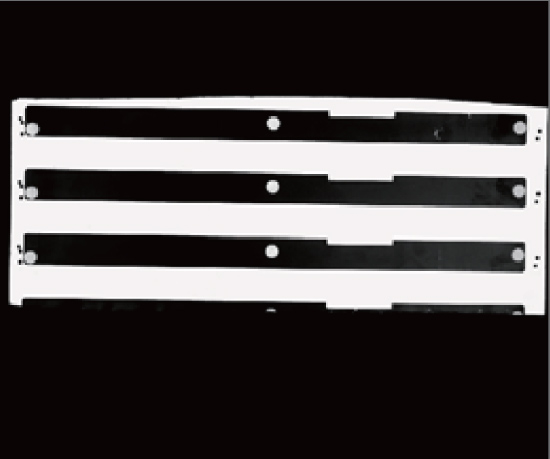

ILL-FHBA40025-W
金屬板黑膠有無檢測(工作距離2m)
High Illumination Bar Light

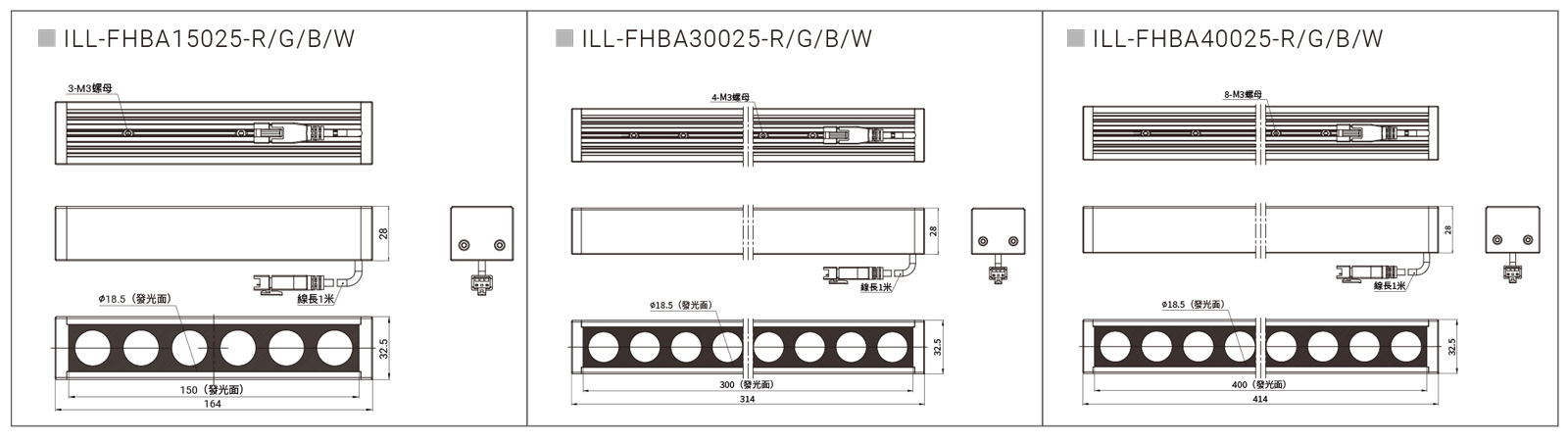

| Model | voltage | power | Length mm | width mm | Height mm | adapter controller | |
|
R |
W G B | ||||||
| ILL-FHBA15025-R/G/B/W | 24V | 7.5W | 7.5W | 164 | 32.5 | 28 |
單Channel<30W
總Channel加總 <50W 可用以下: ILL-DP2450-2C ILL-DP2454-2CR-1 ILL-DP2454-4CR-1 |
| ILL-FHBA30025-R/G/B/W | 24V | 16W | 15W | 314 | 32.5 | 28 | |
| ILL-FHBA40025-R/G/B/W | 24V | 15.2W | 15.2W | 414 | 32.5 | 28 | |
※提供各尺寸光源客製
 |
