LED Lighting Series

Combined Bar Light

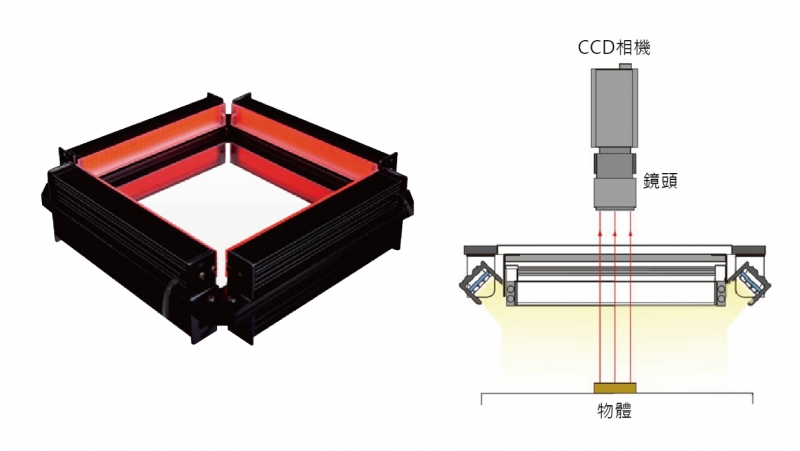

High Angle Ring Light Source

  • The light is multilaterally combined, the angle can be flexibly adjusted, and each side can be controlled independently;
  • Good uniformity, large irradiation area, large format lighting is preferred;
  • It is suitable for mark point positioning, electronic component detection, large format object positioning, identification detection, object bump point, scratch and other defects detection, etc.

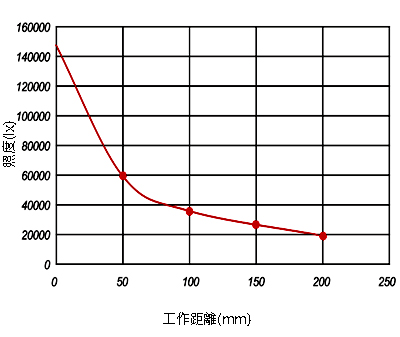

illumination changes with distance
ILL-FAL190190-R/G/B/W

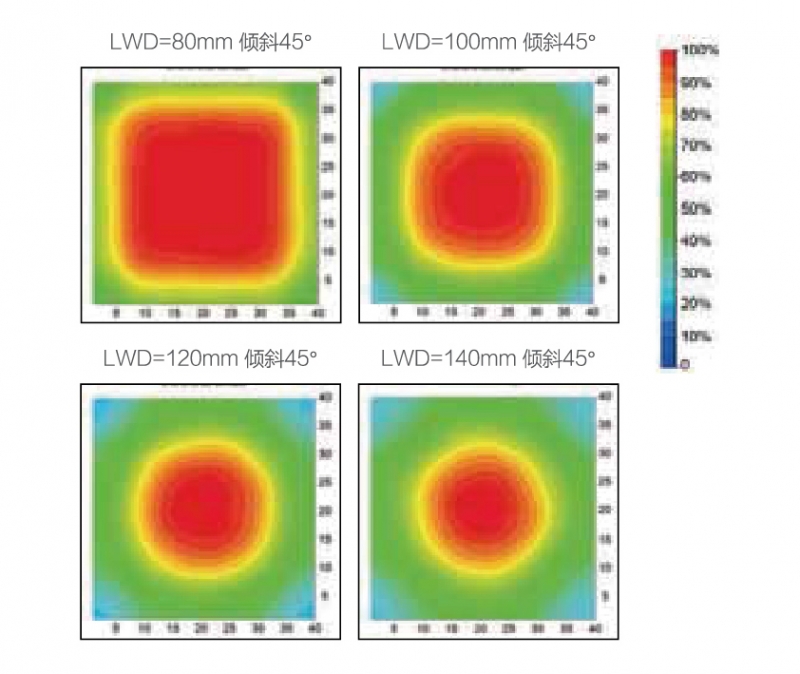

working distance and illumination distribution
ILL-FAL190190-R/G/B/W



Imaging Case



ILL-FAL100100-W ILL-FAL100100-W ILL-FAL100100-W ILL-FAL300300-W

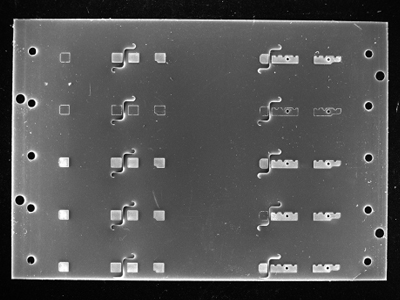

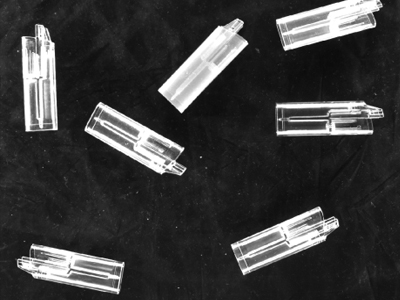

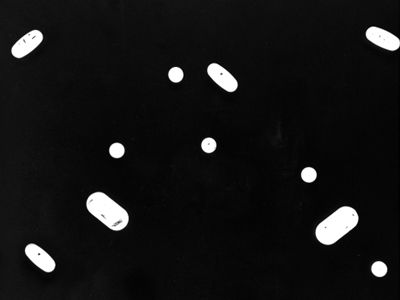

膠體有無檢測 金屬表面刮傷檢測 藥片表面黑點檢測 打火機定位檢測

ILL-FAL300300-R ILL-FAL300300-W ILL-FAL300300-W ILL-FAL400400-W

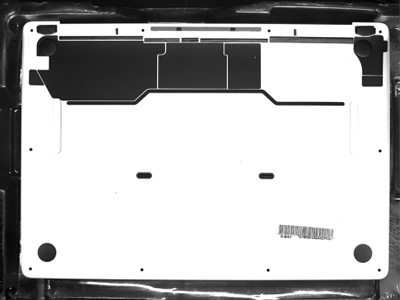

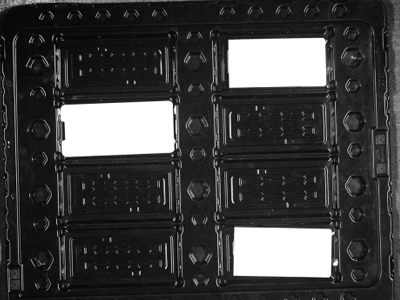

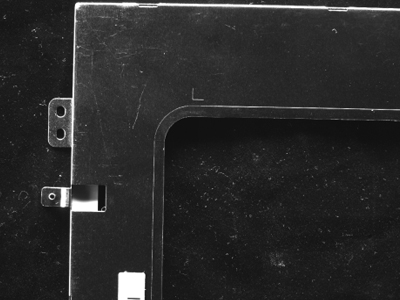

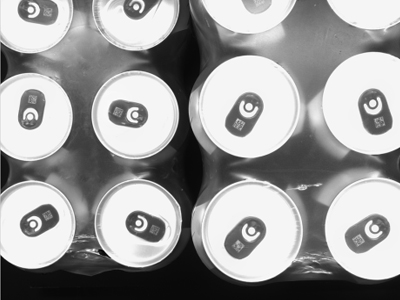

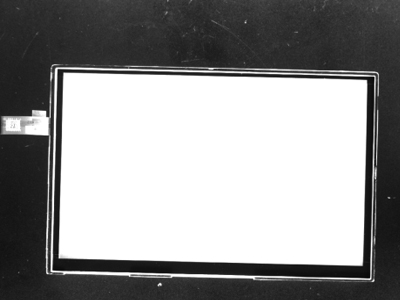

啤酒瓶蓋表面二維碼檢測 手機螢幕定位及有無檢測 顯示器黑色膠體檢測 電腦蓋板內部特徵定位檢測




Combined Bar Light

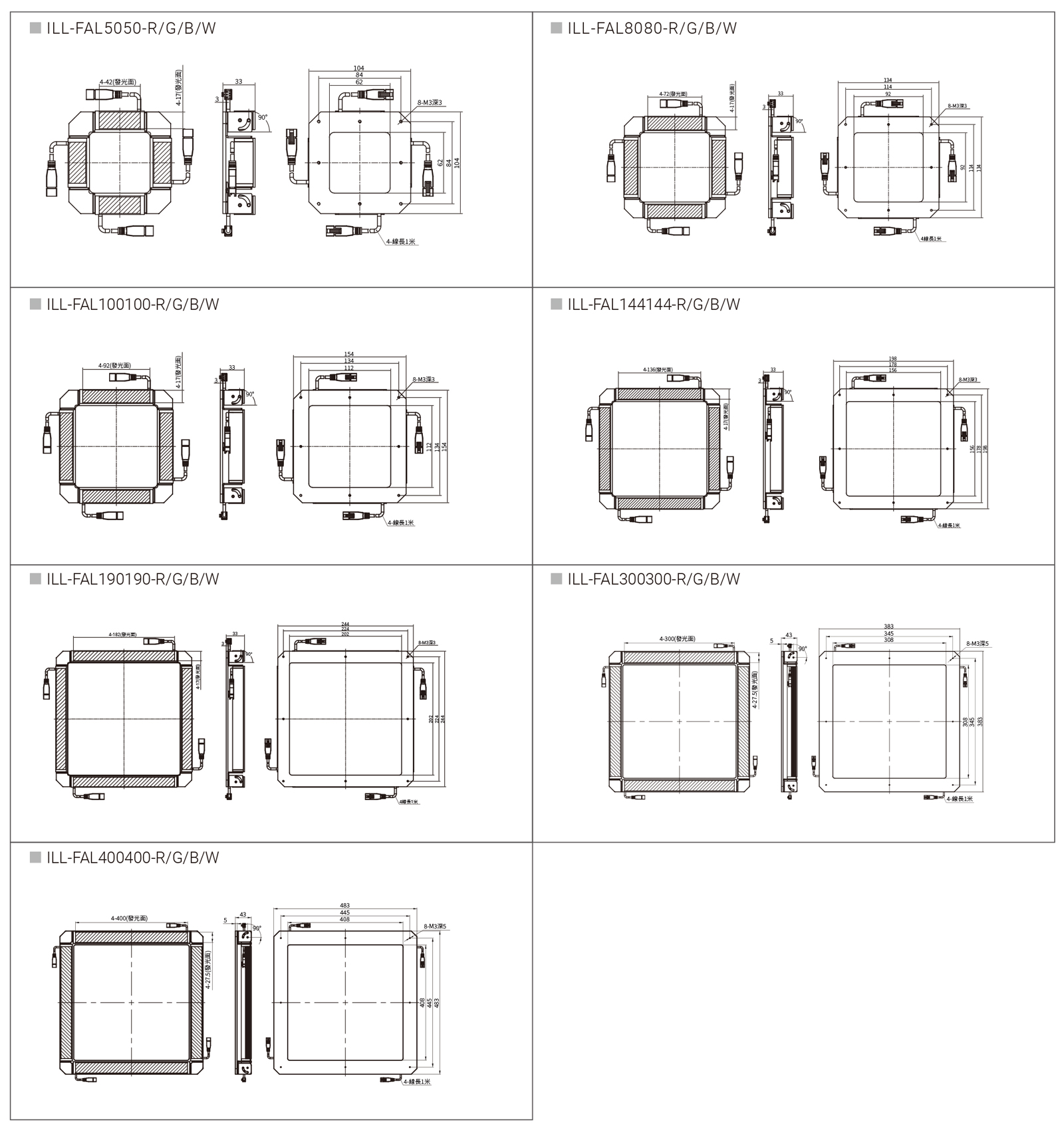

Model voltage power Dimension adapter controller
R

W G B

 Length mm width mm Height mm
ILL-FAL5050-R/G/B/W 24V 3.6W 6.3W 104 104 30  單Channel<30W,
 總Channel加總 <50W
 可用以下:
 ILL-DP2454-2CR-1
 ILL-DP2454-4CR-1
ILL-FAL8080-R/G/B/W 24V 7.6W 9.98W 134 134 30
ILL-FAL100100-R/G/B/W 24V 7.8W 11.2W 154 154 30
ILL-FAL144144-R/G/B/W 24V 11.5W 13W 198 198 30
ILL-FAL190190-R/G/B/W 24V 14.6W 15.8W 244 244 30
ILL-FAL300300-R/G/B/W 24V 43.6W* 57.6W* 383 383 43  單Channel>30W,
 *需使用以下控制器
 ILL-FCV-15024系列
ILL-FAL400400-R/G/B/W 24V 57.6W* 67.6W* 483 483 43

※提供各尺寸光源客製
