LED 光源控制器系列

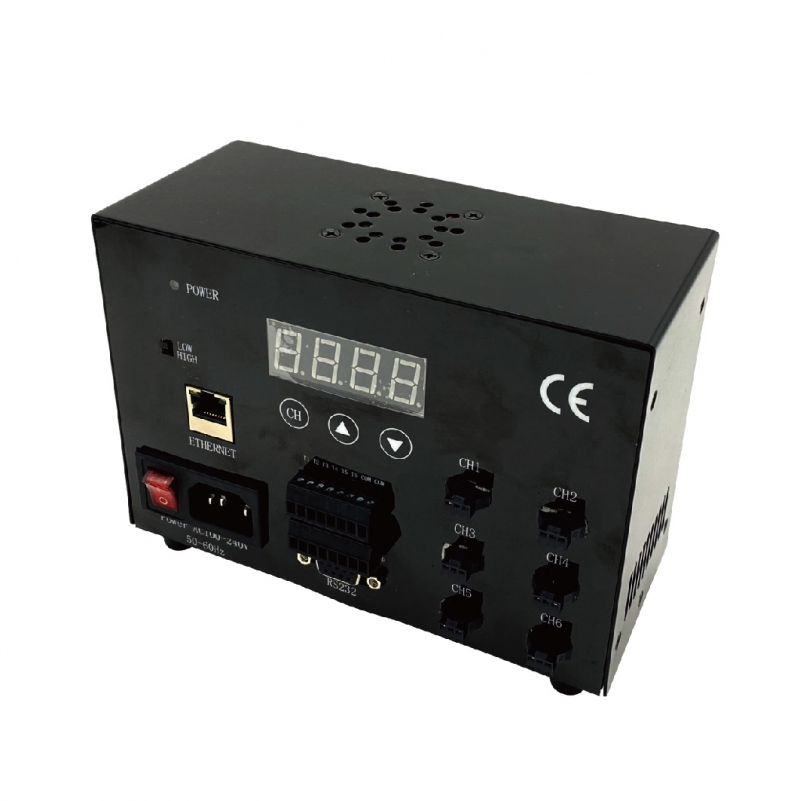

Digital Constant Voltage Controller
Digital Constant Voltage Controller
- Smaller volume and lighter weight
- Support a variety of communication modes: network port (optional)
- With functions such as overcurrent protection and short circuit protection
- Support high and low level triggering function
| Model | Diving mode | Dimming type | PWM frequency | Dimming level | Dimming mode | Communication mode | Light interface | Output channel | Input voltage | Output voltage | Maximum output total power | Single channel maximum power |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ILL-FCV-15024-6CES |
Constant pressure type | PWM pulse width adjustment | 135.6KHz | 256 level | Knob, TCP/IP | TCP/IP | SMR-03V-BC | 6 channel | AC100-240V 50/60HZ | DC 24V | 150W | 72W |
