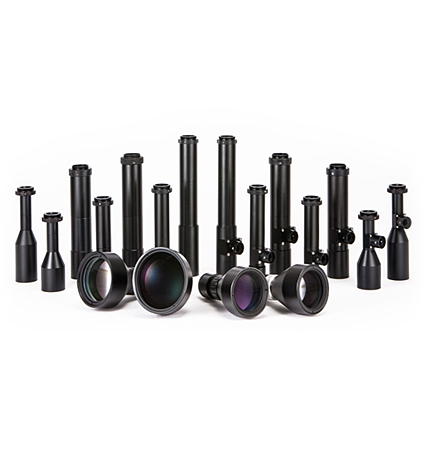

TCL-HR Telecentric Lens
TCL-HR Telecentric Lens
- Designed for mega pixel camera that is 4.65um/pixel.
- Good uniformed coaxial illumination for the F.O.V. by eliminating of the hot spot.
- will show the real imaging power in high-end inspection and alignment applications.
- SPO have lined up according to W.D and magnification which can support up to 2/3” camera.
There are various magnifications and working distance with low distortion design and high resolution & contrast over the full F.O.V.
HR vs ST brightness comparison according to F/#

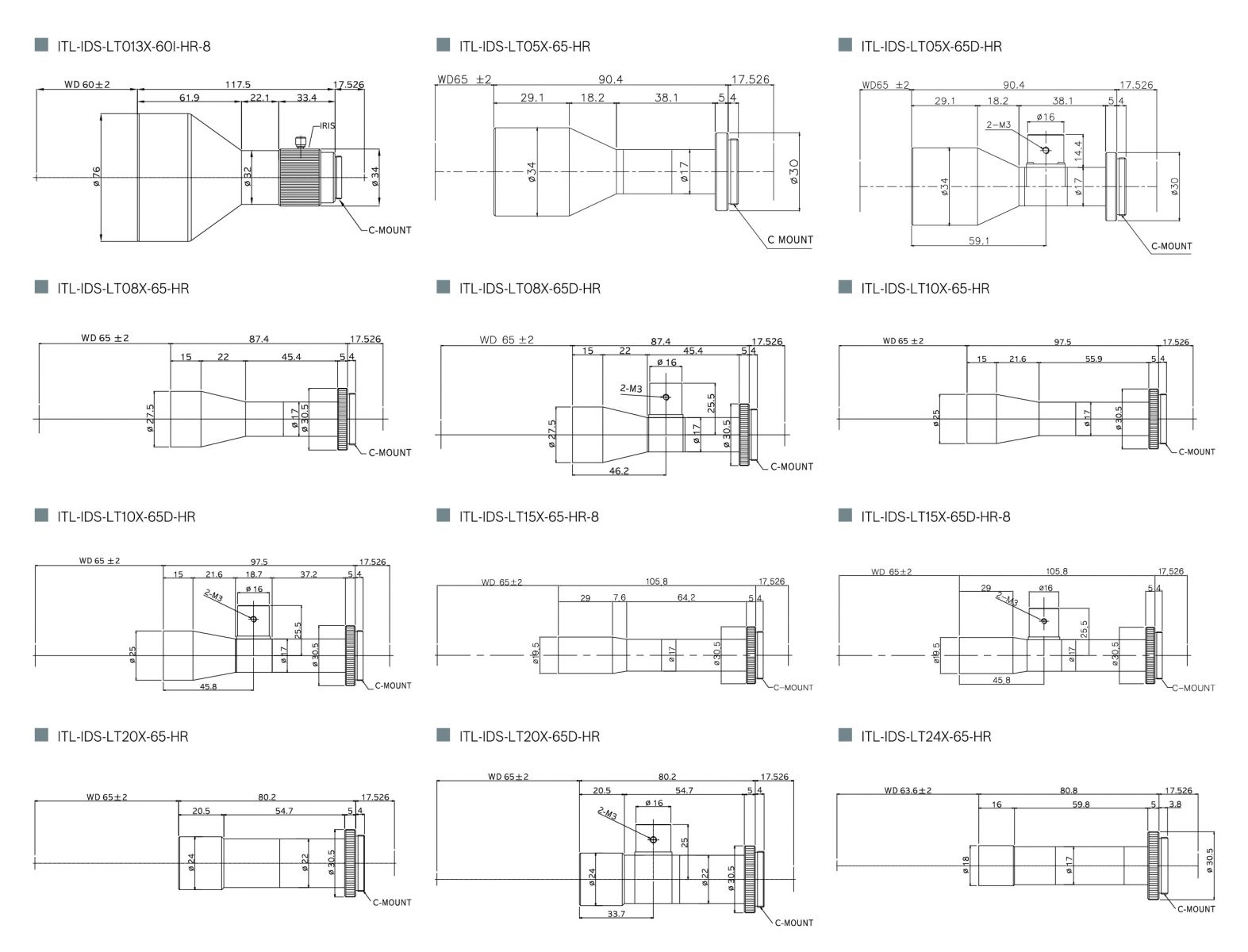

| Model | Mag | WD(mm) | Resolution (µm) | N . A . | F / # | D.O.F (mm) | Telecentricity (Degree) |
C C D | Mount |
|---|---|---|---|---|---|---|---|---|---|
| ITL-IDS-LT013X-60I-HR-8 | 0.13X | 60 | 34.6 | 0.0097 | 6.7 | 31.7 | 0.03 | 1/2"(8mm) | C |
| ITL-IDS-LT05X-65/D-HR | 0.5X | 65 | 11.2 | 0.03 | 8.3 | 2.6 | 0.04 | 2/3"(11mm) | C |
| ITL-IDS-LT08X-65/D-HR | 0.8X | 65 | 6.7 | 0.05 | 8 | 1 | 0.02 | 2/3"(11mm) | C |
| ITL-IDS-LT10X-65/D-HR | 1.0X | 65 | 6.7 | 0.05 | 10 | 800um | 0.022 | 2/3"(11mm) | C |
| ITL-IDS-LT15X-65/D-HR-8 | 1.5X | 65 | 4.8 | 0.07 | 10.7 | 380um | 0.022 | 1/2"(8mm) | C |
| ITL-IDS-LT20X-65/D-HR | 2.0X | 65 | 4.5 | 0.074 | 13.5 | 270um | 0.05 | 2/3"(11mm) | C |
| ITL-IDS-LT24X-65/D-HR | 2.4X | 65 | 4.8 | 0.07 | 17.1 | 237um | 0.015 | 2/3"(11mm) | C |
| ITL-IDS-LT30X-65/D-HR-8 | 3.0X | 65 | 4 | 0.083 | 18 | 160um | 0.02 | 1/2"(8mm) | C |
| ITL-IDS-LT40X-65/D-HR | 4.0X | 65 | 3 | 0.11 | 18.1 | 90um | 0.05 | 2/3"(11mm) | C |
| ITL-IDS-LT60X-65/D-HR | 6.0X | 65 | 3 | 0.11 | 27.2 | 61um | 0.05 | 2/3"(11mm) | C |
| ITL-IDS-LT100X-65/D-HR-8 | 10.0X | 65 | 2.2 | 0.15 | 33.3 | 27um | 0.01 | 1/2"(8mm) | C |
| ITL-IDS-LT120X-65/D-HR-8 | 12.0X | 65 | 2.1 | 0.161 | 37.3 | 21um | 0.01 | 1/2"(8mm) | C |
| ITL-IDS-LT35X-110/D-HR-8 | 0.35X | 110 | 21.1 | 0.0159 | 11 | 7.2 | 0.03 | 1/2"(8mm) | C |
| ITL-IDS-LT05X-110/D-HR-6 | 0.5X | 110 | 11.2 | 0.03 | 8.3 | 2.6 | 0.03 | 1/3"(6mm) | C |
| ITL-IDS-LT05X-110/D-HR | 0.5X | 110 | 14.9 | 0.0225 | 11.1 | 3.5 | 0.03 | 2/3"(11mm) | C |
| ITL-IDS-LT08X-110/D-HR | 0.8X | 110 | 11.2 | 0.03 | 13.3 | 1.6 | 0.017 | 2/3"(11mm) | C |
| ITL-IDS-LT10X-110/D-HR | 1.0X | 110 | 6.7 | 0.05 | 10 | 800um | 0.03 | 2/3"(11mm) | C |
| ITL-IDS-LT15X-110/D-HR | 1.5X | 110 | 7 | 0.048 | 15.6 | 555um | 0.01 | 2/3"(11mm) | C |
| ITL-IDS-LT15X-110/D-HR-8 | 1.5X | 110 | 5.6 | 0.06 | 12.5 | 444um | 0.02 | 1/2"(8mm) | C |
| ITL-IDS-LT20X-110/D-HR | 2.0X | 110 | 4.4 | 0.077 | 13 | 260um | 0.02 | 2/3"(11mm) | C |
| ITL-IDS-LT30X-110/D-HR-8 | 3.0X | 110 | 3.7 | 0.09 | 16.6 | 148um | 0.02 | 1/2"(8mm) | C |
| ITL-IDS-LT40X-110/D-HR | 4.0X | 110 | 3.7 | 0.09 | 22.2 | 111um | 0.05 | 2/3"(11mm) | C |
| ITL-IDS-LT60X-110/D-HR | 6.0X | 110 | 3.7 | 0.09 | 33.3 | 74um | 0.05 | 2/3"(11mm) | C |
| ITL-IDS-LT80X-110/D-HR | 8.0X | 110 | 3.7 | 0.09 | 44.4 | 56um | 0.05 | 2/3"(11mm) | C |
| ITL-IDS-LT0165X-130I-HR-8 | 0.165X | 130 | 28 | 0.012 | 6.8 | 20 | 0.017 | 1/2"(8mm) | C |
| ITL-IDS-LT023X-130I-HR | 0.23X | 130 | 21 | 0.016 | 7.2 | 10.1 | 0.01 | 2/3"(11mm) | C |
| ITL-IDS-LT03X-130I-HR | 0.3X | 130 | 17.7 | 0.019 | 7.9 | 7 | 0.04 | 2/3"(11mm) | C |
| ITL-IDS-LT035X-130I-HR-8 | 0.35X | 130 | 14 | 0.0238 | 7.3 | 4.8 | 0.035 | 1/2"(8mm) | C |
| ITL-IDS-LT05X-170/D-HR | 0.5X | 170 | 16 | 0.0220 | 11.3 | 3.6 | 0.04 | 2/3"(11mm) | C |
