Schneider Optics

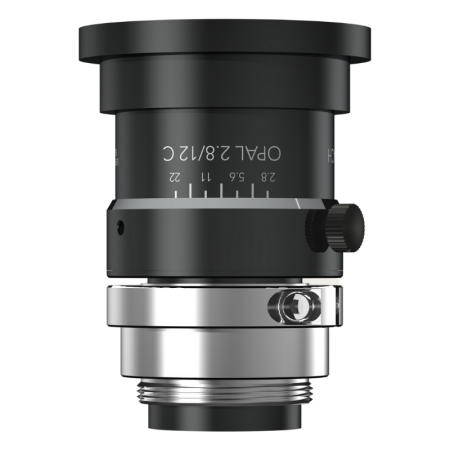

Xenon-Opal
Xenon-Opal
- 1.1" (17.6mm) max. sensor size
- Very high resolution down to 2.4µ pixel size
- Low chief ray angle suits all SONY Pregius™ generations
- C-Mount
- Focal length 12mm
- Initial aperture F2.8
APPLICATIONS
- 3D measurement
- Robotics
- Automation
- Inspection systems
- Medical
- Food & beverage

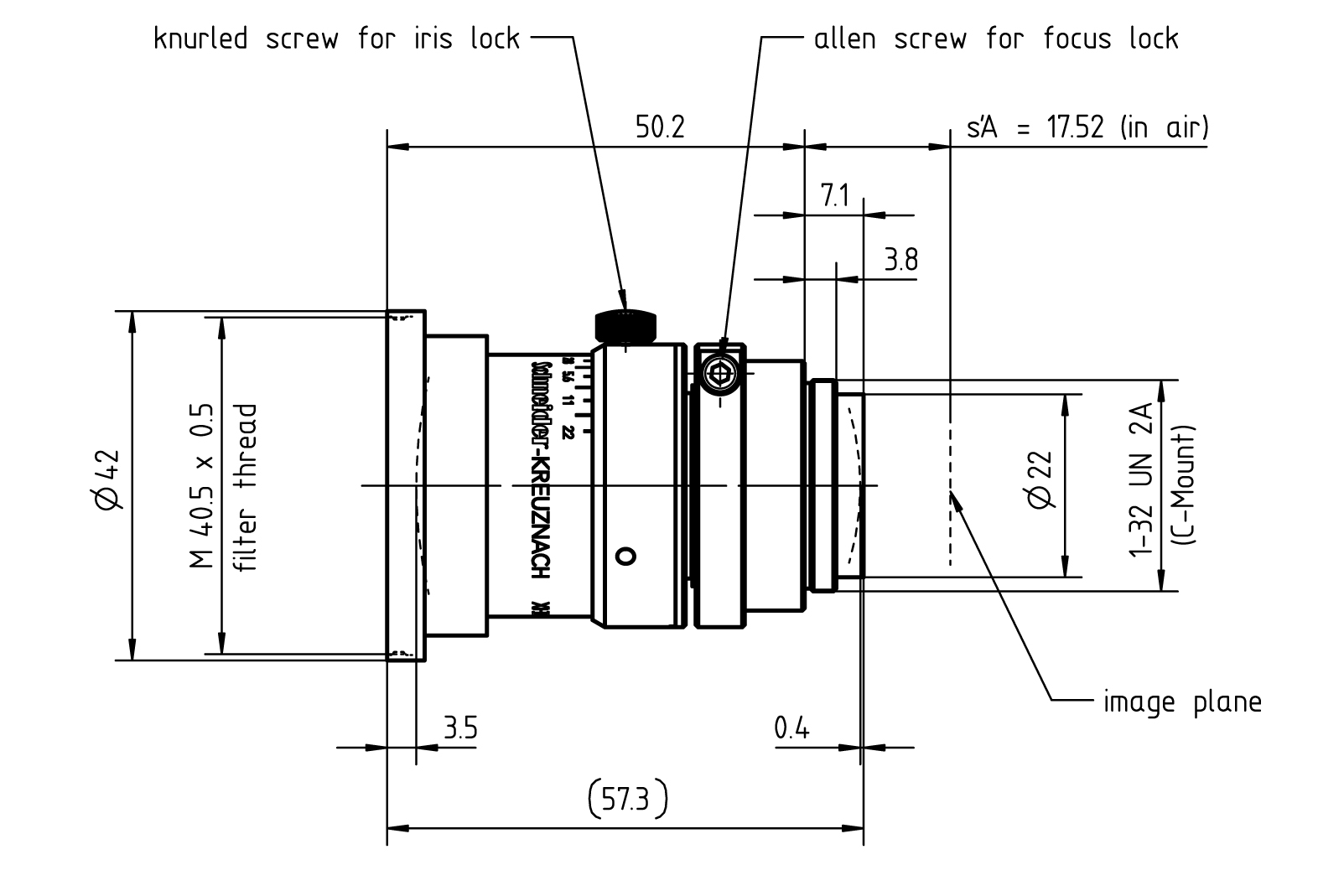

| Model | Mag | WD(mm) | Focal length(mm) | F/# range | Max. sensor size (mm) |
Filter Thread |
|---|---|---|---|---|---|---|
| Xenon-Opal2.8/12C | -0.1X | 104 ... ∞ | 12 | 2.8-22 | 17.6 | M40.5 x 0.5 |
