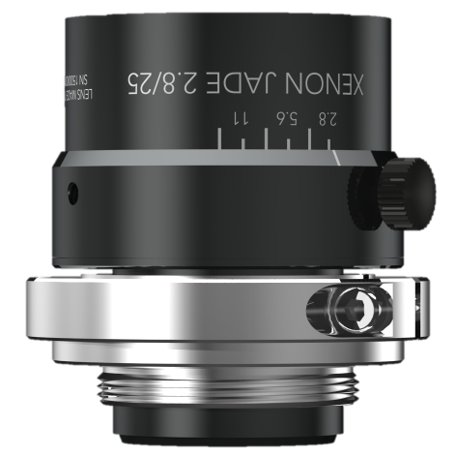

Xenon-Jade series
Xenon-Jade series
- 1.2" (19.3mm) max. sensor size
- Very high resolution down to 2.4µ pixel size
- Low chief ray angle suitable for all SONY Pregius™ generations
- C-Mount
- 5 focal lengths：12mm - 50mm
- Initial aperture F2.8
APPLICATIONS
- Machine Vision
- AOI (Automated Optical Inspection)
- 3D and 2D measurement
- Robotic Vision

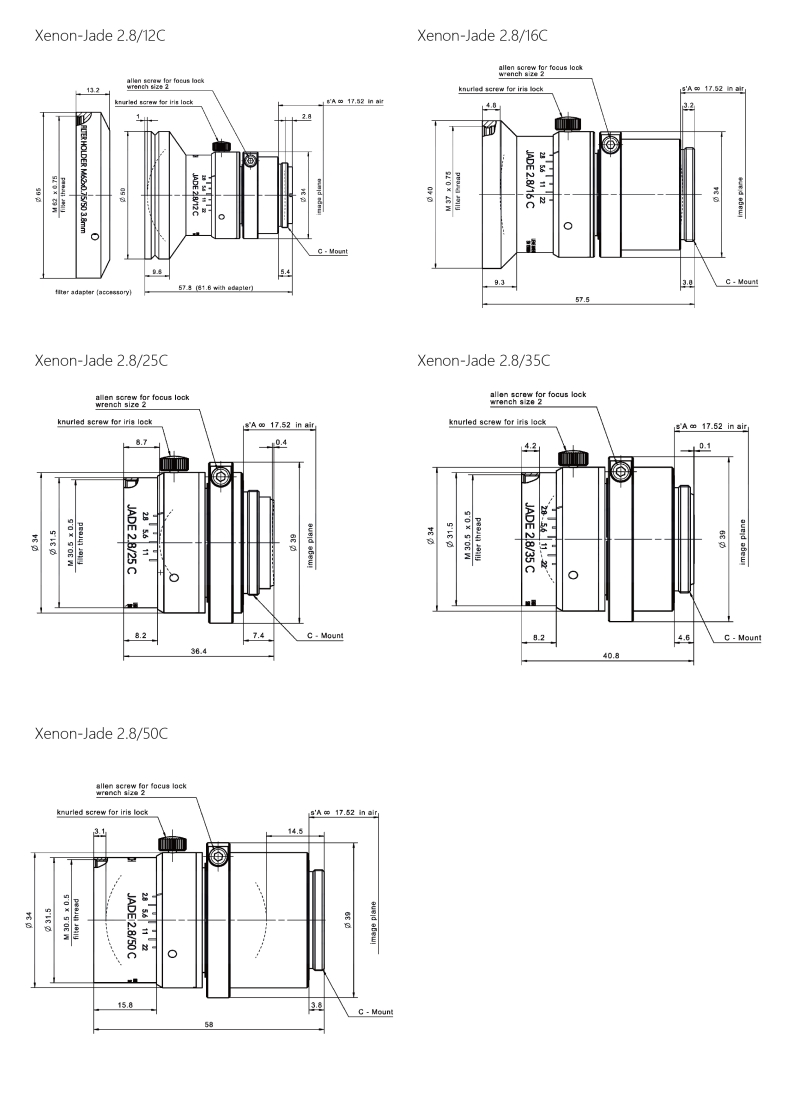

| Model | Mag | WD(mm) | Focal length(mm) | F/# range | Max. sensor size (mm) |
Filter Thread |
|---|---|---|---|---|---|---|
| Xenon-Jade 2.8/12C | 0.05 ... -0.01X | 230 ... 1230 | 12 | 2.8-22 | 19.3 | M62 x 0.75 |
| Xenon-Jade 2.8/16C | 0.1X | 150 ... ∞ | 16 | 2.8-22 | 19.3 | M37 x 0.5 |
| Xenon-Jade 2.8/25C | 0.2X | 120 ... ∞ | 25 | 2.8-16 | 19.3 | M30.5 x 0.5 |
| Xenon-Jade 2.8/35C | 0.2X | 175 ... ∞ | 35 | 2.8-22 | 19.3 | M30.5 x 0.5 |
| Xenon-Jade 2.8/50C | 0.2X | 270 ... ∞ | 50 | 2.8-22 | 19.3 | M30.5 x 0.5 |
