Schneider Optics

TOURMALINE Series

TOURMALINE Series

  • 1.3" (24mm) max. sensor size
  • Resolution down to 2.4µ pixel size
  • Low chief ray angle suits all SONY Pregius™ generations
  • C-Mount and TFL-Mount available
  • 8 focal lengths: 16mm - 50mm
  • Initial aperture F2 - F2.8
  • Ruggedized / motorized iris for selected focal lengths

APPLICATIONS

  • Machine Vision
  • AOI (Automated Optical Inspection)
  • 3D and 2D measurement
  • Traffic and surveillance

TOURMALINE Series

Model Mag WD(mm) D.O.F(mm) F/# range Max. sensor size
(mm)		 mount Filter Thread

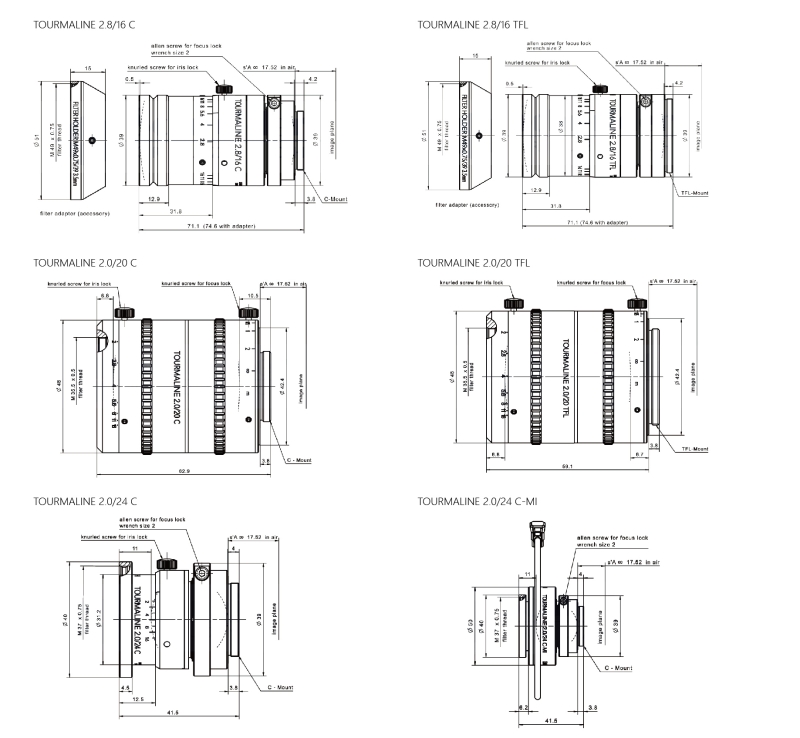

TOURMALINE 2.8/16 C 0.1X 150 ... ∞ 16 2.8-16 24 C M49 x 0.75
TOURMALINE 2.8/16 TFL 0.1X 150 ... ∞ 16 2.8-16 24 TFL M49 x 0.75

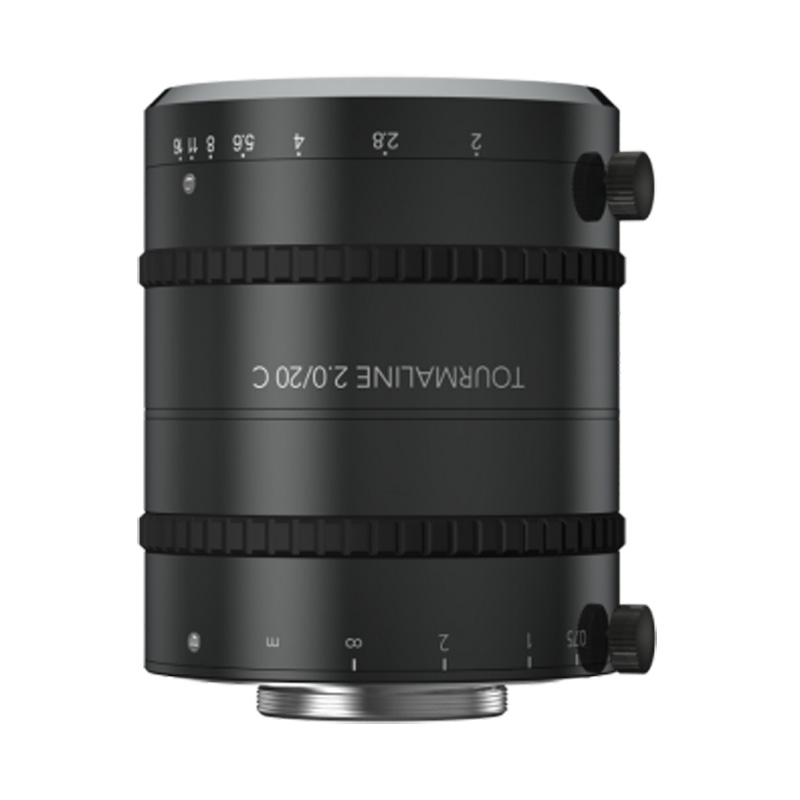

TOURMALINE 2.0/20 C 0.1X 194 ... ∞ 20 2.0-16 24 C M35.5 x 0.5
TOURMALINE 2.0/20 TFL 0.1X 194 ... ∞ 20 2.0-16 24 TFL M35.5 x 0.5
TOURMALINE 2.0/24 C 0.2X 111 ... ∞ 24 2.0-16 24 C M37 x 0.75
TOURMALINE 2.0/24 C-MI 0.2X 111 ... ∞ 24 2.0-16 24 C M37 x 0.75

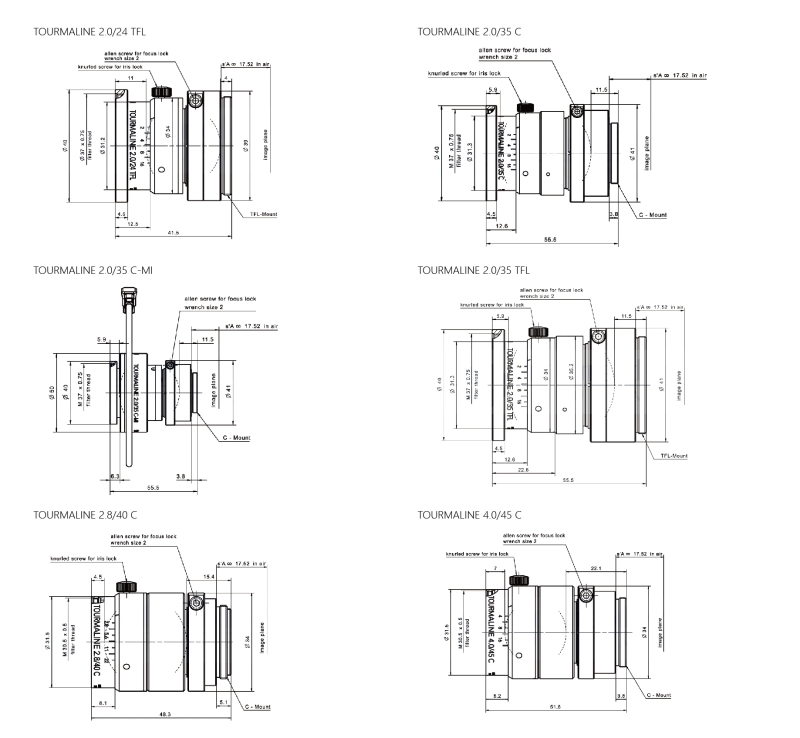

TOURMALINE 2.0/24 TFL 0.2X 111 ... ∞ 24 2.0-16 24 TFL M37 x 0.75
TOURMALINE 2.0/35 C 0.2X 168 ... ∞ 35 2.0-22 24 C M37 x 0.75
TOURMALINE 2.0/35 C-MI 0.2X 168 ... ∞ 35 2.0-22 24 C M37 x 0.75
TOURMALINE 2.0/35 TFL 0.2X 168 ... ∞ 35 2.0-22 24 TFL M37 x 0.75
TOURMALINE 2.8/40 C 0.5X 103 ... ∞ 40 2.8-22 24 C M30.5 x0.5
TOURMALINE 4.0/45 C 0.5X 120 ... ∞ 45 4.0-22 24 C M30.5 x 0.5

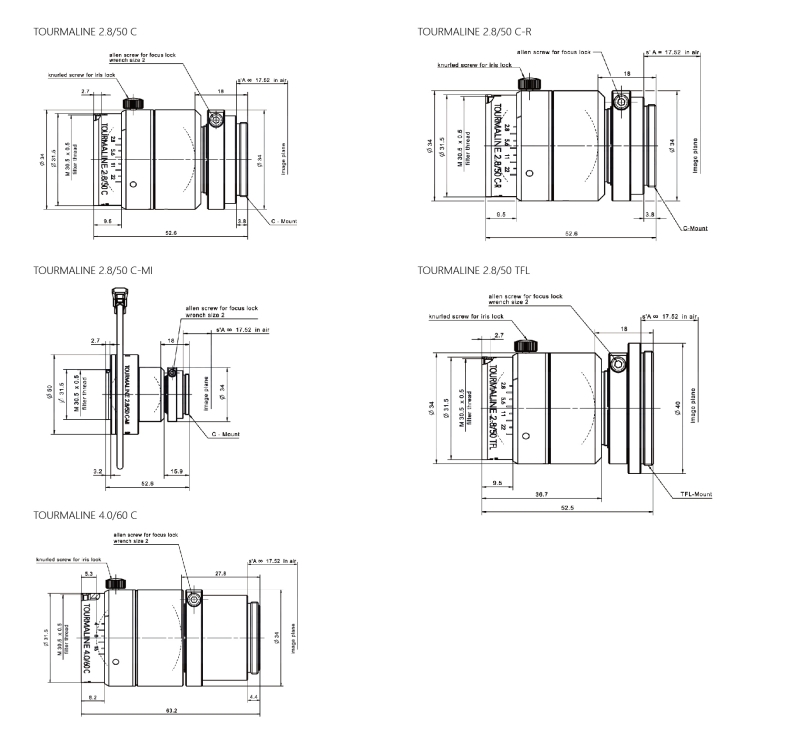

TOURMALINE 2.8/50 C 0.5X 131 ... ∞ 50 2.8-32 24 C M30.5 x 0.5
TOURMALINE 2.8/50 C-R 0.5X 131 ... ∞ 50 2.8-32 24 C M30.5 x 0.5
TOURMALINE 2.8/50 C-MI 0.5X 131 ...  ∞ 50 2.8-32 24 C M30.5 x 0.5
TOURMALINE 2.8/50 TFL 0.5X 131 ... ∞ 50 2.8-32 24 TFL M30.5 x 0.5
TOURMALINE 4.0/60 C 0.5X 162 ... ∞ 60 4.0-22 24 C M30.5 x 0.5
