Schneider Optics
AQUAMARINE Series
AQUAMARINE Series
- 1.3" (24mm) max. sensor size
- C-Mount and TFL-Mount available
- 2 focal lengths: 28mm and 35mm
- Initial aperture F2
- ruggedized version for 28mm lens
- motorized iris available for 28mm lens
APPLICATIONS
- Machine Vision
- AOI (Automated Optical Inspection)
- 3D and 2D measurement
- Traffic and surveillance

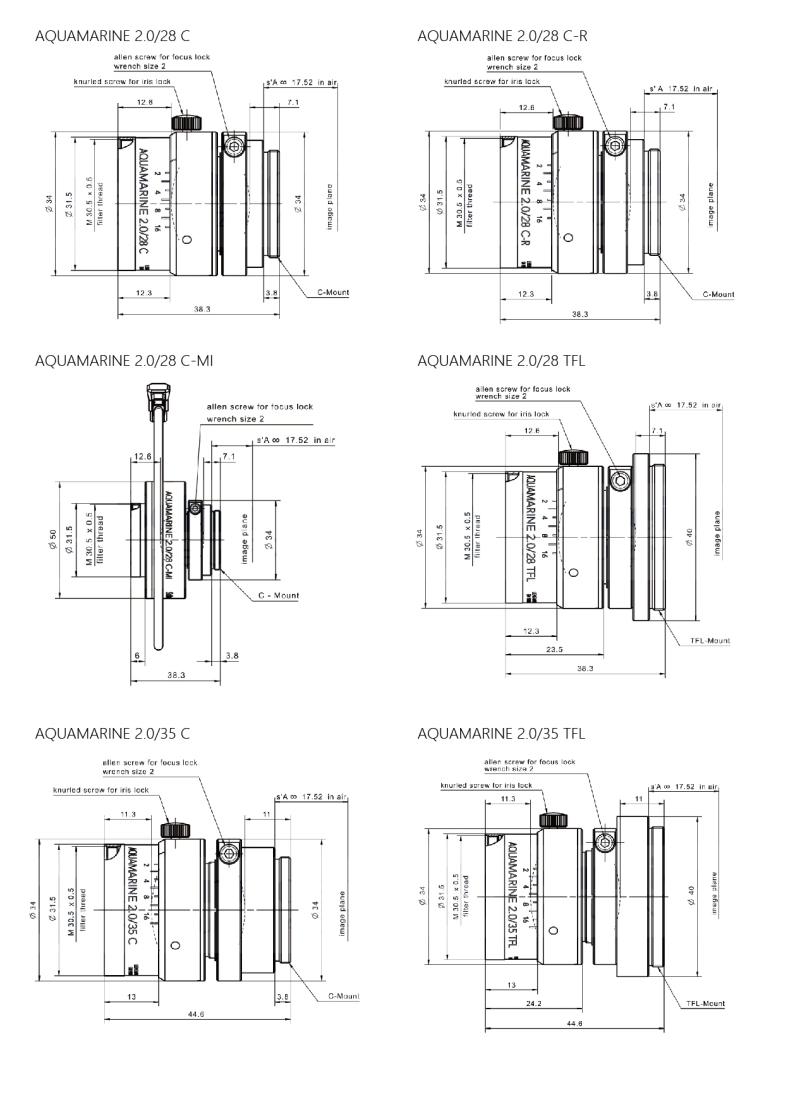

| Model | Mag | Focal length(mm) | WD(mm) | F/# range | Max. sensor size (mm) |
mount | Filter Thread |
|---|---|---|---|---|---|---|---|
| AQUAMARINE 2.0/28 C | 0.2X | 28 | 150 ... ∞ | 2-16 | 24 | C | M30.5 x 0.5 |
| AQUAMARINE 2.0/28 C-R | 0.2X | 28 | 150 ... ∞ | 2-16 | 24 | C | M30.5 x 0.5 |
| AQUAMARINE 2.0/28 C-MI | 0.2X | 28 | 150 ... ∞ | 2-16 | 24 | C | M30.5 x 0.5 |
| AQUAMARINE 2.0/28 TFL | 0.2X | 28 | 150 ... ∞ | 2-16 | 24 | TFL | M30.5 x 0.5 |
| AQUAMARINE 2.0/35 C | 0.2X | 35 | 183 ... ∞ | 2-22 | 24 | C | M30.5 x 0.5 |
| AQUAMARINE 2.0/35 TFL | 0.2X | 35 | 183 ... ∞ | 2-22 | 24 | TFK | M30.5 x 0.5 |
