Schneider Optics

CITRINE Series

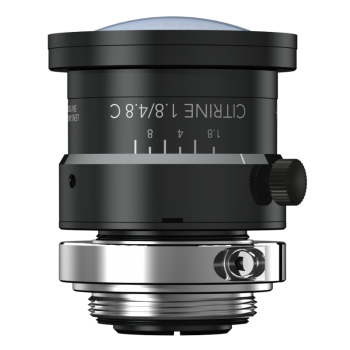

CITRINE Series

  • 2/3" (11mm) max. sensor size
  • C-Mount
  • 6 focal lengths: 4.8mm - 35mmgths: 28mm, 35mm
  • Initial apertures: F1.4 - F1.9
  • Ruggedized and stabilized versions and motorized iris available

APPLICATIONS

  • 2D and 3D metrology
  • Robotics vision
  • Industrial automation
  • Traffic and surveillance

CITRINE Series

Model Mag WD(mm) Focal length(mm) F/# range Max. sensor size
(mm)		 Mount Filter Thread

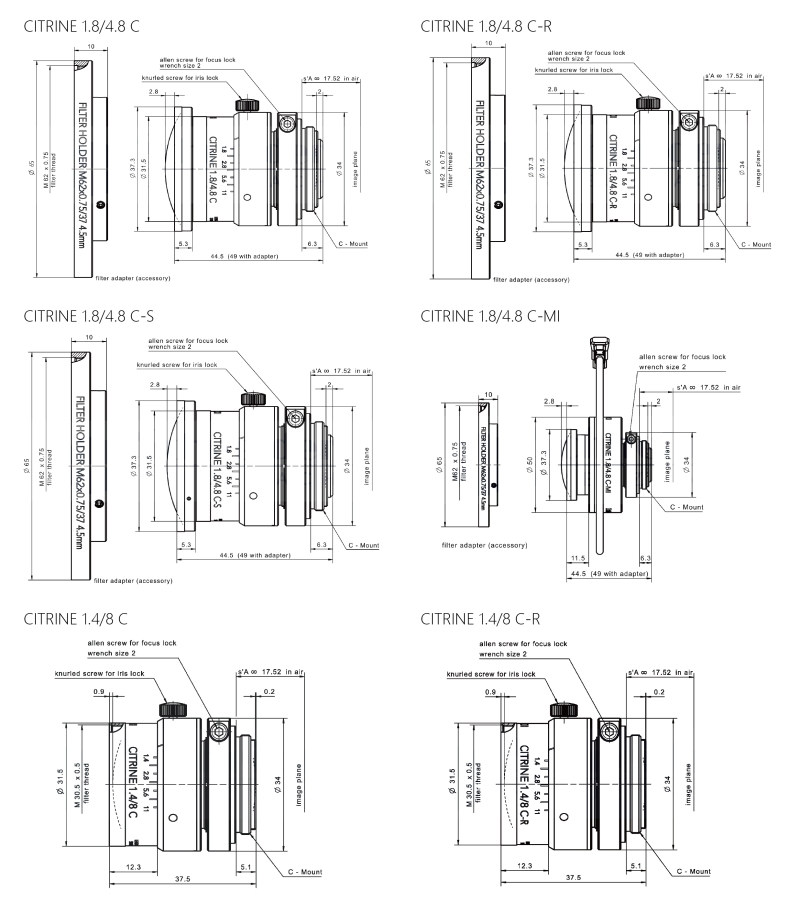

CITRINE 1.8/4.8 C 0.1X 34 ... ∞ 4.8 1.8-11 11 C M62 x 0.75
CITRINE 1.8/4.8 C-R 0.1X 34 ... ∞ 4.8 1.8-11 11 C M62 x 0.75
CITRINE 1.8/4.8 C-S 0.1X 34 ... ∞ 4.8 1.8-11 11 C M62 x 0.75
CITRINE 1.8/4.8 C-MI 0.1X 34 ... ∞ 4.8 1.8-11 11 C M62 x 0.75
CITRINE 1.4/8 C 0.1X 70 ... ∞ 8 1.4-11 11 C M30.5 x 0.5
CITRINE 1.4/8 C-R 0.1X 70 ... ∞ 8 1.4-11 11 C M30.5 x 0,5

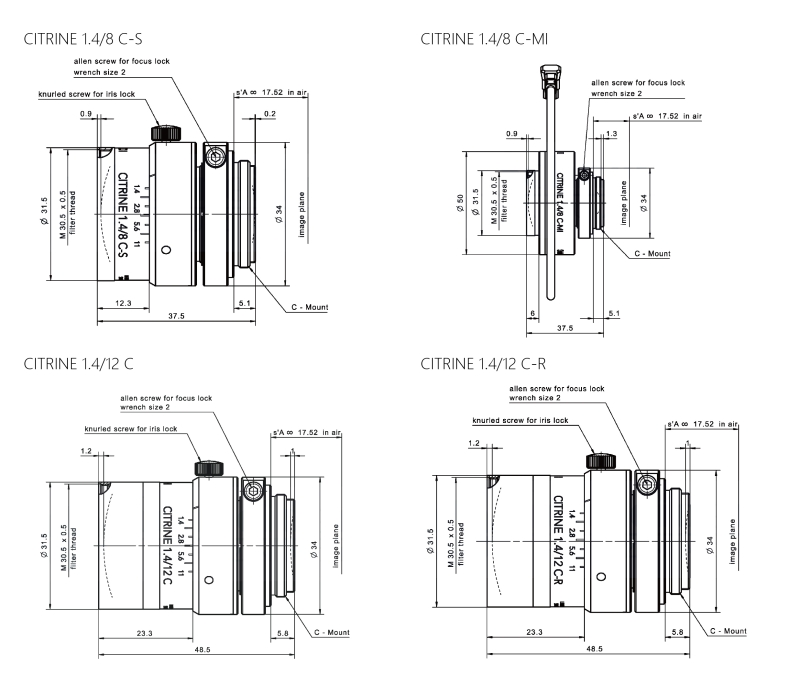

CITRINE 1.4/8 C-S 0.1X 70 ... ∞ 8 1.4-11 11 C M30.5 x 0,5
CITRINE 1.4/8 C-MI 0.1X 70 ... ∞ 8 1.4-11 11 C M30.5 x 0,5
CITRINE 1.4/12 C 0.1X 106 ... ∞ 12 1.4-11 11 C M30.5 x 0.5
CITRINE 1.4/12 C-R 0.1X 106 ... ∞ 12 1.4-11 11 C M30.5 x 0.5

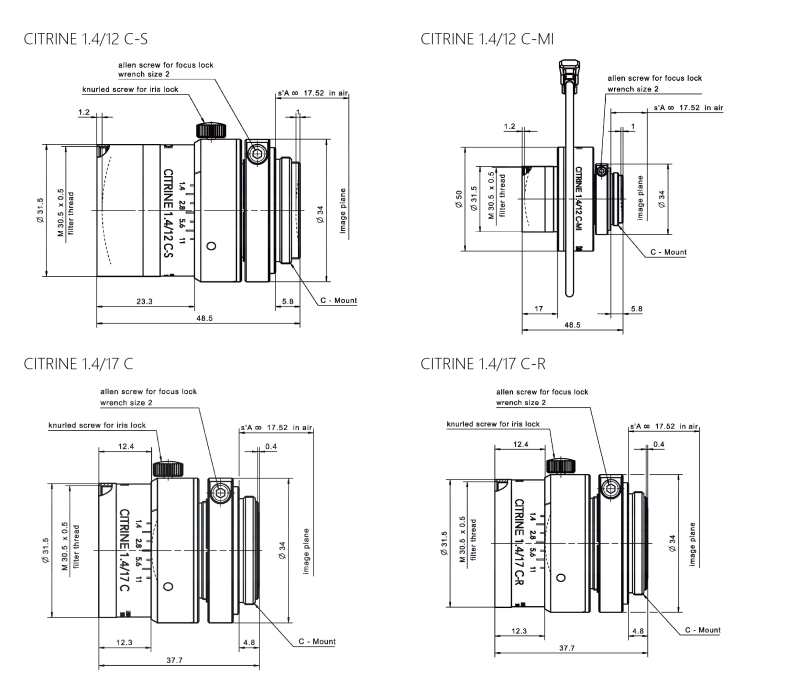

CITRINE 1.4/12 C-S 0.1X 106 ... ∞ 12 1.4-11 11 C M30.5 x 0.5
CITRINE 1.4/12 C-MI 0.1X 105 ... ∞ 12 1.4-11 11 C M30.5 x 0.5
CITRINE 1.4/17 C 0.1X 157 ... ∞ 17 1.4-11 11 C M30.5 x 0.5
CITRINE 1.4/17 C-R 0.1X 157 ... ∞ 17 1.4-11 11 C M30.5 x 0.5

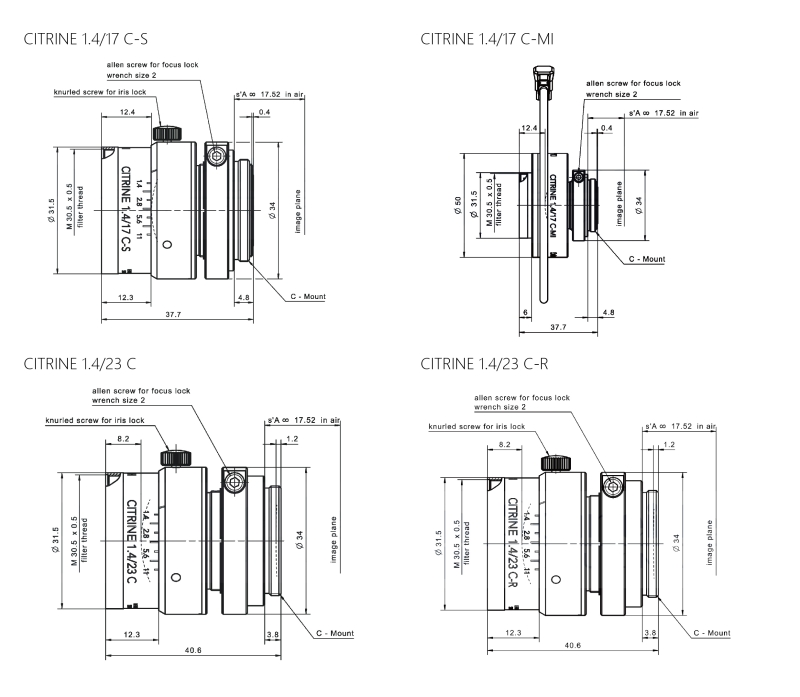

CITRINE 1.4/17 C-S 0.1X 157 ... ∞ 17 1.4-11 11 C M30.5 x 0.5
CITRINE 1.4/17 C-MI 0.1X 157 ... ∞ 17 1.4-11 11 C M30.5 x 0.5
CITRINE 1.4/23 C 0.1X 207 ... ∞ 23 1.4-11 11 C M30.5 x 0.5
CITRINE 1.4/23 C-R 0.1X 207 ... ∞ 23 1.4-11 11 C M30.5 x 0.5

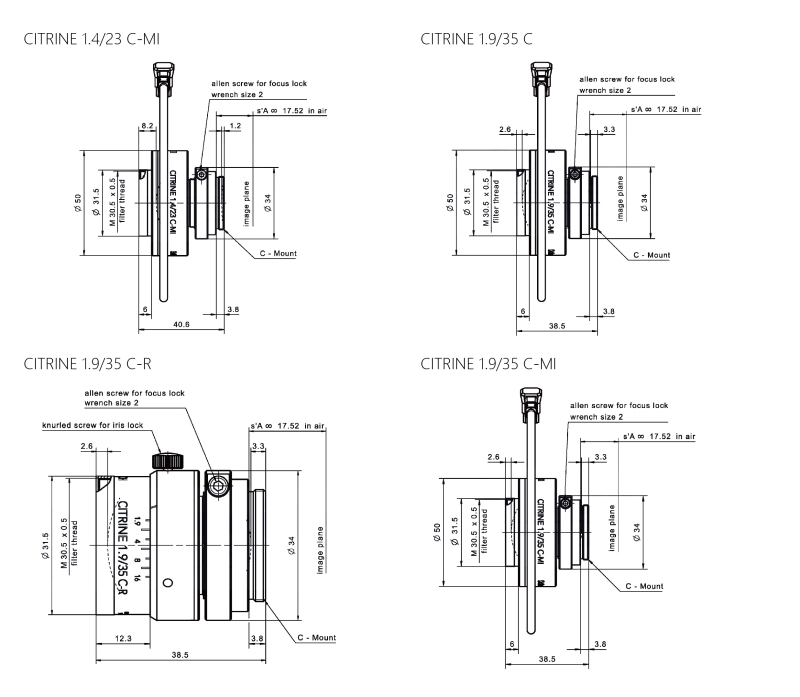

CITRINE 1.4/23 C-MI 0.1X 207 ... ∞ 23 1.4-11 11 C M30.5 x 0.5
CITRINE 1.9/35 C 0.1X 354 ... ∞ 35 1.9-16 11 C M30.5 x 0.5
CITRINE 1.9/35 C-R 0.1X 354 ... ∞ 35 1.9-16 11 C M30.5 x 0.5
CITRINE 1.9/35 C-MI 0.1X 354 ... ∞ 35 1.9-16 11 C M30.5 x 0.5
