Schneider Optics

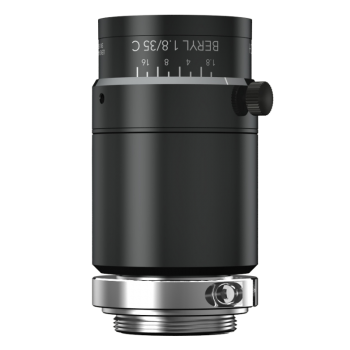

BERYL Series
BERYL Series
- 2/3" (11mm) max. sensor size
- Very high resolution down to 2.4µ pixel size
- C-Mount
- Focal length 35mm
- Initial aperture F1.8
- Ruggedized version and motorized iris available
APPLICATIONS
- 2D/3D metrology
- Robotics vision
- Industrial automation
- Traffic and surveillance
| Model | Mag | WD(mm) | Focal length(mm) | F/# range | Max. sensor size (mm) |
mount | Filter Thread |
|---|---|---|---|---|---|---|---|
| BERYL 1.8/35 C | 0.1X | 329 ... ∞ | 35 | 1.8-22 | 11 | C-Mount | M30.5 x 0.5 |
| BERYL 1.8/35 C-R | 0.1X | 329 ... ∞ | 35 | 1.8-22 | 11 | C-Mount | M30.5 x 0.5 |
| BERYL 1.8/35 C-MI | 0.1X | 329 ... ∞ | 35 | 1.8-11 | 11 | C-Mount | M30.5 x 0.5 |
