Xenon-Diamond Series
Xenon-Diamond Series
- Extremely high resolution down to 3.5µ pixel size
- Image circle: 62.5mm - 82mm
- Optimized for specific magnifications
- 5 magnifications available: 2.6x - 5.2x
- Versions with beampslitter available
- Best azimuth marking
- V-Mount for easy installation
APPLICATIONS
- FPD inspection
- PCB inspection
- Micro defect detection
- AOI (Automated Optical Inspection)

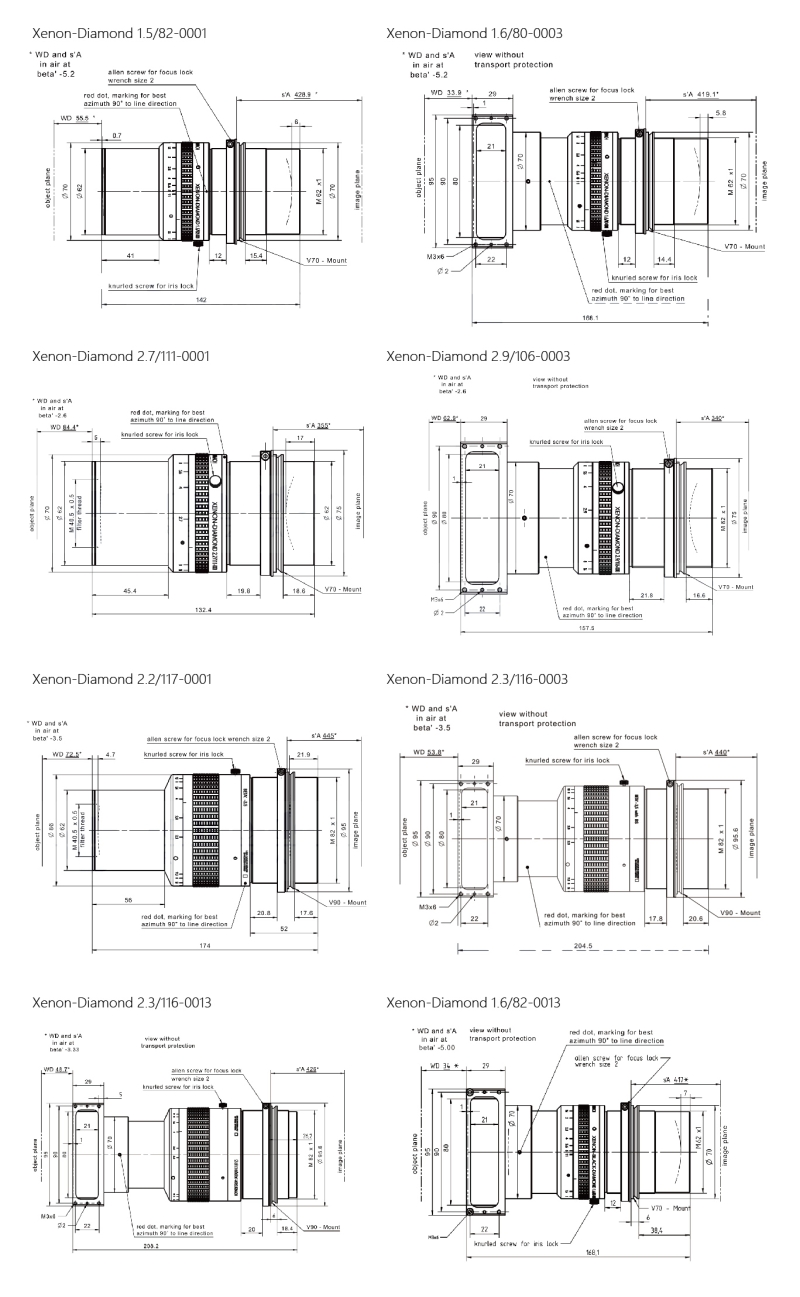

| Model | Mag | Focal length(mm) | F/# range | Max. sensor size | Mount | Filter Thread |
|---|---|---|---|---|---|---|
| Xenon-Diamond 1.5/82-0001 | 5.2X | 82 | 1.5-11 | 62.5 | V70-Mount | M58x0,75 |
| Xenon-Diamond 1.6/80-0003 | 5.2X | 80 | 1.6-11 | 62.5 | V70-Mount | M58x0,75 |
| Xenon-Diamond 2.7/111-0001 | 2.6X | 111 | 2.7-8 | 62.5 | V70-Mount | M40.5 x 0.5 |
| Xenon-Diamond 2.9/106-0003 | 2.6X | 106 | 2.9-8 | 62.5 | V70-Mount | - |
| Xenon-Diamond 2.2/117-0001 | 3.5X | 117 | 2.2-11.3 | 62.5 | V90-Mount | M40.5 x 0.5 |
| Xenon-Diamond 2.3/116-0003 | 3.5X | 116 | 2.3-11.3 | 62.5 | V90-Mount | - |
| Xenon-Diamond 2.3/116-0013 | 3.33X | 116 | 2.3-11 | 82 | V90-Mount | - |
| Xenon-Diamond 1.6/82-0013 | 5X | 82 | 1.6-11 | 82 | V90- | M58 x 0.75 |
