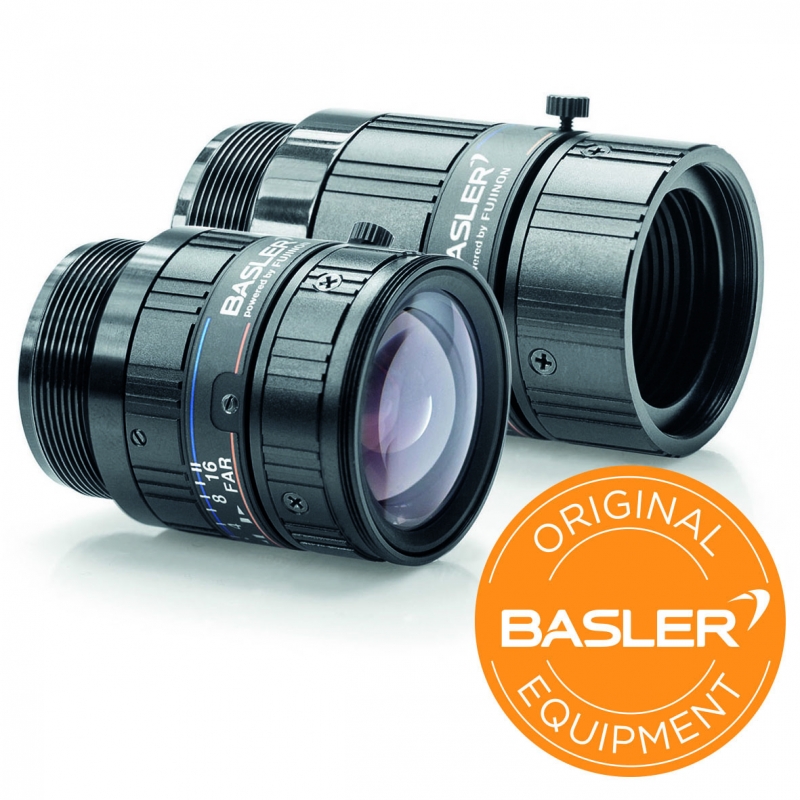

BASLER Lenses

Basler Lenses

Basler Lenses

  • designed and tested for the most demanding applications
  • best quality: very high resolution, low distortion, low vignetting
  • still cost-optimized
  • optimal for cameras with very high resolutions for the analysis of the smallest structures
Model Max. Image Circle Focal length(mm) Range of WD F No. TV Distortion Angle of view
horizontal / vertical 1/3”
Angle of view
horizontal / vertical 1/2.5”
Mount

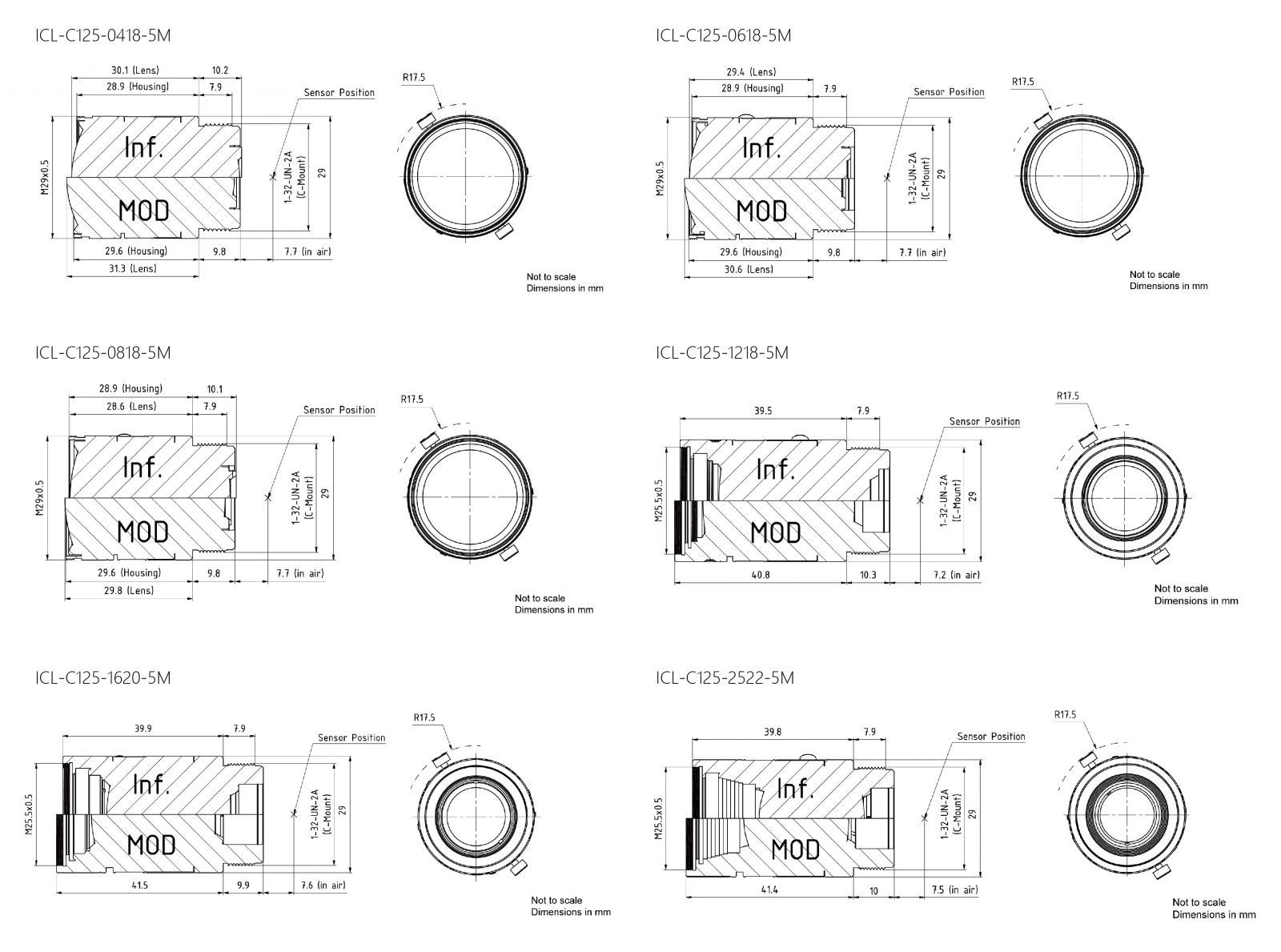

ICL-C125-0418-5M 1/2.5" (7.3 mm) 4 0.1m ~ ∞ 1.8-22 -5.9% 66.0°x49.9° 76.4°x58.5° C-mount
ICL-C125-0618-5M 1/2.5" (7.3 mm) 6 0.1m ~ ∞ 1.8-22 -3.3% 45.5°x34.1° 53.1°x40.1° C-mount
ICL-C125-0818-5M 1/2.5" (7.3 mm) 8 0.1m ~ ∞ 1.8-22 -1.6% 33.9°x25.4° 39.6°x29.9° C-mount
ICL-C125-1218-5M 1/2.5" (7.3 mm) 12 0.2m ~ ∞ 1.8-22 -0.7% 23.1°x17.2° 27.0°x20.3° C-mount
ICL-C125-1620-5M 1/2.5" (7.3 mm) 16 0.2m ~ ∞ 2.0-22 -0.3% 17.3°x12.9° 20.3°x15.3° C-mount
ICL-C125-2522-5M 1/2.5" (7.3 mm) 25 0.2m ~ ∞ 2.2-22 -0.2% 11.1°x8.3° 13.0°x9.8° C-mount
