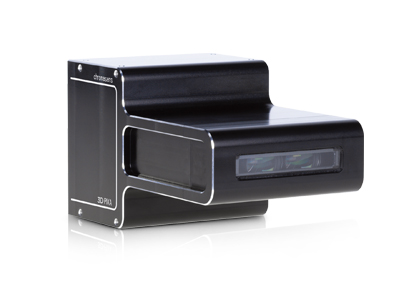

3DPIXA STEREO LINE SCAN CAMERA

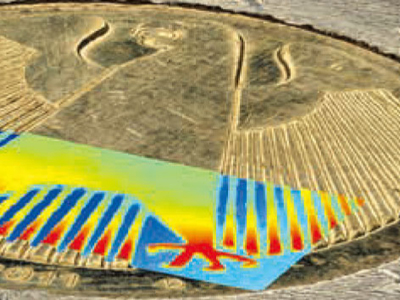

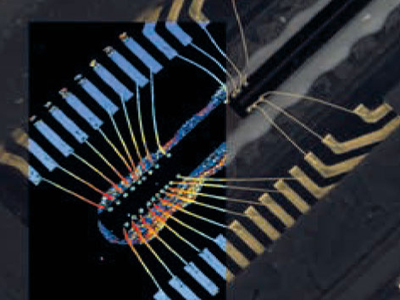

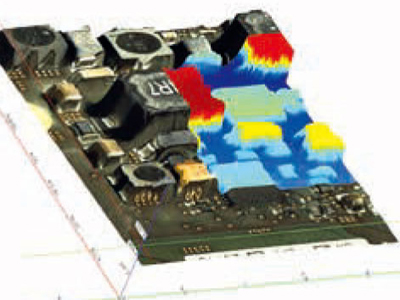

The Chromasens 3D line scan camera 3DPIXA enables 3D inspection applications and 3D measurement techniques with high resolution. With a unique combination of line scan camera technology and fast 3D stereo calculation, the camera simultaneously delivers 3D data and color images.

3D applications can be created directly with the support of common image processing libraries. With the easy-to-integrate Chromasens 3D API, 3DPIXA images and 3D data are also available for any other Windows software environment.

Adequate illumination is a prerequisite for optimum 3D results. In order to select the most suitable illumination for an application, the entire range of corona illuminations is available.

Unique features of the 3DPIXA Technology

• High speed inline 3D measurement
• Large field of view @ high resolution
• Height resolution up to 0.5 micron
• 2D resolution up to 2.5 micron

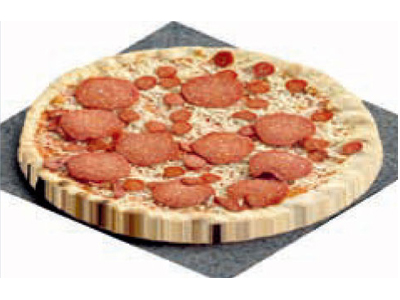

• 3D data and full color image in one scan
• Line scan frequencies up to 30 kHz @ full resolution
• Flexible use of all types of line illuminations
• Easy to use application programming interface (API)
• Integrated in standard machine vision libraries
