Heliotis 3D Industrial Camera
heliInspect™H9

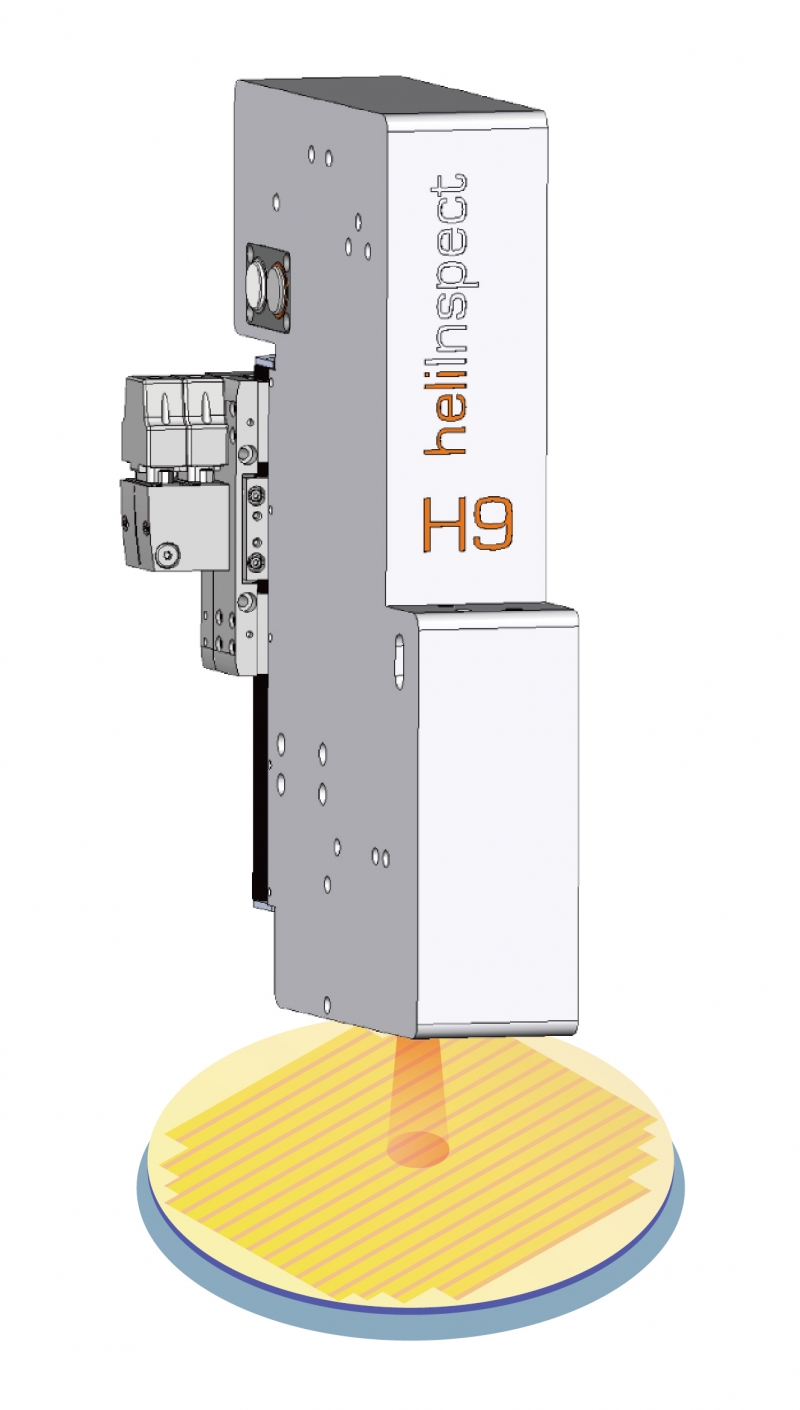

heliInspect™ H9 – Industrial WLI
Large measuring fields
- available for 6 field of views [mm x mm]
- 26.1 x 24.6, 16.3 x 15.4, 13.0 x 12.3, 8.7 x 8.2, 6.5 x 6.1, 4.3 x 4.1
- topology measurement with reliable sub-micrometer resolution
- based on the latest 3D pixel sensor heliSens™ S4H
- unsurpassed measurement speed and resolution
- robust measurements thanks to high dynamic range

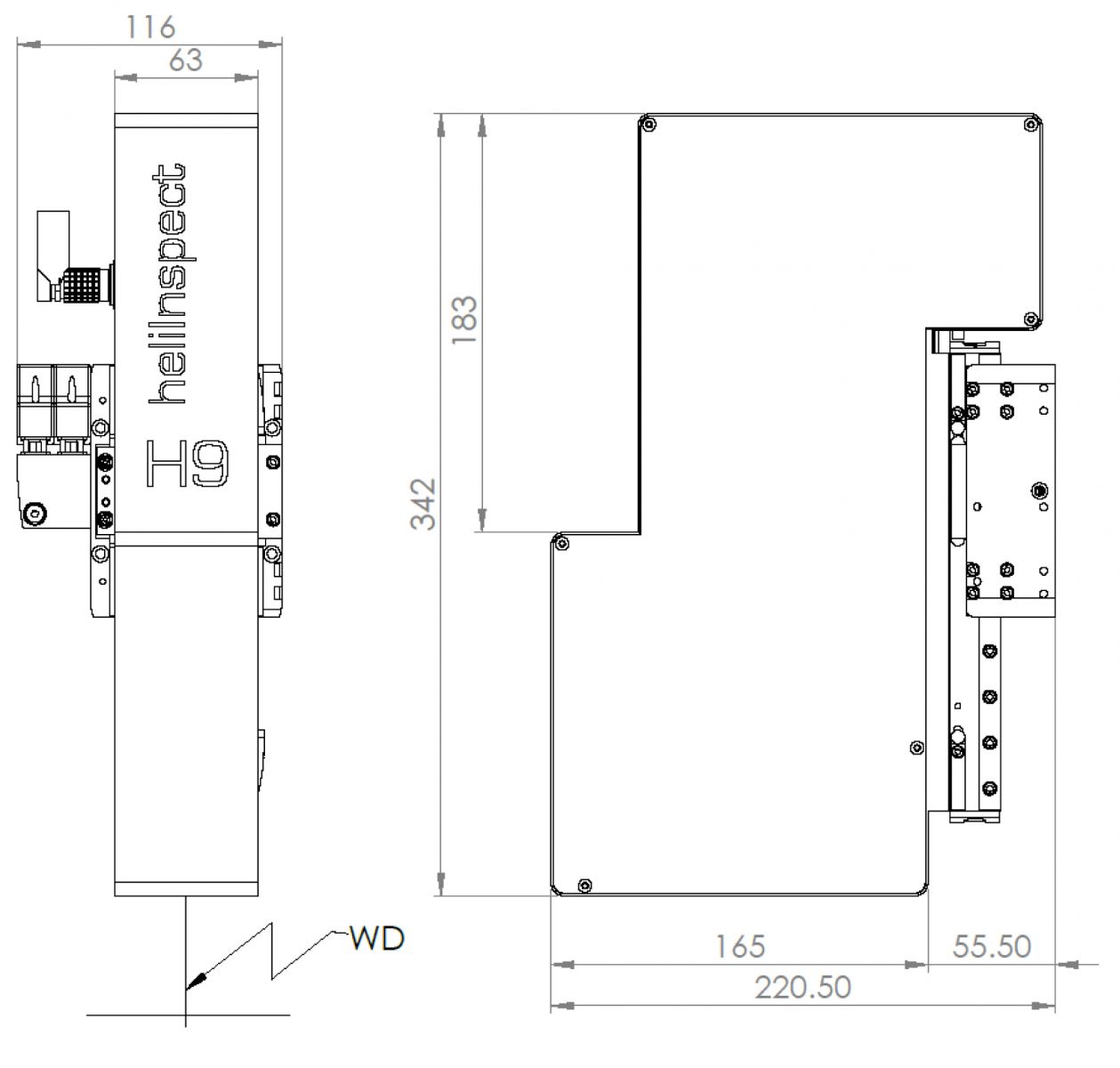

Long working distances
- 49 – 51 mm in standard version H9S
- 110 – 113 mm in version H9L
Easy integration into the line
- standard GenICam Interface
- standard routines are already implemented on the camera
- multiple configurations for cables and fastening
Software
- compatible with standard applications supporting GenICam
- heliSDK™ with examples for Halcon, C++, LabVIEW, Python

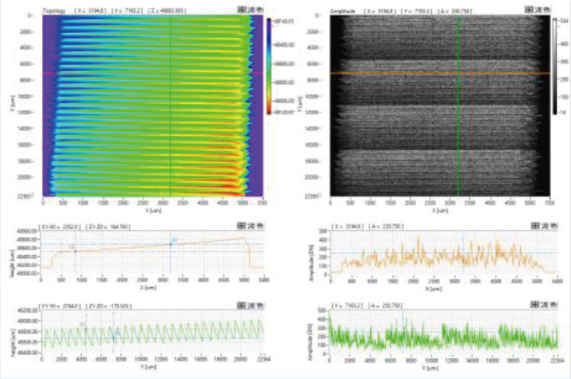

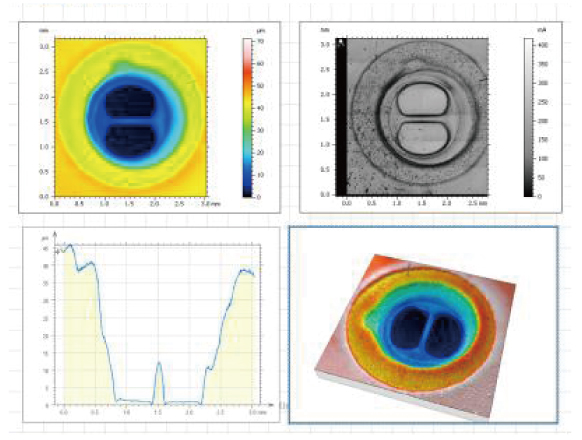

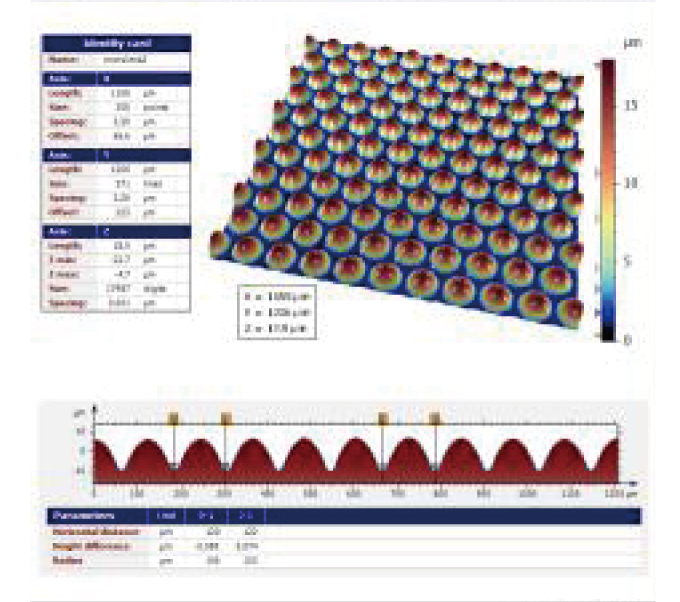

Applications
| H9 L | ||||
| Measurement principle | White-Light Interferometer (industrial grade WLI) | |||
| Magnification | 2x | 1x | 0.8x | 0.5x |
| Field of View[mm x mm] | 6.14 x6.53 | 12.29 x13.06 | 15.36 x16.32 | 24.58 x26.11 |
| Lateral Resolution [um] | 12 | 24 | 30 | 48 |
| Working Distance [mm] | 110 | 113 | 113 | 113 |
| Numerical Aperture | 0.11 | 0.067 | 0.053 | 0.033 |
| H9 S | ||||||
| Measurement principle | White-Light Interferometer (industrial grade WLI) | |||||
| Magnification | 3x | 2x | 1.5x | 1x | 0.8x | 0.5x |
| Field of View[mm x mm] | 4.10 x 4.35 | 6.14 x6.53 | 8.19 x8.70 | 12.29 x13.06 | 15.36 x16.32 | 24.58 x26.11 |
| Lateral Resolution [um] | 8 | 12 | 16 | 24 | 30 | 48 |
| Working Distance [mm] | 49 | 49 | 51 | 51 | 51 | 51 |
| Numerical Aperture | 0.15 | 0.13 | 0.10 | 0.067 | 0.053 | 0.033 |
