BASLER Areascan Industrial Camera

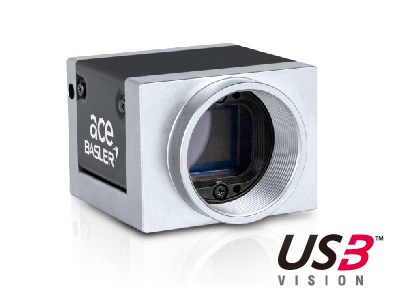

ace L-USB3.0 Industrial Camera
ace L-USB3.0 Industrial Camera
The ace L product line offers ace models with the high-resolution 9 and 12 MP sensors up to 1.1" from the Sony Pregius series. ace L also have the unique Feature Set PGI from Basler.
- Large 9 and 12 MP Sony Pregius CMOS
- sensors up to 1.1”: IMX253, IMX255, IMX267, IMX304
- Brilliant image quality at speeds of up to 40 fps
- Includes high value-add features (e.g. PGI)
- GigE Vision 2.0 and USB3 Vision compliant
| 產品型號 | 解析度 | 取像速度FPS | 像素尺寸(µm) | Sensor Type | Sensor Size | 快門 | Mount |
|---|---|---|---|---|---|---|---|
| ICDA-acA4096-30um/uc | 4096x2160 | 30 | 3.45 x 3.45 | IMX267 | 1” | CMOS, Global Shutter | C |
| ICDA-acA4096-40um/uc | 4096x2160 | 40 | 3.45 x 3.45 | IMX255 | 1” | CMOS, Global Shutter | C |
| ICDA-acA4112-20um/uc | 4096x3000 | 20 | 3.45 x 3.45 | IMX304 | 1.1” | CMOS, Global Shutter | C |
| ICDA-acA4112-30um/uc | 4096x3000 | 30 | 3.45 x 3.45 | IMX253 | 1.1” | CMOS, Global Shutter | C |
