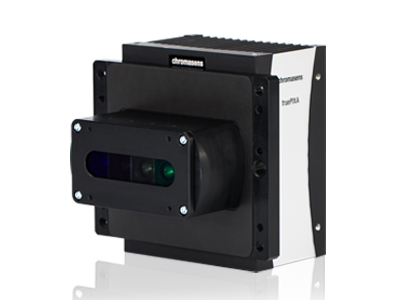

Multi-Spectral Camera truePIXA compact

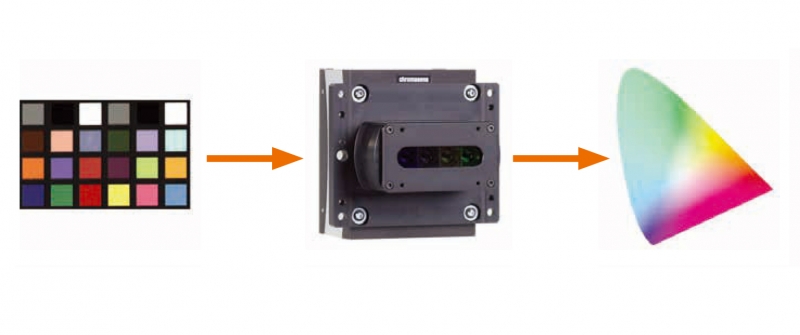

Add a new dimension to multispectral imaging with the truePIXA camera. It offers a combination of high speed and spectral color measurement for each pixel to permit color measurement on two-dimensional objects, especially for print inspection. It captures the spectral footprint of images in full size and applies to on- and off-line imaging.

Key Features

• High speed line scan technology
• 12 image channels with distinct spectral content
• Allows measurements on RGB, CIE-L*a*b* and spectral reflectance
• High stability and excellent repeatability
• Real time color measurement
• Chromasens Chromantis software
• User interface for image acquisition
• Spectral and color data visualization
• Basic data analysis
• Data import and export
• User friendly application programming interface (API)
• Combined with Chromasens Corona II D50 illumination, truePIXA cameras achieve high accuracy color measurement
