IP67 Cameras

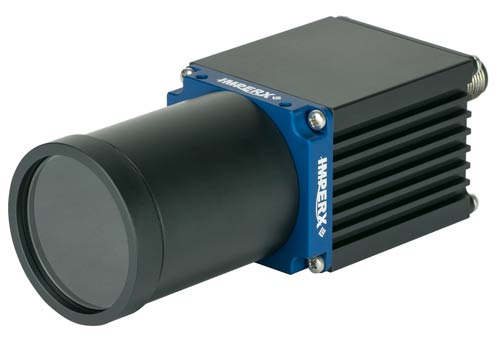

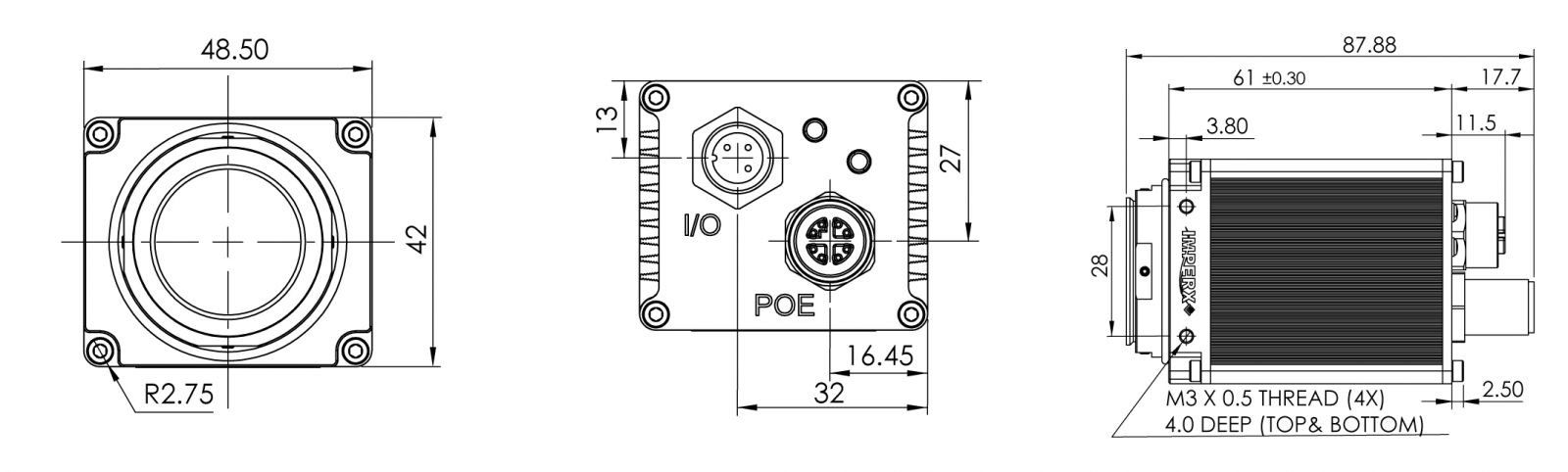

Exceptional imaging performance. IP67-rated housing for demanding industrial applications. Lightweight and compact 42 x 48 mm size. GEV with PoE and GenICam-compliant PoE machine vision camera designed for harsh environments with a wide temperature range.

IP67-rated Protection

​As defined by international standard IEC 60529, “IP” or “Ingress Protection” is a world-wide standard of rating levels used to classify an object’s degree of defense from intrusion of fluids and solids. Designed for use across all industries and in harsh environments, Imperx Cheetah IP67 models feature IP67 protective housing which allows the camera to be well-protected from solid particles including dust, dirt and sand.

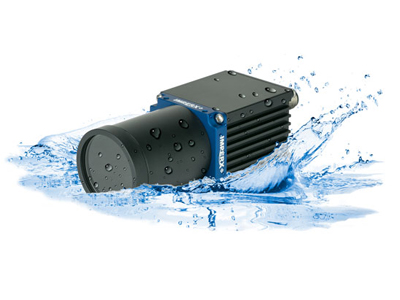

Our line of IP67 cameras also provide protection against water ingress for 30 minutes in levels up to 1 meter in depth. The cameras’ robust M12 Ethernet connectors provide increased resistance to shock and vibration. This provides the user with long-term camera durability along with exceptional imaging performance in harsh, demanding industrial environments without the need for additional enclosures. For added protection, lens tubes can be utilized for dust proof and water-resistant functionality. Imperx offers IP67 lens tubes of different diameters to be used with varying lens sizes to suit your specific requirements.

​The Imperx Cheetah IP67 CMOS cameras feature GigE Vision® with Power over Ethernet interface and are 100% compliant with the GigE Vision® standard. This interface reduces the need for extra cables by enabling the camera to get its power over the data cable which can reach 100m in length for simplified installation and maintenance.
